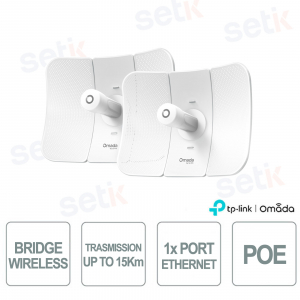

Omada Beam Bridge 5 UR KIT Wireless Bridge 5GHz 867Mbps, PtP up to 15 km, 23 dBi Antennas, PoE Gigabit, IP65 Outdoor

Omada Beam Bridge 5 UR KIT Wireless Bridge 5GHz 867Mbps, PtP up to 15 km, 23 dBi Antennas, PoE Gigabit, IP65 Outdoor

Neu

Beam Bridge 5 UR KIT is a professional 5 GHz wireless bridge designed for long-distance point-to-point connections up to 15 km , ideal for connecting networks between buildings, industrial sites, rural areas or remote infrastructures. Thanks to Wi-Fi technology up to 867 Mbps with 802.11ac standard and 23 dBi high-gain directional antennas , it guarantees stable and low-latency transmissions even over long distances. The kit is pre-configured Plug & Play with PtP auto-pairing , allowing immediate installation without complex configurations. It has a Gigabit PoE port with 802.3af support and Passive PoE 24/48V , reducing cabling and installation costs. The IP65 weatherproof design with 6 kV lightning protection and operating temperature from -40°C to +70°C makes it perfect for extreme outdoor environments. It also supports remote management via Omada SDN, Web UI or App for centralized network monitoring and configuration. Omada

Technical Data Sheet

Artikel-Nr.: Beam Bridge 5 UR KIT

Marke: OMADA

EAN: 1210002603782

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Ein Schlüsselaspekt von OMADA ist die Fähigkeit, eine zentrale Verwaltung anzubieten. Dies kann über einen dedizierten Hardware-Controller, einen Software-Controller oder den Omada SDN-Cloud-Service erfolgen, der eine zentralisierte Verwaltung von Netzwerken ermöglicht. Die angebotenen Lösungen sind skalierbar und flexibel, so dass sie sich sowohl für kleine Unternehmensnetzwerke als auch für große Implementierungen an mehreren Standorten eignen.

OMADA umfasst Wireless-Lösungen mit leistungsstarken Wi-Fi-Zugangspunkten, die eine zuverlässige Hochgeschwindigkeitsabdeckung gewährleisten. Darüber hinaus bietet das Unternehmen verwaltete Switches und Gateway-Router mit fortschrittlichen Funktionen für Datenverkehrsmanagement, Sicherheit und Quality of Service (QoS).

Sicherheit ist eine weitere Stärke der OMADA-Lösungen, die fortschrittliche Funktionen wie Firewalls, VPNs und Zugriffskontrolle zum Schutz von Unternehmensnetzwerken umfassen. Darüber hinaus ermöglicht die Cloud-Plattform von OMADA die Fernkonfiguration und -überwachung von Netzwerken und bietet damit große Flexibilität beim IT-Management.

Für Unternehmen bietet OMADA eine Lösung, mit der die Betriebskosten durch ein zentrales Management gesenkt und die Netzwerkwartung vereinfacht werden kann. Hochwertige Hardware-Komponenten sorgen für eine stabile und zuverlässige Leistung, während intuitive Schnittstellen und Management-Tools die Netzwerkadministration auch für technisch nicht versiertes Personal erleichtern.

Zu den Kernprodukten von OMADA gehören Access Points für den Innen- und Außenbereich mit fortschrittlichen Technologien wie Wi-Fi 6, verwaltete Switches mit Layer 2- und Layer 3-Funktionen sowie Sicherheits- und Routing-Geräte für die Verwaltung des Netzwerkverkehrs und den Schutz vor Bedrohungen. OMADA-Lösungen werden häufig in Unternehmen zur Verwaltung interner Netzwerke, in Schulen und Universitäten zur Bereitstellung von Wi-Fi-Verbindungen für Studenten und Mitarbeiter und in Hotels zur Bereitstellung einer stabilen und schnellen Internetverbindung für Gäste eingesetzt.

[short_description] =>

Tp-Link Omada

OMADA ist eine Marke von TP-Link für Netzwerkmanagement-Lösungen für Unternehmen. Das OMADA-System umfasst sowohl Hardware als auch Software zur Zentralisierung der Verwaltung von drahtlosen Netzwerken, Switching und Gateways. Dieser Ansatz wurde entwickelt, um die Kontrolle und Verwaltung von Netzwerkinfrastrukturen zu verbessern, insbesondere in Unternehmensumgebungen.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


Beam Bridge 5 UR KIT | ACCESS POINT DESKTOP WI-FI 6 AX3000


Made Omada

The TP-Link Omada Beam Bridge 5 UR KIT is a professional 5 GHz wireless bridge designed for ultra-long distance point-to-point connections up to 15 km , ideal for connecting buildings, industrial sites or remote areas where it is not possible to wire the network. Thanks to Wi-Fi technology up to 867 Mbps with 802.11ac standard and 23 dBi high-gain directional antennas , it guarantees stable and low-latency transmissions even over long distances. The kit is preconfigured Plug & Play with PtP auto-pairing , allowing quick installation without complex configurations. The presence of a Gigabit PoE port with 802.3af support and Passive PoE 24/48V simplifies wiring and power supply via a single cable. The IP65 weatherproof design with 6 kV lightning protection and operation from -40°C to +70°C makes it perfect for outdoor installations. It also supports remote management via Omada SDN, Web UI or App for centralized network monitoring and configuration.

Main specifications:

- 5 GHz wireless bridge up to 867 Mbps with 802.11ac standard

- Point-to-point connection up to 15 km with 23 dBi directional antennas

- Plug & Play pre-configured kit with PtP auto-pairing

- Gigabit Ethernet port with 802.3af PoE power supply and 24/48V Passive PoE

- IP65 weatherproof construction with 6kV lightning protection

- Remote management via Omada SDN, Web interface or App

Further details

Long-range wireless transmissions up to 15km:
The bridge uses 5 GHz wireless technology with 802.11ac standard up to 867 Mbps and 23 dBi high-gain directional antennas , ensuring stable point-to-point connections, low latency and ultra-long range coverage ideal for connecting buildings, industrial sites or remote areas that are difficult to wire.
Intuitive installation with pre-configured Plug & Play kit:
The system comes as a pre-configured kit with automatic PtP auto-pairing , allowing you to instantly activate the wireless connection simply by powering the devices, without complex configurations or advanced networking skills.
Remote alignment with the Omada app:
Thanks to the App-Guided Alignment function, the Omada app allows you to view the signal strength in real time , facilitating the precise alignment of the antennas even over long distances and ensuring optimal transmission performance and stable connection .
Easy installation with PoE power supply:
The presence of a Gigabit Ethernet port with PoE 802.3af and Passive PoE 24/48V support allows power and data to be transmitted via a single network cable , reducing installation time, cabling and implementation costs.
Designed for outdoor and extreme environments:
The IP65 weatherproof design, with lightning protection up to 6 kV and operating temperature from -40°C to +70°C , ensures reliability and continuity of service even in severe climatic conditions .
Centralized remote monitoring and management:
The device supports management via Omada SDN, Web interface or App , allowing remote network configuration, monitoring and diagnostics , ideal for distributed wireless infrastructures and professional installations.

Technical data sheet

Model Beam Bridge 5 UR KIT
HARDWARE FEATURES
Interface 1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In
Key 1 × Reset Button
1 × System Mode Selection Button
DIP Switch Role Switch
Diet 802.3af PoE (1.2pins; 3.6pins)
24V or 48V Passive PoE (+4.5pins; -7.8pins) (Passive PoE Adapter Included)
Energy consumption 15.8W
Dimensions (L x W x H) 14.4 × 11.0 × 8.1 in (366 × 280 × 207 mm)
Antenna External 2×2 Dual-Polarized Directional MIMO Antennas
5 GHz: 23 dBi
Emission pattern width Horizontal: 9°, Vertical: 7°
Weatherproof Enclosure IP65
Bandwidth 5 GHz: 20 MHz/40 MHz/80 MHz
Mounting type Pole Mounting (Kits Included)
WIRELESS FEATURES
PtP Yes
Transmission Distance 15 km (9.3 mi)
Wireless standards IEEE 802.11 a/n/ac
Frequency 5 GHz
Signal rate 5 GHz: Up to 867 Mbps
Wireless functionality MU-MIMO: 5G 2x2 MU-MIMO DL
Maximum number of associated STAs: 8
Speed Test
Channel Optimization
Antenna Alignment
ACS (Automatic Channel Selection)
Rate Limit
Guest Network

Wireless security VLAN
Rogue AP Detection
Maximum number of MAC Filter: 4,000
Wireless Encryption
Transmission power THERE IS:
<23 dbm="" 5="" ghz="" u-nii-1="" 2a="" erip="" br=""> <30 dbm="" 5="" ghz="" u-nii-1="" 2c="" erip="" br=""> FCC:
<27 dbm="" 5="" ghz="" u-nii-1="" br=""> <27 dbm="" 5="" ghz="" u-nii-3="" td="">
MANAGEMENT
Omada App Yes
Restore & Backup Yes
Firmware update via Web Yes
NTP Yes
Centralized Management Omada Central (Cloud-Based)
Omada Hardware Controller
Omada Software Controller
Cloud Access Yes. Requires the use of an Omada Controller.
Email alerts Yes
LED ON/OFF Yes
SNMP Yes
SSH Yes
Web-based management Yes
Zero-Touch Provisioning Yes
OTHER
Certification

CE, FCC, RoHS

Package Contents

Beam Bridge 5 UR KIT
Installation Guide
Mounting Kit
Passive PoE Adapter
Power Cord

System requirements

Ethernet Ports: ±6 kV

Environment

Operating Temperature: -40°C–70°C (-40°F–158°F);
Storage Temperature: -40–70℃ (-40–158℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Weight

1.1 kg (2.43 lb)
