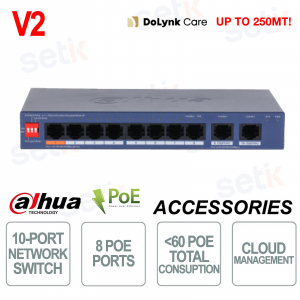

Cloud Managed PoE Switch 10 Gigabit Ports 60W Hi-PoE VLAN STP 250m Remote Management - Dahua

Cloud Managed PoE Switch 10 Gigabit Ports 60W Hi-PoE VLAN STP 250m Remote Management - Dahua

 
-56% nuevo

CS4010-8GT-60-V2 It is a professional Cloud Managed solution with 10 Gigabit ports , including 8 PoE ports and 2 uplinks , designed to ensure high performance and simplified management in business environments. It offers PoE power up to 60W with Hi-PoE support , transmission up to 250 meters , and advanced functions such as PoE Watchdog, VLAN, STP/RSTP and Link Aggregation for a stable and secure network. Management is optimized via cloud and web control with real-time monitoring , while the metal design ensures reliability with surge protection up to 6kV and operation from -10°C to +55°C . Ideal for video surveillance and IT networks, it integrates automatic configuration and intelligent topology to reduce maintenance costs. Dahua

Technical Data Sheet

referencia : CS4010-8GT-60-V2

brand : Dahua

EAN: 6937552480339

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CS4010-8GT-60-V2 | 10 PORT CLOUD MANAGED NETWORK SWITCH WITH 8 POE PORTS - DAHUA


Dahua

The Dahua CS4010-8GT-60 V2 switch is an advanced solution for professional networks with cloud and web management , ideal for video surveillance systems and modern IT infrastructures. Equipped with 10 Gigabit ports with 8 PoE ports , it offers power up to 60W with Hi-PoE support and transmission up to 250 meters , ensuring flexibility and high performance. It integrates intelligent functions such as PoE Watchdog, VLAN, STP/RSTP and Link Aggregation for a stable and secure network, as well as real-time monitoring via the cloud platform. The rugged design with surge protection and wide temperature range ensures reliability even in critical environments.

Main specifications:

- 10 Gigabit ports (8 PoE + 2 uplink)

- Total PoE power 60W with Hi-PoE on dedicated port

- PoE transmission up to 250 meters

- Cloud and web management with real-time monitoring

- VLAN, STP, RSTP and Link Aggregation support

- PoE Watchdog function for automatic port reboot

- Surge protection up to 6kV

- Operating temperature from -10°C to +55°C

Further details

✅ Number of doors:
The switch integrates 10 Gigabit RJ-45 ports , including 8 PoE ports and 2 uplink ports , ideal for connecting network devices and video surveillance systems, ensuring high speed and centralized power supply on a single infrastructure.
✅ Cloud Management:
Thanks to cloud management via the DoLynk Care platform , it enables real-time monitoring , error notifications and complete remote control of the network, improving operational efficiency and maintenance.
✅ Network Topology Management:
It supports LLDP protocol for network topology visualization , allowing you to quickly identify problems and manage devices remotely with greater accuracy and control.
✅ Hi-PoE 60W (Orange Port):
A dedicated port provides up to 60W Hi-PoE power , ideal for powering high-drain devices like PTZ cameras, plus IEEE 802.3af/at support on all ports.
✅ Long Distance PoE :
Advanced technology that allows PoE transmission up to 250 meters , perfect for large installations while maintaining stability, even with bandwidth reduction to 10 Mbps .
✅ PoE Watchdog :
Intelligent function that automatically monitors the status of PoE ports and restarts non-functioning ones, ensuring business continuity and reducing manual intervention .
✅ Performance :
 It offers high performance with 20 Gbps switching capacity and 14.88 Mpps forwarding rate , ensuring fast, stable and reliable data transmission even in complex networks.
CS4010-8GT-60-V2 dimensions

Technical data sheet

PRODUCT CS4010-8GT-60-V2
Basic
Layer Layer 2
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
Description of Function Slots Port 1-8: 8 × RJ45 10/100/1000 Mbps (PoE))
Port 9-10: 2 × RJ45 10/100/1000 Mbps (uplink)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –40 °C to +75 °C (–40 °F to +167 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External Power Adapter（54V, 1.22A）
Power Consumption Idling: 4 W
Full load: 63 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 6 kV;
Differential mode: 1 kV
Net Weight 0.36 kg (0.79 lb)
Gross Weight 1.13 kg (2.49 lb)
Product Dimensions 184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") (L × W × H)
Packaging Dimensions 252 mm × 137 mm × 113 mm (9.92" × 5.39" × 4.45") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; wall mount
Certifications THERE IS
PoE
PoE Yes
PoE Power Port 2-8≤30W, port 1≤60W, total≤60W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE
PoE Power Consumption Management PoE power consumption management
PoE power on/off
turns off PoE if overload is detected
PoE Pin Assignment 1,2, (V+), 3,6, (V-)
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
Reset Button 1
Performance
MTBF 2,482,955 hours
Packet Buffer Size 4 Mbit
Jumbo Frame 15360 Bytes
MAC Table Size 8K
Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az
VLAN Number 32
Feature
Ethernet Loop Protection STP; RSTP
VLAN Function IEEE 802.1Q VLAN
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Rack-mounting Kit
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
