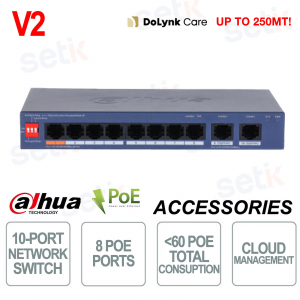

CS4010-8GT-60-V2 It is a professional Cloud Managed solution with 10 Gigabit ports , including 8 PoE ports and 2 uplinks , designed to ensure high performance and simplified management in business environments. It offers PoE power up to 60W with Hi-PoE support , transmission up to 250 meters , and advanced functions such as PoE Watchdog, VLAN, STP/RSTP and Link Aggregation for a stable and secure network. Management is optimized via cloud and web control with real-time monitoring , while the metal design ensures reliability with surge protection up to 6kV and operation from -10°C to +55°C . Ideal for video surveillance and IT networks, it integrates automatic configuration and intelligent topology to reduce maintenance costs. Dahua

Technical Data Sheet

Reference: CS4010-8GT-60-V2

Brand: Dahua

EAN: 6937552480339

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CS4010-8GT-60-V2 | 10 PORT CLOUD MANAGED NETWORK SWITCH WITH 8 POE PORTS - DAHUA


Dahua

The Dahua CS4010-8GT-60 V2 switch is an advanced solution for professional networks with cloud and web management , ideal for video surveillance systems and modern IT infrastructures. Equipped with 10 Gigabit ports with 8 PoE ports , it offers power up to 60W with Hi-PoE support and transmission up to 250 meters , ensuring flexibility and high performance. It integrates intelligent functions such as PoE Watchdog, VLAN, STP/RSTP and Link Aggregation for a stable and secure network, as well as real-time monitoring via the cloud platform. The rugged design with surge protection and wide temperature range ensures reliability even in critical environments.

Main specifications:

- 10 Gigabit ports (8 PoE + 2 uplink)

- Total PoE power 60W with Hi-PoE on dedicated port

- PoE transmission up to 250 meters

- Cloud and web management with real-time monitoring

- VLAN, STP, RSTP and Link Aggregation support

- PoE Watchdog function for automatic port reboot

- Surge protection up to 6kV

- Operating temperature from -10°C to +55°C

Further details

Number of doors:
The switch integrates 10 Gigabit RJ-45 ports , including 8 PoE ports and 2 uplink ports , ideal for connecting network devices and video surveillance systems, ensuring high speed and centralized power supply on a single infrastructure.
Cloud Management:
Thanks to cloud management via the DoLynk Care platform , it enables real-time monitoring , error notifications and complete remote control of the network, improving operational efficiency and maintenance.
Network Topology Management:
It supports LLDP protocol for network topology visualization , allowing you to quickly identify problems and manage devices remotely with greater accuracy and control.
Hi-PoE 60W (Orange Port):
A dedicated port provides up to 60W Hi-PoE power , ideal for powering high-drain devices like PTZ cameras, plus IEEE 802.3af/at support on all ports.
Long Distance PoE :
Advanced technology that allows PoE transmission up to 250 meters , perfect for large installations while maintaining stability, even with bandwidth reduction to 10 Mbps .
PoE Watchdog :
Intelligent function that automatically monitors the status of PoE ports and restarts non-functioning ones, ensuring business continuity and reducing manual intervention .
Performance :
It offers high performance with 20 Gbps switching capacity and 14.88 Mpps forwarding rate , ensuring fast, stable and reliable data transmission even in complex networks.
CS4010-8GT-60-V2 dimensions

Technical data sheet

PRODUCT CS4010-8GT-60-V2
Basic
Layer Layer 2
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
Description of Function Slots Port 1-8: 8 × RJ45 10/100/1000 Mbps (PoE))
Port 9-10: 2 × RJ45 10/100/1000 Mbps (uplink)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –40 °C to +75 °C (–40 °F to +167 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External Power Adapter(54V, 1.22A)
Power Consumption Idling: 4 W
Full load: 63 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 6 kV;
Differential mode: 1 kV
Net Weight 0.36 kg (0.79 lb)
Gross Weight 1.13 kg (2.49 lb)
Product Dimensions 184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") (L × W × H)
Packaging Dimensions 252 mm × 137 mm × 113 mm (9.92" × 5.39" × 4.45") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; wall mount
Certifications THERE IS
PoE
PoE Yes
PoE Power Port 2-8≤30W, port 1≤60W, total≤60W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE
PoE Power Consumption Management PoE power consumption management
PoE power on/off
turns off PoE if overload is detected
PoE Pin Assignment 1,2, (V+), 3,6, (V-)
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
Reset Button 1
Performance
MTBF 2,482,955 hours
Packet Buffer Size 4 Mbit
Jumbo Frame 15360 Bytes
MAC Table Size 8K
Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az
VLAN Number 32
Feature
Ethernet Loop Protection STP; RSTP
VLAN Function IEEE 802.1Q VLAN
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Rack-mounting Kit
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
