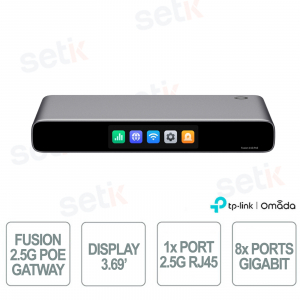

TP-Link Omada Fusion 2.5G PoE Gateway 8 PoE+ 110W SD-WAN Controller

TP-Link Omada Fusion 2.5G PoE Gateway 8 PoE+ 110W SD-WAN Controller

nuevo

Fusion 2.5G PoE is an enterprise gateway with an integrated Omada controller , designed to centralize management, security and multi-site connectivity without cloud licensing costs. It integrates 9 2.5G RJ45 ports , 8 of which with PoE+ and a total budget of up to 110W , a Quad-Core CPU and support for up to 8 simultaneous WANs with load balancing and automatic failover. It offers IDS/IPS up to approximately 2.1 Gbps , DPI, Full-Mesh SD-WAN , Omada LightLink VPN and numerous VPN protocols. The 3.69" color touchscreen , Bluetooth configuration and management via the Omada App simplify installation, diagnostics and control of the professional network. Omada

Technical Data Sheet

referencia : Fusion 2.5G PoE

brand : OMADA

EAN: 1210002636056

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


Fusion 2.5G PoE | FUSION 2.5G PoE GATEWAY


Made Omada

The TP-Link Omada Fusion 2.5G PoE is an enterprise gateway with an integrated Omada controller that centralizes networking, security, and multi-site management with cloud control and no license fees. It integrates 9 2.5G RJ45 ports , including 8 PoE+ ports with a total power budget of 110W , a Quad-Core CPU , and support for up to 8 simultaneous WANs with load balancing and automatic failover. It offers IDS/IPS up to approximately 2.1 Gbps , DPI, Full-Mesh SD-WAN , Omada LightLink VPN, and numerous VPN protocols. The 3.69" color touchscreen , Bluetooth setup, and management via the Omada App simplify configuration, monitoring, and troubleshooting.

Main specifications:

  • Controller: Integrated Omada
  • Ports: 9× 2.5G RJ45
  • PoE+: 8 ports, 110W
  • WAN: up to 8 simultaneous
  • CPU: Quad-Core
  • Security: IDS/IPS + DPI
  • VPN: LightLink, WireGuard, IPsec
  • SD-WAN: Full-Mesh
  • Display: 3.69" touchscreen

Further details

Cloud management without licensing costs:
The integrated Omada controller allows you to use management features from the first start-up without additional licenses , with centralized multi-site control and remote access via Omada Cloud, web interface and Omada App .
Simplified setup:
Onboarding via Bluetooth and the Omada App allows you to quickly set up the gateway, automatically discover Omada devices, and proceed with multi-deployment in one step ; PoE+ ports also help simplify cabling.
Enterprise-level performance:
It integrates a Quad-Core CPU , 9 2.5G RJ45 ports , including 8 PoE+ with a total budget of 110W , and supports up to 8 simultaneous WANs with load balancing and automatic failover, as well as 2.1 Gbps class IDS/IPS for high-performance professional networks.
Quick troubleshooting:
The 3.69" color touchscreen displays network status, speed tests, alerts, and real-time traffic right on the device , making it easier to diagnose and troubleshoot problems and reducing the need for on-site visits.
Secure remote network access:
Supports Omada LightLink VPN for simplified and secure remote access, along with WireGuard, OpenVPN, IPsec, SSL, L2TP and PPTP , Smart Split Tunneling and Full-Mesh SD-WAN connectivity for up to 20 sites .
Advanced software features:
It offers application- and category-based ACLs , QoS for traffic prioritization, Content Filtering , DPI, IDS/IPS, stateful firewall and Secure DNS, enabling advanced network security and performance management.
Flexible installation options:
The compact design supports desktop, wall, or rack mounting , adapting to different professional infrastructures; the magnetic wall mount plate and rack kit are sold separately .

Technical data sheet

Model Fusion 2.5G PoE
Overview
Built-In Omada Applications Network Application
Built-In Omada OS Applications Network Application
Managed Omada Devices Recommended for up to 30 devices§
Client Capacity Recommended for up to 300 connected clients§
Interface
  • 1× 2.5G RJ45 WAN port
  • 8× Gigabit RJ45 LAN/WAN ports
  • 8× PoE+ ports, 110W Total Budget
  • Up to 4 simultaneous WAN ports
IPS Throughput 2,183 Mbps*
Site-to-Site VPN Throughput 1.023 Mbps†
Management Cloud, local, and Omada App management
Mounting
  • Desktop
  • Wall-mount (magnetic-mount plate sold separately)
  • Rack-mount (rackmount kit sold separately)
Dimensions 8.90 × 5.31 × 1.24 in (226 × 135 × 31.5 mm)
Built-in Omada Controller§
Cloud Access
Local Management
Omada App
Multi-Site Management Via the Omada Cloud Management Platform
Restore & Backup
Automatic Device Discovery
Network Topology
Dashboard
Device List / Client List
Logs / Alerts / Events
Batch Firmware Upgrade
Health Monitoring
Internet Activity
Captive Portal
RADIUS / LDAP Authentication
802.1X Authentication
OUI-Based VLAN
Diagnostics Tools Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring
SNMP 1/v2c/v3
SAFETY
IDS/IPS
PPE
Application-Based ACL
Content Filtering
Ad Blocker
Safe Search
DNS Security
Firewall
Attack defense
ARP inspection
VPN & SD-WAN
Omada LightLink VPN

Site-to-Site VPN WireGuard VPN / IPsec VPN
VPN Server WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN
VPN Client WireGuard VPN / OpenVPN / L2TP VPN / PPTP VPN
SD-WAN Full Mesh Mode
VPN Throughput
  • Omada LightLink VPN: 527 Mbps
  • IPsec VPN: 1,023 Mbps
  • WireGuard VPN: 605 Mbps
  • OpenVPN: 223 Mbps
  • L2TP VPN: 892 Mbps
  • PPTP VPN: 193 Mbps
  • SSL VPN: 250 Mbps
Networking
WAN Connection Static IP / Dynamic IP / PPPoE / PPTP / L2TP / MAP-E / DS-Lite
Multi-WAN Failover & Load Balancing
DHCP Server
VLAN Segmentation
Bandwidth Control
QoS
Static Routing
Policy Routing
NAT Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT
Dynamic DNS TP-Link DDNS, 3rd-party DDNS, custom DDNS
IPv6 Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode
Hello / mDNS
IGMP v2/v3 Proxy
HARDWARE
Touch screen 3.69-inch color LCM touchscreen
Button Reset button
Memory 2 GB DDR4
Power Supply 54V DC / 2.43A Adapter
PoE Budget 110W***
Max Power Consumption 131 W, with power adapter
Enclosure Polycarbonate
LED Ethernet
Fan
Net Weight 1.60 lb (728 g)
Surge Protection 4 kV surge protection
ESD Protection ±8 kV (Air), ±4 kV (Contact)
Onboarding Bluetooth or Ethernet
Certifications CE, FCC, RoHS
Environment Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C)
Storage Temperature: -22 °F to 158 °F (-30 °C to 70 °C)
Operating Humidity: 10% to 90% RH, non-condensing
Storage Humidity: 5% to 90% RH, non-condensing
