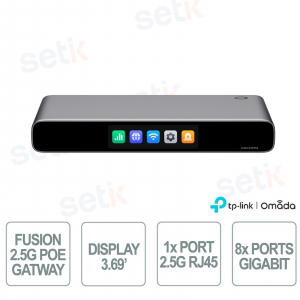

Fusion 2.5G PoE è un gateway enterprise con controller Omada integrato, progettato per centralizzare gestione, sicurezza e connettività multi-sito senza costi di licenza cloud. Integra 9 porte RJ45 2.5G, di cui 8 con PoE+ e budget totale fino a 110 W, una CPU Quad-Core e supporto fino a 8 WAN simultanee con load balancing e failover automatico. Offre IDS/IPS fino a circa 2,1 Gbps, DPI, Full-Mesh SD-WAN, Omada LightLink VPN e numerosi protocolli VPN. Il touchscreen a colori da 3,69", la configurazione Bluetooth e la gestione tramite Omada App semplificano installazione, diagnostica e controllo della rete professionale. Omada
Fusion 2.5G PoE | FUSION 2.5G PoE GATEWAY

Il TP-Link Omada Fusion 2.5G PoE è un gateway enterprise con controller Omada integrato che centralizza rete, sicurezza e gestione multi-sito con controllo cloud senza costi di licenza. Integra 9 porte RJ45 2.5G, di cui 8 PoE+ con budget totale di 110 W, una CPU Quad-Core e supporto fino a 8 WAN simultanee con load balancing e failover automatico. Offre IDS/IPS fino a circa 2,1 Gbps, DPI, Full-Mesh SD-WAN, Omada LightLink VPN e numerosi protocolli VPN. Il touchscreen a colori da 3,69", il setup Bluetooth e la gestione via Omada App semplificano configurazione, monitoraggio e troubleshooting.
Specifiche principali:
- Controller: Omada integrato
- Porte: 9× 2.5G RJ45
- PoE+: 8 porte, 110 W
- WAN: fino a 8 simultanee
- CPU: Quad-Core
- Sicurezza: IDS/IPS + DPI
- VPN: LightLink, WireGuard, IPsec
- SD-WAN: Full-Mesh
- Display: touchscreen 3,69"
Ulteriori dettagli
Scheda tecnica
| Model | Fusion 2.5G PoE |
| Overview | |
| Built-In Omada Applications | Network Application |
| Built-In Omada OS Applications | Network Application |
| Managed Omada Devices | Recommended for up to 30 devices§ |
| Client Capacity | Recommended for up to 300 connected clients§ |
| Interface |
|
| IPS Throughput | 2,183 Mbps* |
| Site-to-Site VPN Throughput | 1,023 Mbps† |
| Management | Cloud, local, and Omada App management |
| Mounting |
|
| Dimensions | 8.90 × 5.31 × 1.24 in (226 × 135 × 31.5 mm) |
| Built-in Omada Controller§ | |
| Cloud Access | √ |
| Local Management | √ |
| Omada App | √ |
| Multi-Site Management | Via the Omada Cloud Management Platform |
| Restore & Backup | √ |
| Automatic Device Discovery | √ |
| Network Topology | √ |
| Dashboard | √ |
| Device List / Client List | √ |
| Logs / Alerts / Events | √ |
| Batch Firmware Upgrade | √ |
| Health Monitoring | √ |
| Internet Activity | √ |
| Captive Portal | √ |
| RADIUS / LDAP Authentication | √ |
| 802.1X Authentication | √ |
| OUI-Based VLAN | √ |
| Diagnostics Tools | Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring |
| SNMP | 1/v2c/v3 |
| SICUREZZA | |
| IDS/IPS | √ |
| DPI | √ |
| Application-Based ACL | √ |
| Content Filtering | √ |
| Ad Blocker | √ |
| Safe Search | √ |
| DNS Security | √ |
| Firewall | √ |
| Attack defence | √ |
| ARP inspection | √ |
| VPN & SD-WAN | |
| Omada LightLink VPN |
√ |
| Site-to-Site VPN | WireGuard VPN / IPsec VPN |
| VPN Server | WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN |
| VPN Client | WireGuard VPN / OpenVPN / L2TP VPN / PPTP VPN |
| SD-WAN | Full Mesh Mode |
| VPN Throughput |
|
| Networking | |
| WAN Connection | Static IP / Dynamic IP / PPPoE / PPTP / L2TP / MAP-E / DS-Lite |
| Multi-WAN Failover & Load Balancing | √ |
| DHCP Server | √ |
| VLAN Segmentation | √ |
| Bandwidth Control | √ |
| QoS | √ |
| Static Routing | √ |
| Policy Routing | √ |
| NAT | Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT |
| Dynamic DNS | TP-Link DDNS, 3rd-party DDNS, custom DDNS |
| IPv6 | Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode |
| Bonjour / mDNS | √ |
| IGMP v2/v3 Proxy | √ |
| HARDWARE | |
| Touchscreen | 3.69-inch color LCM touchscreen |
| Button | Reset button |
| Memory | 2 GB DDR4 |
| Power Supply | 54V DC / 2.43A Adapter |
| PoE Budget | 110W*** |
| Max Power Consumption | 131 W, with power adapter |
| Enclosure | Polycarbonate |
| LED | Ethernet |
| Fan | √ |
| Net Weight | 1.60 lb (728 g) |
| Surge Protection | 4 kV surge protection |
| ESD Protection | ±8 kV (Air), ±4 kV (Contact) |
| Onboarding | Bluetooth or Ethernet |
| Certifications | CE, FCC, RoHS |
| Environment | Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C) Storage Temperature: -22 °F to 158 °F (-30 °C to 70 °C) Operating Humidity: 10% to 90% RH, non-condensing Storage Humidity: 5% to 90% RH, non-condensing |
