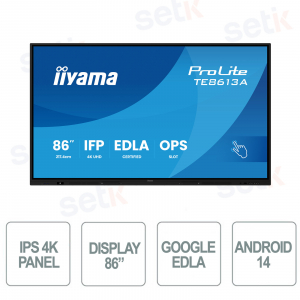

The iiyama ProLite TE8613A-B3AG is an 86-inch 4K UHD interactive display that is Google EDLA certified and designed for classrooms, conference rooms and corporate environments that require advanced collaboration. The IPS Zero-Gap Air Bonding panel with PureTouch-IR+ technology, 40 touch points and Palm Rejection ensures a precise, fluid and natural writing experience. Thanks to Android 14 , iiWare 21E , Wi-Fi 6E , USB-C up to 100W Power Delivery , iiShare and iiControl DMS , it offers seamless integration with Google Workspace and Microsoft 365. The features also include 2×20W speakers with subwoofer , OPS slot , intelligent sensors and reliable operation for continuous professional use.
TE8613A-B3AG – IPS MONITOR 86" 4K UHD IIYAMA PROLITE - PURETOUCH IR+ - RJ45 - ANTI-GLARE - PIR MOTION SENSOR - STANDLONE SOLUTION & CONNECTIVITY
The iiyama ProLite TE8613A-B3AG is an 86-inch 4K UHD interactive display that is Google EDLA certified, ideal for classrooms, conference rooms and corporate environments that require advanced collaboration and content sharing. The Zero-Gap Air Bonding IPS panel with PureTouch-IR+ technology, 40 touch points and Palm Rejection ensures a precise and natural writing experience. Thanks to Android 14 , iiWare 21E , Wi-Fi 6E , USB-C up to 100W Power Delivery , iiShare and iiControl DMS , it offers seamless integration with Google Workspace and Microsoft 365. The features also include 2×20W speakers with subwoofer , OPS slot , intelligent sensors and reliable operation for continuous professional use.
Main features:
- Display: 86" IPS 4K UHD (3840×2160)
- Certification: Google EDLA
- Touch: PureTouch-IR+ with 40 touch points and Palm Rejection
- Operating system: Android 14 with iiWare 21E
- Connectivity: Wi-Fi 6E, Bluetooth 5.0, HDMI, DisplayPort, USB-C up to 100W
- Software: iiShare, iiControl DMS, WhiteBoard
- Audio: 2 x 20W speakers with 20W subwoofer
- Sensors: PIR, ambient light sensor and Pen Pick-up
- Expansion: OPS and NFC slots
- Warranty: 5 years
Further details
Technical data sheet
| Model | TE8613A-B3AG |
| DISPLAY CHARACTERISTICS | |
| Design | Thin bezel |
| Diagonal | 85.6", 217.4cm |
| Panel | IPS |
| Touch Glass | Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero-Gap Air Bonding |
| Native resolution | 3840 x 2160 (8.3 megapixels 4K UHD) |
| Aspect ratio | 16:9 |
| Brightness | 500 cd/m² (typ.) |
| Light transmittance | 88% |
| Static contrast | 1200:1 |
| Response time (MPRT) | 8ms |
| Viewing zone | horizontal/vertical: horizontal°/vertical 178°, right/left: 0°/0°, up/down: 0°/0° |
| Color support | 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%) |
| Horizontal Sync | 30 - 135kHz |
| Viewable area W x H | 1895 x 1066mm, 74.6 x 42" |
| Bezel width (sides, top, bottom) | 16.7mm, 14.1mm, 46.7mm |
| Pixel pitch | 0.493mm |
| Bezel color and finish | black, matte |
| TOUCH | |
| Touch technology | PureTouch-IR⁺ |
| Touch points | 40, 10pt writing (HID, only with supported OS, 32pt Touch with Android) |
| Scan rate | 200Hz |
| Touch response time | 5ms |
| Touch accuracy | +- 1mm |
| Touch method | stylus, finger, glove (Passive pen, Opaque objects) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection | Yes |
| INTERFACES / CONNECTORS / CONTROLS | |
| Digital signal output |
HDMI x2 (v2.0) (H1 CEC/ARC / H2 CEC) |
| Audio input |
Mini jack x1 (Microphone) |
| Monitor control input |
RS-232c x1 (DSUB 9pin) |
| Digital signal output |
HDMI x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444) |
| Audio output |
S/PDIF (Optical) x1 |
| Monitor control output |
OPS Slot x1 (Intel OPS 80pin - When installed: USB-C front: 65W, side: 15W) |
| HDCP | 2.2 |
| USB ports | x6 (media playback / peripherals / storage – front side: 1x USB-C 3.2 (Gen 1, 5Gbit, 100W PD), 2x 3.2 (Gen 1, 5Gbit), side: 1x USB-C 2.0 (480 Mbps, 65W PD), 1x 2.0 (480Mbps), 1x 3.2 (Gen 1, 5Gbit)) |
| RJ45 (LAN) | x2 (IN / OUT, Auto switch for PC & Android, 1000MB) |
| FEATURES | |
| Integrated software | iiWare 21E (Android 14 OS, Android 16 summer 2026) featuring Google EDLA, iiControl (DMS), WhiteBoard, web browser, file manager, cloud drives and iiShare for wireless connection with Windows/iOS/Android devices |
| WiFi | yes (WiFi-6E, Bluetooth 5.0) |
| Hardware | SOC: RK3576 Octa-core A72*4 + A53*4, GPU: Mali G52 MC3, RAM: 8GB, ROM: 128GB |
| Extra | Ambient light Sensor, PIR Motion Sensor, NFC, Slot for optional OPS PC, 4x Touch pen |
| Max. non-stop operating time | 24/7 (While the components are rated for 24/7 operation, we recommend usage not exceeding 18 hours per day to ensure optimal product longevity) |
| Media playback | Yes |
| Glass thickness | 3.2mm |
| Glass hardness | 7H |
| Housing (bezel) | metal |
| OSD key lock | Yes |
| GENERAL | |
| OSD languages |
EN, DE, FR, ES, IT, RU, CZ, NL, PL, CAT, SV, FI, DA, NB, ET, LV, LT, HU, UK |
| Control buttons | Power, Home, Freeze, Volume, Input (source) |
| User controls |
general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode color temp), settings (wireless & networks, share, device, personal, system) |
| Blue light reducer |
Yes |
| Flicker free |
Yes |
| Plug & Play |
DDC2B |
| Warranty |
5 years (for details and eligible countries please check the Warranty section of our website) |
| MECHANICAL | |
| Orientation | landscape |
| Fanless design | Yes |
| VESA mounting | 800 x 600mm |
| Operation temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
| MTBF | 50,000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | power (EU 3m, UK 3m), USB (3m), HDMI (3m) |
| Touch pen | x4 (Dual function tips) |
| Guides | quick start guide, safety guide |
| Other | Wall Mounting Bracket (VESA 800x600), Webcam Mounting Bracket |
| Remote control | yes (batteries included) |
| POWER MANAGEMENT | |
| Power supply unit | internal |
| Power supply | AC AC - 100V, 240V, 50Hz |
| Power Usage | 260W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS) |
| Energy efficiency class (Regulation (EU) 2017/1369) | G |
| REACH SVHC | above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 1955.6 x 1154 x 87.1mm |
| Box dimensions W x H x D | 2095 x 1265 x 185mm |
| Pallet volume | 6pcs |
| Weight (without box) | 63.8kg |
| Weight (with box) | 76.5kg |
