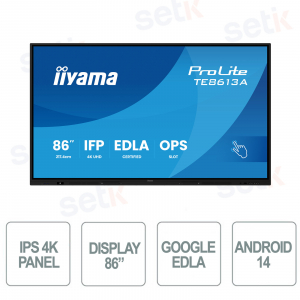

Il iiyama ProLite TE8613A-B3AG è un display interattivo da 86 pollici 4K UHD certificato Google EDLA, progettato per aule didattiche, sale conferenze e ambienti aziendali che richiedono collaborazione avanzata. Il pannello IPS Zero-Gap Air Bonding con tecnologia PureTouch-IR+, 40 punti touch e Palm Rejection garantisce un'esperienza di scrittura precisa, fluida e naturale. Grazie a Android 14, iiWare 21E, Wi-Fi 6E, USB-C fino a 100 W Power Delivery, iiShare e iiControl DMS, offre una perfetta integrazione con Google Workspace e Microsoft 365. Completano la dotazione speaker da 2×20 W con subwoofer, slot OPS, sensori intelligenti e funzionamento affidabile per utilizzo professionale continuativo.
TE8613A-B3AG – MONITOR IPS 86" 4K UHD IIYAMA PROLITE - PURETOUCH IR+ - RJ45 - ANTI-GLARE - PIR MOTION SENSOR - STANDLONE SOLUTION & CONNECTIVITY
Il iiyama ProLite TE8613A-B3AG è un display interattivo da 86 pollici 4K UHD certificato Google EDLA, ideale per aule, sale conferenze e ambienti aziendali che richiedono collaborazione avanzata e condivisione dei contenuti. Il pannello IPS Zero-Gap Air Bonding con tecnologia PureTouch-IR+, 40 punti touch e Palm Rejection garantisce un'esperienza di scrittura precisa e naturale. Grazie a Android 14, iiWare 21E, Wi-Fi 6E, USB-C fino a 100 W Power Delivery, iiShare e iiControl DMS, offre una perfetta integrazione con Google Workspace e Microsoft 365. Completano la dotazione speaker da 2×20 W con subwoofer, slot OPS, sensori intelligenti e funzionamento affidabile per utilizzo professionale continuativo.
Caratteristiche principali:
- Display: 86" IPS 4K UHD (3840×2160)
- Certificazione: Google EDLA
- Touch: PureTouch-IR+ con 40 punti touch e Palm Rejection
- Sistema operativo: Android 14 con iiWare 21E
- Connettività: Wi-Fi 6E, Bluetooth 5.0, HDMI, DisplayPort, USB-C fino a 100 W
- Software: iiShare, iiControl DMS, WhiteBoard
- Audio: 2 speaker da 20 W con subwoofer da 20 W
- Sensori: PIR, sensore di luminosità ambientale e Pen Pick-up
- Espansione: Slot OPS e NFC
- Garanzia: 5 anni
Ulteriori dettagli
Scheda tecnica
| Model | TE8613A-B3AG |
| DISPLAY CHARACTERISTICS | |
| Design | Thin bezel |
| Diagonal | 85.6", 217.4cm |
| Panel | IPS |
| Touch Glass | Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero-Gap Air Bonding |
| Native resolution | 3840 x 2160 (8.3 megapixel 4K UHD) |
| Aspect ratio | 16:9 |
| Brightness | 500 cd/m² (typ.) |
| Light transmittance | 88% |
| Static contrast | 1200:1 |
| Response time MPRT) | 8ms |
| Viewing zone | horizontal/vertical: horizontal°/vertical 178°, right/left: 0°/0°, up/down: 0°/0° |
| Colour support | 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%) |
| Horizontal Sync | 30 - 135kHz |
| Viewable area W x H | 1895 x 1066mm, 74.6 x 42" |
| Bezel width (sides, top, bottom) | 16.7mm, 14.1mm, 46.7mm |
| Pixel pitch | 0.493mm |
| Bezel colour and finish | black, matte |
| TOUCH | |
| Touch technology | PureTouch-IR⁺ |
| Touch points | 40, 10pt writing (HID, only with supported OS, 32pt Touch with Android) |
| Scan rate | 200Hz |
| Touch response time | 5ms |
| Touch accuracy | +- 1mm |
| Touch method | stylus, finger, glove (Passive pen, Opaque objects) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection | Yes |
| INTERFACES / CONNECTORS / CONTROLS | |
| Digital signal output |
HDMI x2 (v2.0) (H1 CEC/ARC / H2 CEC) |
| Audio input |
Mini jack x1 (Microphone) |
| Monitor control input |
RS-232c x1 (DSUB 9pin) |
| Digital signal output |
HDMI x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444) |
| Audio output |
S/PDIF (Optical) x1 |
| Monitor control output |
OPS Slot x1 (Intel OPS 80pin - When installed: USB-C front: 65W, side: 15W) |
| HDCP | 2.2 |
| USB ports | x6 (media playback / peripherals / storage – front side: 1x USB-C 3.2 (Gen 1, 5Gbit, 100W PD), 2x 3.2 (Gen 1, 5Gbit), side: 1x USB-C 2.0 (480 Mbps, 65W PD), 1x 2.0 (480Mbps), 1x 3.2 (Gen 1, 5Gbit)) |
| RJ45 (LAN) | x2 (IN / OUT, Auto switch for PC & Android, 1000MB) |
| FEATURES | |
| Integrated software | iiWare 21E (Android 14 OS, Android 16 summer 2026) featuring Google EDLA, iiControl (DMS), WhiteBoard, web browser, file manager, cloud drives and iiShare for wireless connection with Windows/iOS/Android devices |
| WiFi | yes (WiFi-6E, Bluetooth 5.0) |
| Hardware | SOC: RK3576 Octa-core A72*4 + A53*4, GPU: Mali G52 MC3, RAM: 8 GB, ROM: 128 GB |
| Extra | Ambiant light Sensor, PIR Motion Sensor, NFC, Slot for optional OPS PC, 4x Touch pen |
| Max. non-stop operating time | 24/7 (While the components are rated for 24/7 operation, we recommend usage not exceeding 18 hours per day to ensure optimal product longevity) |
| Media playback | Yes |
| Glass thickness | 3.2mm |
| Glass hardness | 7H |
| Housing (bezel) | metal |
| OSD key lock | Yes |
| GENERAL | |
| OSD languages |
EN, DE, FR, ES, IT, RU, CZ, NL, PL, CAT, SV, FI, DA, NB, ET, LV, LT, HU, UK |
| Control buttons | Power, Home, Freeze, Volume, Input (source) |
| User controls |
general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system) |
| Blue light reducer |
Yes |
| Flicker free |
Yes |
| Plug&Play |
DDC2B |
| Warranty |
5 years (for details and eligible countries please check the Warranty section of our website) |
| MECHANICAL | |
| Orientation | landscape |
| Fanless design | Yes |
| VESA mounting | 800 x 600mm |
| Operation temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
| MTBF | 50.000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | power (EU 3m, UK 3m), USB (3m), HDMI (3m) |
| Touch pen | x4 (Dual function tips) |
| Guides | quick start guide, safety guide |
| Other | Wall Mounting Bracket (VESA 800x600), Webcam Mounting Bracket |
| Remote control | yes (batteries included) |
| POWER MANAGEMENT | |
| Power supply unit | internal |
| Power supply | AC AC - 100V, 240/V, 50Hz |
| Power Usage | 260W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS) |
| Energy efficiency class (Regulation (EU) 2017/1369) | G |
| REACH SVHC | above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 1955.6 x 1154 x 87.1mm |
| Box dimensions W x H x D | 2095 x 1265 x 185mm |
| Pallet volume | 6pcs |
| Weight (without box) | 63.8kg |
| Weight (with box) | 76.5kg |
