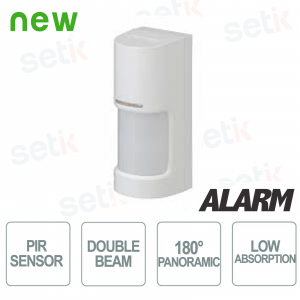

Optex 180° Panoramic Outdoor Dual IR PIR Detector with Low Power Consumption - IP55

Optex 180° Panoramic Outdoor Dual IR PIR Detector with Low Power Consumption - IP55

 
-32%

Low-power dual-beam PIR detector. Adjustable detection range up to 12 meters and 180° panoramic view, programmable in two levels. SMDA (Super Multi Dimension Analysis) , easy masking against falls. Double conductive shielding against interference from strong light. Battery-powered. VXI-R

referencia : WXI-R

brand : Optex

Manufacturer Object ( [id] => 49 [name] => Optex [description] =>

Descubra todos los productos optex amplio catálogo de sensores de exterior. Encontrará optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam. Todo el mundo de la detección de intrusiones Optex

[short_description] =>

Optex

OPTEX fabricante y líder mundial en tecnología de detección de alto rendimiento. Desde hace más de 40 años en el mercado, Optex cuenta con miles de clientes en todo el mundo que les eligen cada día para sus sistemas de detección fiables.

[id_address] => [date_add] => 2023-07-10 10:37:37 [date_upd] => 2024-06-17 15:20:33 [link_rewrite] => optex [meta_title] => [meta_keywords] => optex deteccion intrusiones, optex catalogo, optex sensores exterieur, optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DOUBLE BEAM PIR DETECTOR - LOW CONSUMPTION - 12-METRE RANGE AND 180° PANORAMIC - OPTEX

Rivelatore PIR a doppio fascio

DESCRIPTION:
 The WXI-R detector is one of the best low power dual beam PIR detectors on the market.

This device features 2 adjustable detection beams and SMDA (Super Multi Dimension Analysis), advanced temperature compensation logic and ambient noise immunity.

Battery operated.

Extremely reliable product.

Product details

  • Passive Infrared PIR Detector - Optex
  • Low absorption
  • Type: Dual-beam PIR detector
  • Adjustable detection coverage up to 12 meters and 180° panoramic, programmable in 2 levels
  • Battery Operation
  • Power supply 9.5V ~ 18V DC /20 mA
  • Operating Temperature -30 to 60°C (-22 to 140°F)
  • IP55 protection
  • Dimensions 200 x 81.5 x 119.2 mm

Rilevatore PIR infrarosso passivo doppio fascio

Technical data sheet

Model WXI-R
System
Detection method Passive infrared, low absorption
PIR Coverage 12.0 m (40 ft) 180° wide / 14 zones
PIR Distance Limit 0.8 – 1.2 m (2 levels)
Detectable Speed 0.3 – 1.5 m/s (0.98 – 4.92 ft/s)
Sensitivity 2.0°C (3.6°F) at 0.6 m/s
Power Input 9.5 – 18 V DC
Current Draw 20 mA (max.) at 12 V DC
Alarm Period 2.0 ±1 sec.
Warm-up Period Approx. 60 sec. (LED blinks
Alarm Output NC/NO Selectable 28V DC 0.1A (max)
Tamper Output NC 28 V DC 0.1 A (max) open when cover removed.
LED indicator Red: Warm-up, alarm, masking detection (VXI-AM only)
RF interference No alarm 10 V/m
Operating temperature -30 – +60°C (-22 – +140°F)
Environment humidity 95% max
International Protection IP55
Mounting Wall, Pole (Outdoor, Indoor
Mounting Height 0.8 – 1.2 m (2.64 – 3.94 ft)
Weight 500 g (17.7 oz.)
Dimensions 200 x 81.5 x 119.2 mm
