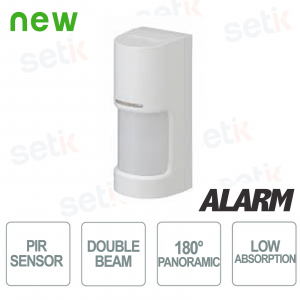

Optex 180° Panoramic Outdoor Dual IR PIR Detector with Low Power Consumption - IP55

Optex 180° Panoramic Outdoor Dual IR PIR Detector with Low Power Consumption - IP55

 
-32%

Low-power dual-beam PIR detector. Adjustable detection range up to 12 meters and 180° panoramic view, programmable in two levels. SMDA (Super Multi Dimension Analysis) , easy masking against falls. Double conductive shielding against interference from strong light. Battery-powered. VXI-R

Artikel-Nr.: WXI-R

Marke: Optex

Manufacturer Object ( [id] => 49 [name] => Optex [description] =>

Entdecken Sie alle optex-Produkte im umfangreichen Katalog der Außensensoren. Sie finden optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam. Die ganze Welt der Optex Einbruchmeldeanlagen

[short_description] =>

Optex

OPTEX ist Hersteller und weltweit führend in der Hochleistungs-Sensortechnologie. Seit mehr als 40 Jahren auf dem Markt, hat Optex Tausende von Kunden auf der ganzen Welt, die sie jeden Tag für ihre zuverlässigen Detektionssysteme wählen.

[id_address] => [date_add] => 2023-07-10 10:37:37 [date_upd] => 2024-06-17 15:20:33 [link_rewrite] => optex [meta_title] => [meta_keywords] => optex einbruchsicherungssensoren, optex katalog, optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

DOUBLE BEAM PIR DETECTOR - LOW CONSUMPTION - 12-METRE RANGE AND 180° PANORAMIC - OPTEX

Rivelatore PIR a doppio fascio

DESCRIPTION:
 The WXI-R detector is one of the best low power dual beam PIR detectors on the market.

This device features 2 adjustable detection beams and SMDA (Super Multi Dimension Analysis), advanced temperature compensation logic and ambient noise immunity.

Battery operated.

Extremely reliable product.

Product details

  • Passive Infrared PIR Detector - Optex
  • Low absorption
  • Type: Dual-beam PIR detector
  • Adjustable detection coverage up to 12 meters and 180° panoramic, programmable in 2 levels
  • Battery Operation
  • Power supply 9.5V ~ 18V DC /20 mA
  • Operating Temperature -30 to 60°C (-22 to 140°F)
  • IP55 protection
  • Dimensions 200 x 81.5 x 119.2 mm

Rilevatore PIR infrarosso passivo doppio fascio

Technical data sheet

Model WXI-R
System
Detection method Passive infrared, low absorption
PIR Coverage 12.0 m (40 ft) 180° wide / 14 zones
PIR Distance Limit 0.8 – 1.2 m (2 levels)
Detectable Speed 0.3 – 1.5 m/s (0.98 – 4.92 ft/s)
Sensitivity 2.0°C (3.6°F) at 0.6 m/s
Power Input 9.5 – 18 V DC
Current Draw 20 mA (max.) at 12 V DC
Alarm Period 2.0 ±1 sec.
Warm-up Period Approx. 60 sec. (LED blinks
Alarm Output NC/NO Selectable 28V DC 0.1A (max)
Tamper Output NC 28 V DC 0.1 A (max) open when cover removed.
LED indicator Red: Warm-up, alarm, masking detection (VXI-AM only)
RF interference No alarm 10 V/m
Operating temperature -30 – +60°C (-22 – +140°F)
Environment humidity 95% max
International Protection IP55
Mounting Wall, Pole (Outdoor, Indoor
Mounting Height 0.8 – 1.2 m (2.64 – 3.94 ft)
Weight 500 g (17.7 oz.)
Dimensions 200 x 81.5 x 119.2 mm

Download

No documents to download
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
