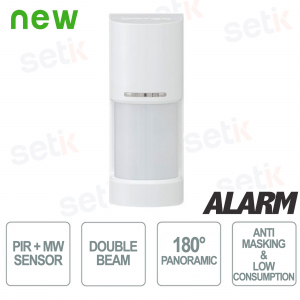

180° Panoramic Outdoor Dual IR PIR Detector with Low Power & MW Anti-Masking - IP55 - Optex

180° Panoramic Outdoor Dual IR PIR Detector with Low Power & MW Anti-Masking - IP55 - Optex

 
-32%

Outdoor PIR detector with double beam . Detection coverage with anti-masking and low-consumption microwaves, high fixing at 2m, range 9m meters and panoramic 180°, programmable in 2 levels. Easy anti-fall masking. Double conductive shielding against disturbances due to strong light. WXS-RDAM

referencia : WXS-RDAM

brand : Optex

EAN: 788924502038

Disponibilità: 1

Manufacturer Object ( [id] => 49 [name] => Optex [description] =>

Descubra todos los productos optex amplio catálogo de sensores de exterior. Encontrará optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam. Todo el mundo de la detección de intrusiones Optex

[short_description] =>

Optex

OPTEX fabricante y líder mundial en tecnología de detección de alto rendimiento. Desde hace más de 40 años en el mercado, Optex cuenta con miles de clientes en todo el mundo que les eligen cada día para sus sistemas de detección fiables.

[id_address] => [date_add] => 2023-07-10 10:37:37 [date_upd] => 2024-06-17 15:20:33 [link_rewrite] => optex [meta_title] => [meta_keywords] => optex deteccion intrusiones, optex catalogo, optex sensores exterieur, optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

OUTDOOR PIR DETECTOR WITH DOUBLE BEAM - ANTI-MASKING AND LOW ABSORPTION MICROWAVE - 9 METERS RANGE AND 180° PANORAMIC - OPTEX

Rivelatore PIR a doppio fascio

DESCRIPTION:
 The W XS-RDAM detector is one of the best outdoor dual-beam PIR detectors with anti-masking and low-consumption microwaves on the market.

This device features 2 adjustable detection beams, advanced temperature compensation logic and ambient noise immunity.

Extremely reliable product.

Product details

  • Passive Infrared PIR Detector - Optex
  • Anti-masking and low-absorption microwaves
  • Type: Outdoor dual beam PIR detector
  • Adjustable detection coverage up to 9 meters and 180° panoramic
  • Power supply 9.5V ~ 18V DC
  • Operating Temperature -30 to 60°C (-22 to 140°F)
  • IP55 protection
  • Dimensions 201.5mm x 92mm x 86.3mm

Rilevatore PIR infrarosso passivo doppio fascio

Technical data sheet

Model WXS-RDAM
System
Detection method Passive infrared, Antimasking Low consumption Microwave
PIR Coverage 9.0 m 180° wide
PIR Distance Limit 0.8 – 1.2 m (2 levels)
Detectable Speed 0.3 – 1.5 m/s (0.98 – 4.92 ft/s)
Sensitivity 2.0°C (3.6°F) at 0.6 m/s
Power Input 9.5 – 18V DC
Current Draw 20 mA (max.) at 12 V DC
Alarm Period 2.0 ±1 sec.
Warm-up Period Approx. 60 sec. (LED blinks
AlarmOutput NC/NO Selectable 28V DC 0.1A (max)
Tamper-Output NC 28 V DC 0.1 A (max) open when cover removed.
LED indicator Red: Warm-up, alarm, masking detection (VXI-AM only)
RF interference No alarm 10V/m
Operating temperature -30 – +60°C (-22 – +140°F)
Humidity environment 95% max
International Protection IP55
Mounting Wall, Pole (Outdoor, Indoor
Mounting Height 0.8 – 1.2 m (2.64 – 3.94 ft)
Weight 500g (17.7oz.)
Dimensions 201.5mm x 92mm x 86.3mm.
