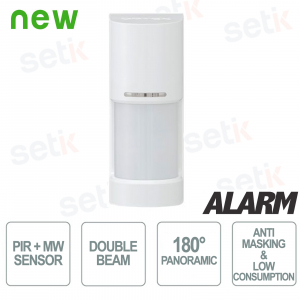

OUTDOOR PIR DETECTOR WITH DOUBLE BEAM - ANTI-MASKING AND LOW ABSORPTION MICROWAVE - 9 METERS RANGE AND 180° PANORAMIC - OPTEX

Rivelatore PIR a doppio fascio

DESCRIPTION:
 The W XS-RDAM detector is one of the best outdoor dual-beam PIR detectors with anti-masking and low-consumption microwaves on the market.

This device features 2 adjustable detection beams, advanced temperature compensation logic and ambient noise immunity.

Extremely reliable product.

Product details

  • Passive Infrared PIR Detector - Optex
  • Anti-masking and low-absorption microwaves
  • Type: Outdoor dual beam PIR detector
  • Adjustable detection coverage up to 9 meters and 180° panoramic
  • Power supply 9.5V ~ 18V DC
  • Operating Temperature -30 to 60°C (-22 to 140°F)
  • IP55 protection
  • Dimensions 201.5mm x 92mm x 86.3mm

Rilevatore PIR infrarosso passivo doppio fascio

Technical data sheet

Model WXS-RDAM
System
Detection method Passive infrared, Antimasking Low consumption Microwave
PIR Coverage 9.0 m 180° wide
PIR Distance Limit 0.8 – 1.2 m (2 levels)
Detectable Speed 0.3 – 1.5 m/s (0.98 – 4.92 ft/s)
Sensitivity 2.0°C (3.6°F) at 0.6 m/s
Power Input 9.5 – 18V DC
Current Draw 20 mA (max.) at 12 V DC
Alarm Period 2.0 ±1 sec.
Warm-up Period Approx. 60 sec. (LED blinks
AlarmOutput NC/NO Selectable 28V DC 0.1A (max)
Tamper-Output NC 28 V DC 0.1 A (max) open when cover removed.
LED indicator Red: Warm-up, alarm, masking detection (VXI-AM only)
RF interference No alarm 10V/m
Operating temperature -30 – +60°C (-22 – +140°F)
Humidity environment 95% max
International Protection IP55
Mounting Wall, Pole (Outdoor, Indoor
Mounting Height 0.8 – 1.2 m (2.64 – 3.94 ft)
Weight 500g (17.7oz.)
Dimensions 201.5mm x 92mm x 86.3mm.
