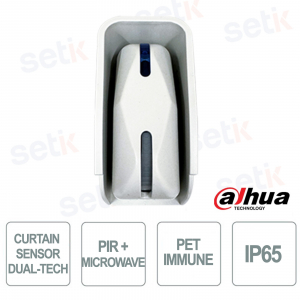

ARO-VELVET-W2-868 Curtain Sensor: Outdoor Dual Tech IP65 Security - Dahua

ARO-VELVET-W2-868 Curtain Sensor: Outdoor Dual Tech IP65 Security - Dahua

-57% nuevo

ARO-VELVET-W2-868 - The outdoor curtain sensor provides advanced protection with dual-tech PIR and microwave detection, coverage up to 12 meters, and IP65 protection. It features infrared anti-masking, pet immunity, and two-way wireless communication with AES128 encryption and frequency hopping. It operates on a low-power 3-3.6V battery and includes an ARM310-W2-868 expansion input, ideal for professional outdoor security. Dahua

Technical Data Sheet

referencia : ARO-VELVET-W2-868

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

ARO-VELVET-W2-868 | DUAL-TECH OUTDOOR CURTAIN SENSOR

Dahua

The Dahua ARO-VELVET-W2-868 outdoor curtain sensor provides advanced protection thanks to dual PIR and microwave technology, coverage up to 12 meters, IP65 protection and active anti-masking. It supports AES128 encrypted wireless communication at 868 MHz, optional pet immunity and a low-power 3-3.6V power supply, perfect for reliable perimeter security in all weather conditions.

Main specifications:

- Dual PIR technology + low-consumption microwave

- IR anti-masking and IP65 protection

- Pet Immunity with dedicated accessory

- Automatic temperature compensation

- AES128 two-way wireless with frequency hopping

- Coverage up to 12 meters for outdoor use

Further details

Double curtain technology:
The sensor combines infrared (PIR) and microwave detection with curtain technology, offering precise and energy-efficient perimeter protection. The dual technology ensures reliable detection while reducing false alarms, even in outdoor environments.
Pet Immunity for small animals :
With the use of dedicated accessories, the sensor can ignore small pets, avoiding unnecessary alerts when dogs or cats are present.
Coverage up to 12 meters :
The operating range reaches up to 12 meters with curtain coverage, ideal for protecting entrances, shop windows or external corridors without compromising aesthetics.
IP65 protection for outdoor use:
The waterproof casing with seals on all profiles ensures resistance to dust and water, making it suitable for any climatic conditions from -10°C to +55°C.

Technical data sheet

Model ARO-VELVET-W2-868
Characteristics
Diet 3V Lithium Battery
Absorption in detection 600uA
with LED on 3.5mA
Absorb. In operating mode
(ANTIMASK INSERTED):
16uA
22uA
Microwave 24 GHz
Alarm Relay Time: 1 sec
Antimask+Tamper Relay Time: min 2.5 sec
Antimask+Tamper Relay: 10mA /3V
Tamper: 100mA/30V
Wall Tamper: 300mA/48V
Working temperature: -10°C/+55°C
Environmental Humidity:

95%

Dimensions without accessories:

110x44x63 mm
