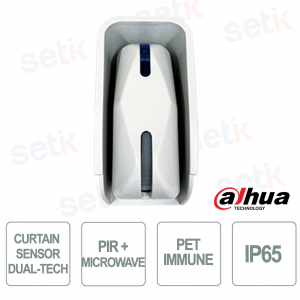

ARO-VELVET-W2-868 | DUAL-TECH OUTDOOR CURTAIN SENSOR

Dahua

The Dahua ARO-VELVET-W2-868 outdoor curtain sensor provides advanced protection thanks to dual PIR and microwave technology, coverage up to 12 meters, IP65 protection and active anti-masking. It supports AES128 encrypted wireless communication at 868 MHz, optional pet immunity and a low-power 3-3.6V power supply, perfect for reliable perimeter security in all weather conditions.

Main specifications:

- Dual PIR technology + low-consumption microwave

- IR anti-masking and IP65 protection

- Pet Immunity with dedicated accessory

- Automatic temperature compensation

- AES128 two-way wireless with frequency hopping

- Coverage up to 12 meters for outdoor use

Further details

Double curtain technology:
The sensor combines infrared (PIR) and microwave detection with curtain technology, offering precise and energy-efficient perimeter protection. The dual technology ensures reliable detection while reducing false alarms, even in outdoor environments.
Pet Immunity for small animals :
With the use of dedicated accessories, the sensor can ignore small pets, avoiding unnecessary alerts when dogs or cats are present.
Coverage up to 12 meters :
The operating range reaches up to 12 meters with curtain coverage, ideal for protecting entrances, shop windows or external corridors without compromising aesthetics.
IP65 protection for outdoor use:
The waterproof casing with seals on all profiles ensures resistance to dust and water, making it suitable for any climatic conditions from -10°C to +55°C.

Technical data sheet

Model ARO-VELVET-W2-868
Characteristics
Diet 3V Lithium Battery
Absorption in detection 600uA
with LED on 3.5mA
Absorb. In operating mode
(ANTIMASK INSERTED):
16uA
22uA
Microwave 24 GHz
Alarm Relay Time: 1 sec
Antimask+Tamper Relay Time: min 2.5 sec
Antimask+Tamper Relay: 10mA /3V
Tamper: 100mA/30V
Wall Tamper: 300mA/48V
Working temperature: -10°C/+55°C
Environmental Humidity:

95%

Dimensions without accessories:

110x44x63 mm

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
