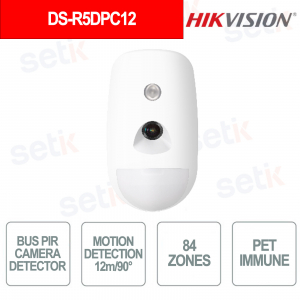

PIR Sensor with Integrated Camera and IR Night Vision up to 12 m with Pet Immunity - Hikvision

PIR Sensor with Integrated Camera and IR Night Vision up to 12 m with Pet Immunity - Hikvision

 
-35% nuevo

DS-R5DPC12 - is a PIR detector with integrated camera designed for professional security systems, capable of offering motion detection up to 12 meters at a 90° angle and immediate visual verification through high-resolution images. Thanks to the integrated camera with IR night vision up to 12 meters , it captures clear images even in low-light conditions. The system integrates pet immunity up to 30 kg and Smart Environmental Control technology to reduce false alarms. It supports sequential image acquisition up to Full HD for complete event monitoring. App management allows remote configuration and control , making it ideal for high-security residential and commercial environments. Hikvision

Technical Data Sheet

referencia : DS-R5DPC12

brand : Hikvision

EAN: 6942640550214

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-R5DPC12 – BUS PIR-CAMERA DETECTOR

Hikvision

The Hikvision DS-PD501PC12 is a motion detector with an integrated camera designed to offer advanced security and immediate visual verification, thanks to PIR detection up to 12 meters with 90° coverage and automatic image capture in the event of an alarm. The integrated camera with IR night vision up to 12 meters ensures clear images even in the dark, with resolution up to Full HD. The device integrates pet immunity up to 30 kg and Smart Environmental Control technology to reduce false alarms. It supports sequential image acquisition for complete event verification. App management allows remote control and simple configuration , making it ideal for residential and commercial environments.

Main features:

- PIR detection up to 12m with 90° coverage

- Built-in camera with IR night vision up to 12m

- Pet immunity up to 30 kg

- Image acquisition up to Full HD and in sequence

- Smart Environmental Control technology against false alarms

- Remote configuration and management via app

Further details

✅ PIR Detector:
The device integrates a dual pyroelectric element PIR sensor with detection up to 12 meters and 90° coverage , capable of precisely analyzing movement thanks to digital processing and automatic temperature compensation, ensuring reliable performance and reduction of false alarms.
✅ Room:
The integrated CMOS camera allows for immediate visual verification of alarms , with images up to Full HD resolution and night vision via IR illumination up to 12 metres , ensuring complete control even in total darkness.
✅ Bus interconnection :
The system uses half-duplex RS-485 technology for stable and reliable bus communication , ensuring efficient data transmission between devices and optimal integration into wired security systems.
✅ Power supply :
Designed to ensure maximum reliability, it supports 100-240V AC primary power supply and a buffer battery up to 7Ah , ensuring continuous operation for up to 12 hours in standby and protection against blackouts and power interruptions.

Technical data sheet

DS-R5DPC12
PIR detection
Detection method Low noise Dual Element Pyroelectric sensor
Detection range 12 m
Detection angle 90°
Detection zones 84
Detection planes 7
Detectable speed 0.3 m/s ~ 2 m/s
Sensitivity Low, Normal, High
Pet immunity 30kg
White light filter 6500 lux
Sealed optics Support
Digital processing Support
Temperature compensation Automatic
Room
Angle 109°(H) 60°(V)
Sensor type CMOS
Daylight video Color
Night vision video Black & White
Illumination Automatic with 1 × IR LED
Illumination range 12 m
Image format JPEG
Resolution VGA (640 × 480) HD(1280 × 720) FHD(1920 × 1080)
Images in series Up to 3 images with resolution FHD Up to 6 images with resolution HD Up to 10 images with resolution VGA

Bus interconnection
Bus extender No
Bus technology Half-Duplex RS-485
Bus wiring 4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²)
Power supply - general
Input voltage 12 VDC nominal (9~16 VDC), powered by bus
Quiescent current 70 mA @12VDC
Max. current 100 mA @12VDC
Environmental
Operating temperature -10°C to 50°C (14°F to 122°F), indoor use only
Storage temperature -20°C to 60°C (-4°F to 140°F)
Relative humidity 10% ~ 90% non-condensing
Physical
Dimensions (W × H × D) 73 mm × 130.5 mm × 56.7 mm
Weight 195 g
Tamper-proof Front and Rear
Installation method Wall mount & Celling mount (with bracket)
Bracket DS-PDB-IN-Ceilingbracket (Optional) DS-PDB-IN-Wallbracket (Optional)
Mounting height 1.8 m ~ 2.4 m, 2.1 m typical
Compliance
Electrical compliance CE, CB
EN 50131 Security Grade 2, Environmental Class II
