DS-R5DPC12 - is a PIR detector with integrated camera designed for professional security systems, capable of offering motion detection up to 12 meters at a 90° angle and immediate visual verification through high-resolution images. Thanks to the integrated camera with IR night vision up to 12 meters , it captures clear images even in low-light conditions. The system integrates pet immunity up to 30 kg and Smart Environmental Control technology to reduce false alarms. It supports sequential image acquisition up to Full HD for complete event monitoring. App management allows remote configuration and control , making it ideal for high-security residential and commercial environments. Hikvision

Technical Data Sheet

Reference: DS-R5DPC12

Brand: Hikvision

EAN: 6942640550214

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

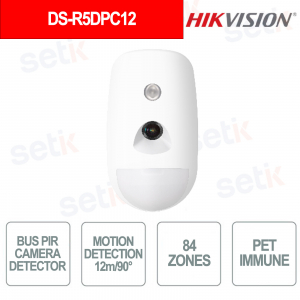

DS-R5DPC12 – BUS PIR-CAMERA DETECTOR

Hikvision

The Hikvision DS-PD501PC12 is a motion detector with an integrated camera designed to offer advanced security and immediate visual verification, thanks to PIR detection up to 12 meters with 90° coverage and automatic image capture in the event of an alarm. The integrated camera with IR night vision up to 12 meters ensures clear images even in the dark, with resolution up to Full HD. The device integrates pet immunity up to 30 kg and Smart Environmental Control technology to reduce false alarms. It supports sequential image acquisition for complete event verification. App management allows remote control and simple configuration , making it ideal for residential and commercial environments.

Main features:

- PIR detection up to 12m with 90° coverage

- Built-in camera with IR night vision up to 12m

- Pet immunity up to 30 kg

- Image acquisition up to Full HD and in sequence

- Smart Environmental Control technology against false alarms

- Remote configuration and management via app

Further details

✅ PIR Detector:
The device integrates a dual pyroelectric element PIR sensor with detection up to 12 meters and 90° coverage , capable of precisely analyzing movement thanks to digital processing and automatic temperature compensation, ensuring reliable performance and reduction of false alarms.
✅ Room:
The integrated CMOS camera allows for immediate visual verification of alarms , with images up to Full HD resolution and night vision via IR illumination up to 12 metres , ensuring complete control even in total darkness.
✅ Bus interconnection :
The system uses half-duplex RS-485 technology for stable and reliable bus communication , ensuring efficient data transmission between devices and optimal integration into wired security systems.
✅ Power supply :
Designed to ensure maximum reliability, it supports 100-240V AC primary power supply and a buffer battery up to 7Ah , ensuring continuous operation for up to 12 hours in standby and protection against blackouts and power interruptions.

Technical data sheet

DS-R5DPC12
PIR detection
Detection method Low noise Dual Element Pyroelectric sensor
Detection range 12 m
Detection angle 90°
Detection zones 84
Detection planes 7
Detectable speed 0.3 m/s ~ 2 m/s
Sensitivity Low, Normal, High
Pet immunity 30kg
White light filter 6500 lux
Sealed optics Support
Digital processing Support
Temperature compensation Automatic
Room
Angle 109°(H) 60°(V)
Sensor type CMOS
Daylight video Color
Night vision video Black & White
Illumination Automatic with 1 × IR LED
Illumination range 12 m
Image format JPEG
Resolution VGA (640 × 480) HD(1280 × 720) FHD(1920 × 1080)
Images in series Up to 3 images with resolution FHD Up to 6 images with resolution HD Up to 10 images with resolution VGA

Bus interconnection
Bus extender No
Bus technology Half-Duplex RS-485
Bus wiring 4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²)
Power supply - general
Input voltage 12 VDC nominal (9~16 VDC), powered by bus
Quiescent current 70 mA @12VDC
Max. current 100 mA @12VDC
Environmental
Operating temperature -10°C to 50°C (14°F to 122°F), indoor use only
Storage temperature -20°C to 60°C (-4°F to 140°F)
Relative humidity 10% ~ 90% non-condensing
Physical
Dimensions (W × H × D) 73 mm × 130.5 mm × 56.7 mm
Weight 195 g
Tamper-proof Front and Rear
Installation method Wall mount & Celling mount (with bracket)
Bracket DS-PDB-IN-Ceilingbracket (Optional) DS-PDB-IN-Wallbracket (Optional)
Mounting height 1.8 m ~ 2.4 m, 2.1 m typical
Compliance
Electrical compliance CE, CB
EN 50131 Security Grade 2, Environmental Class II
