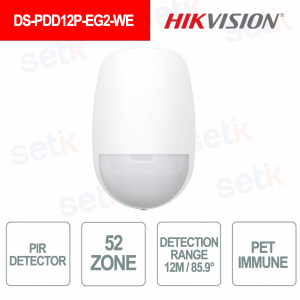

DS-PDD12P-EG2-WE – WIRELESS DUAL-TECH DETECTOR

Hikvision

The Hikvision DS-PDD12P-EG2-WE detector is a dual-tech wireless sensor designed to ensure maximum security thanks to PIR and 24GHz microwave technology , ensuring precise and reliable detections. It offers coverage of up to 12 meters with an 85.9° angle and integrates 3D optics with creep-zone protection to eliminate blind spots. Thanks to animal immunity up to 30 kg and digital temperature compensation , it drastically reduces false alarms. Two-way Tri-X communication with AES-128 encryption ensures secure transmissions up to long distances. Equipped with a battery life of up to 5 years and remote configuration via app, it is ideal for professional indoor installations.

Main features:

- Dual-tech PIR + 24GHz microwave technology for precise and reliable detection

- Coverage up to 12 m and 85.9° angle with 3D optics without blind spots

- Animal immunity up to 30 kg to reduce false alarms

- Tri-X wireless protocol with AES-128 for secure and stable communications

- Battery life up to 5 years for long operating life

- Tamper protection and full supervision for advanced security

- Digital temperature compensation for consistent performance

- Remote configuration via app for quick and easy management

- Transmission up to 1.6 km in open field for extended coverage

- Simple installation with multiple enrollment modes for maximum flexibility

Further details

✅ Detection Performance:
Advanced Detection Performance thanks to the combination of PIR sensor and 24GHz microwave , with coverage up to 12 meters, 85.9° angle and 52 detection zones , ensuring high precision and animal immunity up to 30 kg.
✅ Features:
Built-in intelligent features like sealed 3D optics, front and rear tamper protection, digital temperature compensation and environmental indicators , for consistent reliability in any conditions.
✅ Interface:
Simplified interface with status LEDs (PIR, microwave and alarm) and quick enrollment system , designed for intuitive setup and immediate control of the device.
✅ Transmission :
Two-way Tri-X wireless transmission with 868MHz frequency, AES-128 encryption and range up to 1.6 km , ensuring secure and stable communications even over long distances.
✅ Electrical characteristics :
Optimized electrical features with up to 5 years of autonomy under standard operating conditions , designed to reduce maintenance and ensure continuity.
✅ Power supply :
Powered by CR123A battery (x2) with typical voltage 3V , which allows completely wireless installation and maximum flexibility without wiring.

Technical data sheet

DS-PDD12P-EG2-WE
Detection Performance yes
Detection method Passive Infrared; Microwave
Detection Range 12m
Detection angle 85.9°
Detection Zones 52
Detectable Speed 0.3-2m/s
Sensitivity Auto, High, Pet
Pet Immunity 30kg
White Light Filter 6500lux
Microwave Frequency 24GHz(24.15?24.25GHz)
Digital Temperature Compensation Support
Creep Zone Protection Support
Feature
Digital Processing Support
Sale optics Support
Tamper Protection Front; Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Interface
Power Switch Power Up Enrolling
LED Indicator Green(PIR), Red(Microwave), Blue(Alarm)
Transmission
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868MHz
Transmission Security AES-128 Encryption
Transmission Range(Free Space) 1.6km
Frequency Hopping Support
Enrolling Method Power up; Remote ID; QR Code
Electrical Characteristics
Standard Battery Life 5 years in work status (being triggered 20 times per day)
Power Supply Battery Powered
Battery Type CR123A x 2
Typical Voltage 3V
General
Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity 10% to 90%
Dimensions (WxHxD) 65.5mm × 103mm × 48.5mm
Weight 141g
Mounting Height 1.8 to 2.4m
Mounting Method Wall
Application Scenario Indoor
Bracket Optional Wall & Ceiling Accessory
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
