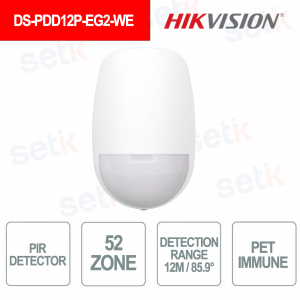

Hikvision 12m Tri-X AES Dual-Tech PIR Microwave Wireless Sensor Professional Anti-Alarm

Hikvision 12m Tri-X AES Dual-Tech PIR Microwave Wireless Sensor Professional Anti-Alarm

BEST PRICE -35%

DS-PDD12P-EG2-WE - is a dual-tech wireless sensor designed for advanced security systems, combining PIR and 24GHz microwave technology for precise and reliable detection. Thanks to its coverage of up to 12 meters with an 85.9° angle and 3D optics with creep-zone protection , it guarantees complete protection without blind spots. It integrates advanced features such as animal immunity up to 30 kg and digital temperature compensation , reducing false alarms. Tri-X two-way communication with AES-128 encryption ensures secure transmissions over long distances. Equipped with a battery life of up to 5 years and remote configuration via app, it is an ideal solution for indoor environments. Hikvision

Technical Data Sheet

Reference: DS-PDD12P-EG2-WE

Brand: Hikvision

EAN: 6941264063131

Disponibilità: 25

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-PDD12P-EG2-WE – WIRELESS DUAL-TECH DETECTOR

Hikvision

The Hikvision DS-PDD12P-EG2-WE detector is a dual-tech wireless sensor designed to ensure maximum security thanks to PIR and 24GHz microwave technology , ensuring precise and reliable detections. It offers coverage of up to 12 meters with an 85.9° angle and integrates 3D optics with creep-zone protection to eliminate blind spots. Thanks to animal immunity up to 30 kg and digital temperature compensation , it drastically reduces false alarms. Two-way Tri-X communication with AES-128 encryption ensures secure transmissions up to long distances. Equipped with a battery life of up to 5 years and remote configuration via app, it is ideal for professional indoor installations.

Main features:

- Dual-tech PIR + 24GHz microwave technology for precise and reliable detection

- Coverage up to 12 m and 85.9° angle with 3D optics without blind spots

- Animal immunity up to 30 kg to reduce false alarms

- Tri-X wireless protocol with AES-128 for secure and stable communications

- Battery life up to 5 years for long operating life

- Tamper protection and full supervision for advanced security

- Digital temperature compensation for consistent performance

- Remote configuration via app for quick and easy management

- Transmission up to 1.6 km in open field for extended coverage

- Simple installation with multiple enrollment modes for maximum flexibility


Further details

Detection Performance:
Advanced Detection Performance thanks to the combination of PIR sensor and 24GHz microwave , with coverage up to 12 meters, 85.9° angle and 52 detection zones , ensuring high precision and animal immunity up to 30 kg.
Features:
Built-in intelligent features like sealed 3D optics, front and rear tamper protection, digital temperature compensation and environmental indicators , for consistent reliability in any conditions.
Interface:
Simplified interface with status LEDs (PIR, microwave and alarm) and quick enrollment system , designed for intuitive setup and immediate control of the device.
Transmission :
Two-way Tri-X wireless transmission with 868MHz frequency, AES-128 encryption and range up to 1.6 km , ensuring secure and stable communications even over long distances.
Electrical characteristics :
Optimized electrical features with up to 5 years of autonomy under standard operating conditions , designed to reduce maintenance and ensure continuity.
Power supply :
Powered by CR123A battery (x2) with typical voltage 3V , which allows completely wireless installation and maximum flexibility without wiring.

Technical data sheet

DS-PDD12P-EG2-WE
Detection Performance yes
Detection method Passive Infrared; Microwave
Detection Range 12m
Detection angle 85.9°
Detection Zones 52
Detectable Speed 0.3-2m/s
Sensitivity Auto, High, Pet
Pet Immunity 30kg
White Light Filter 6500lux
Microwave Frequency 24GHz(24.15?24.25GHz)
Digital Temperature Compensation Support
Creep Zone Protection Support
Feature
Digital Processing Support
Sale optics Support
Tamper Protection Front; Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Interface
Power Switch Power Up Enrolling
LED Indicator Green(PIR), Red(Microwave), Blue(Alarm)
Transmission
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868MHz
Transmission Security AES-128 Encryption
Transmission Range(Free Space) 1.6km
Frequency Hopping Support
Enrolling Method Power up; Remote ID; QR Code
Electrical Characteristics
Standard Battery Life 5 years in work status (being triggered 20 times per day)
Power Supply Battery Powered
Battery Type CR123A x 2
Typical Voltage 3V
General
Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity 10% to 90%
Dimensions (WxHxD) 65.5mm × 103mm × 48.5mm
Weight 141g
Mounting Height 1.8 to 2.4m
Mounting Method Wall
Application Scenario Indoor
Bracket Optional Wall & Ceiling Accessory
