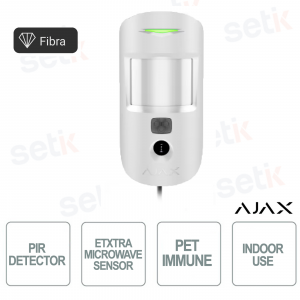

Ajax Superior MotionCam (PhOD) Fiber White – Wired PIR Sensor with Photo On Demand and Advanced Verification

Ajax Superior MotionCam (PhOD) Fiber White – Wired PIR Sensor with Photo On Demand and Advanced Verification

 
ANUNCIOS

AJAX FIBER | 143612.169.WH1 (ex. 53771.169.WH1) # 143612 | Ajax Superior MotionCam (PhOD) Fiber white is a wired PIR motion detector designed for professional security systems that require advanced photo verification even on demand . The sensor guarantees precise detection up to 12 meters with an 88.5° angle , adapting to environmental changes thanks to intelligent thermal compensation . The integrated camera allows photos on demand, for alarm or scenario , with clear images even in the dark via infrared illumination . Encrypted fiber communication up to 2,000 meters ensures continuous reliability, while anti-sabotage protection and double tamper complete an advanced and highly professional security solution. Ajax

Technical Data Sheet

referencia : 143612.169.WH1

brand : Ajax Systems

EAN: 4823114079184

Disponibilità: 47

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CARTEL GRATUITO DE TVCC×

Con todos >> KITS AJAX

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

143612.169.WH1 | WIRED IR MOTION DETECTOR WITH EXTENDED PHOTO VERIFICATION

Ajax

Ajax Superior MotionCam (PhOD) Fiber, 143612.169.WH1 (formerly 53771.169.WH1), white is a professional-grade wired PIR motion detector, designed for advanced security systems requiring advanced photo verification and full event control . The device ensures precise detection up to 12 meters with an 88.5° angle , adapting to environmental changes thanks to intelligent temperature compensation . The integrated camera allows photos on demand, by alarm, scenario or programming , ensuring clear images even in the dark via infrared illumination . Encrypted fiber communication up to 2,000 meters and anti-sabotage protection with double tamper make the sensor ideal for reliable and secure professional installations.

Main specifications:

- Wired PIR motion detector with high precision sensor

- Advanced photo verification with on-demand photos, for alarm and scenario

- Detection range up to 12 meters with an 88.5° angle

- Infrared illumination for shooting in dark conditions

- Encrypted fiber communication technology up to 2,000 meters

- Pet immunity and false alarm prevention

- Anti-tamper protection with double tamper and device authentication

Further details

✅ Fiber Communication :
Ajax Fibre technology ensures secure two-way transmission up to 2,000 meters , with end-to-end encryption , constant polling of device status and maximum reliability even in professional and complex security installations.
✅ Detection :
The intelligent temperature-compensated PIR sensor ensures accurate detection up to 12 meters at an 88.5° angle , maintaining consistent performance in any environmental conditions and offering pet immunity to reduce false alarms.
✅ Photo verification :
The integrated camera allows photographic verification on demand, by alarm, scenario or programming , with up to 5 images per event , high resolution and infrared illumination for clear images even in the absence of light.
✅ Anti-sabotage protection:
The device integrates anti-spoofing authentication , double anti-opening and anti-tear tamper and connection loss detection , guaranteeing total security against tampering or deactivation attempts .
✅ Power supply:
Ajax Superior MotionCam (PhOD) Fibra is powered via a 24 V Fibre line , ensuring continuous operation , low power consumption and direct integration with the wired infrastructure of the alarm system.
✅ Auxiliary power supply:
The sealed LTO AA battery ensures operational continuity in the event of a main power failure , increasing system reliability even in critical situations.

Technical data sheet

143612.169.WH1
Communication
Fiber communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Line connection 4-core cable
Fiber line length up to 2,000 meters
up to 6,500 ft
When using the U/UTP cat.5 twisted pair.
Encrypted communication
Detection
Sensitive element 1 PIR sensor
Motion detection distance up to 12 meters
When installed at the height of 2.4 meters
Motion detection angles horizontal — 88.5°
vertical — 80°
Motion detection speed from 0.3 to 2.0 m/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the room
Sensitivity 3 levels
Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app.
Pet immunity up to 20 kg
up to 50 cm in height
False alarm prevention SmartDetect
Software algorithm
Temperature compensation Effective motion detection within −10 °C to +40 °C range
Photo verification
Photo by alarm The built-in camera is activated if the detector is armed and motion is detected.
Photo on demand The user takes pictures at any time or when the detector is armed (depending on settings). The feature is disabled by default.
Photo by scenario The detector's camera takes pictures automatically when other Ajax detectors are triggered. The feature is disabled by default
Photo by schedule The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher.
Photo by arming/disarming The detector automatically takes photos when the security state is changed.
Adjustable photo resolution 640 × 480 px
320 × 240 px (default)
160 × 120 px
Adjusted by a PRO or user with admin rights in the Ajax app
IR backlight For night photography and low light conditions.
Series of pictures from 1 to 5 snapshots
Adjusted by a PRO or user with admin rights in an Ajax app
Photo delivery up to 7 s — 160 × 120 px resolution
up to 9 s — 320 × 240 px resolution
up to 20 s — 640 × 480 px resolution
Photo delivery time depends on the image resolution selected in the device settings
Recommendations It is recommended to install the detector at the height of 2.4 meters. The device is designed for indoor use only.
Sabotage protection
Tamper alarm 2 tamper buttons
Both are needed to fasten the left or right side of the detector's mounting panel. The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel.
Protection against forgery devices authentication
Power supply
Fiber line power supply 7−30 V⎓, up to 500 mW
The detector is powered by the control panel.
Sealed battery LTO AA
It is used when the detector takes photos, activates an IR backlight, and transmits an alarm. The battery is charged from the Fiber line.
Enclosure
Color White
Dimension 135 × 70 × 66 mm
Weight 150 g
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Casing protection class IP50
Complete set Superior Superior MotionCam (PhOD) Fiber
SmartBracket mounting panel
Installation kit
Quick start guide
Warranty 24 months
