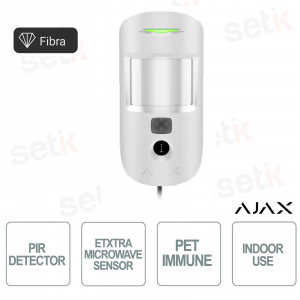

Ajax Superior MotionCam (PhOD) Fibra Bianco – Sensore PIR Cablato con Foto On Demand e Verifica Avanzata
AJAX FIBRA | 143612.169.WH1 (ex. 53771.169.WH1) #143612 | Ajax Superior MotionCam (PhOD) Fibra bianco è un rilevatore di movimento PIR cablato progettato per sistemi di sicurezza professionali che richiedono verifica fotografica avanzata anche su richiesta. Il sensore garantisce un rilevamento preciso fino a 12 metri con angolo di 88,5°, adattandosi alle variazioni ambientali grazie alla compensazione termica intelligente. La fotocamera integrata consente foto on demand, per allarme o scenario, con immagini nitide anche al buio tramite illuminazione a infrarossi. La comunicazione Fibra criptata fino a 2.000 metri assicura affidabilità continua, mentre protezione antisabotaggio e doppio tamper completano una soluzione di sicurezza evoluta e altamente professionale. Ajax
Riferimento: 143612.169.WH1
Marca: Ajax Systems
EAN: 4823114079184
Disponibilità: 47
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
143612.169.WH1 | RILEVATORE DI MOVIMENTO IR CABLATO CON FOTO-VERIFICA ESTESA

Ajax Superior MotionCam (PhOD) Fibra, 143612.169.WH1 (ex 53771.169.WH1), bianco è un rilevatore di movimento PIR cablato di fascia professionale, progettato per sistemi di sicurezza avanzati che richiedono verifica fotografica evoluta e controllo totale degli eventi. Il dispositivo assicura un rilevamento preciso fino a 12 metri con angolo di 88,5°, adattandosi alle variazioni ambientali grazie alla compensazione termica intelligente. La fotocamera integrata consente foto su richiesta, per allarme, scenario o programmazione, garantendo immagini chiare anche al buio tramite illuminazione a infrarossi. La comunicazione Fibra criptata fino a 2.000 metri e la protezione antisabotaggio con doppio tamper rendono il sensore ideale per installazioni professionali affidabili e sicure.
Specifiche principali:
- Rilevatore di movimento PIR cablato con sensore ad alta precisione
- Foto-verifica avanzata con foto on demand, per allarme e scenario
- Portata di rilevamento fino a 12 metri con angolo di 88,5°
- Illuminazione a infrarossi per scatti in assenza di luce
- Tecnologia di comunicazione Fibra criptata fino a 2.000 metri
- Immunità agli animali domestici e prevenzione dei falsi allarmi
- Protezione antisabotaggio con doppio tamper e autenticazione dispositivo
Ulteriori dettagli
Scheda tecnica
| 143612.169.WH1 | |
| Communication | |
| Fibra communication technology | Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection. Key features:
|
| Line connection | 4-core cable |
| Fibra line length | up to 2,000 meters up to 6,500 ft When using the U/UTP cat.5 twisted pair. Encrypted communication |
| Detection | |
| Sensitive element | 1 PIR sensor |
| Motion detection distance | up to 12 meters When installed at the height of 2.4 meters |
| Motion detection angles | horizontal — 88.5° vertical — 80° |
| Motion detection speed | from 0.3 to 2.0 m/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the room |
| Sensitivity | 3 levels Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app. |
| Pet immunity | up to 20 kg up to 50 cm in height |
| False alarm prevention | SmartDetect Software algorithm |
| Temperature compensation | Effective motion detection within −10 °C to +40 °C range |
| Photo verification | |
| Photo by alarm | The built-in camera is activated if the detector is armed and motion is detected. |
| Photo on demand | The user takes pictures at any time or when the detector is armed (depending on settings). The feature is disabled by default. |
| Photo by scenario | The detector’s camera takes pictures automatically when other Ajax detectors are triggered. The feature is disabled by default |
| Photo by schedule | The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher. |
| Photo by arming/disarming | The detector automatically takes photos when the security state is changed. |
| Adjustable photo resolution | 640 × 480 px 320 × 240 px (default) 160 × 120 px Adjusted by a PRO or user with admin rights in the Ajax app |
| IR backlight | For night photography and low light conditions. |
| Series of pictures | from 1 to 5 snapshots Adjusted by a PRO or user with admin rights in an Ajax app |
| Photo delivery | up to 7 s — 160 × 120 px resolution up to 9 s — 320 × 240 px resolution up to 20 s — 640 × 480 px resolution Photo delivery time depends on the image resolution selected in the device settings |
| Recommendations | It is recommended to install the detector at the height of 2.4 meters. The device is designed for indoor use only. |
| Sabotage protection | |
| Tamper alarm | 2 tamper buttons Both are needed to fasten the left or right side of the detector’s mounting panel. The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel. |
| Protection against forgery | devices authentication |
| Power supply | |
| Fibra line power supply | 7−30 V⎓, up to 500 mW The detector is powered by the control panel. |
| Sealed battery | LTO AA It is used when the detector takes photos, activates an IR backlight, and transmits an alarm. The battery is charged from the Fibra line. |
| Enclosure | |
| Color | White |
| Dimension | 135 × 70 × 66 mm |
| Weight | 150 g |
| Operating temperature range | from −10 °C to +40 °C from 14 °F to 104 °F |
| Operating humidity | up to 75% |
| Casing protection class | IP50 |
| Complete set | Superior Superior MotionCam (PhOD) Fibra SmartBracket mounting panel Installation kit Quick start guide |
| Warranty | 24 months |
