Dahua PFA197R Aluminum Junction Box, Resistant for Outdoor Use

Dahua PFA197R Aluminum Junction Box, Resistant for Outdoor Use

-57%

PFA197R - is a practical and durable junction box for camera mounting, made of aluminum alloy to ensure solidity and long life. Thanks to its compact and discreet design, it supports a load of up to 3 kg and is suitable for multiple camera models. Ideal for both indoor and outdoor environments, it operates perfectly in extreme conditions from -40°C to +60°C with humidity up to 90%, ensuring maximum protection of connections even in the presence of rain and dust. - Dahua

Technical Data Sheet

referencia : PFA197R

brand : Dahua

EAN: 6923172540591

Disponibilità: 10

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

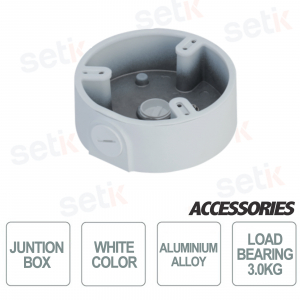

PFA197R | JUNCTION BOX - WHITE ALUMINUM


Dahua

The Dahua PFA197R junction box is a compact and durable bracket designed for professional camera installations. Its aluminum alloy construction ensures maximum protection for electrical connections in both indoor and outdoor environments, with reliable operation over a wide temperature range from -40°C to +60°C. Ideal for environments with humidity up to 90%, it is compatible with various cameras, offering convenience and durability.

Main specifications:

- Sturdy and durable aluminum alloy material

- Maximum load supported up to 3 kg

- Operating temperature from -40°C to +60°C

- Humidity resistance up to 90%

- Compact design with G3/4 thread for quick installation

Further details

Material:
The Dahua PFA197R junction box is made of aluminum alloy, a durable material that ensures solidity and long life. Aluminum is ideal for protecting camera connections from the elements, offering excellent corrosion resistance for both indoor and outdoor installations.
Operating temperature :
This mount is designed to operate over a wide temperature range from -40°C to +60°C, ensuring absolute reliability in both very cold environments and extreme weather conditions, such as direct exposure to sunlight or bad weather.
PFA197R dimensions

Technical data sheet

PFA197R

Structure

Material

Aluminum Alloy

Dimensions

Φ129.1mm × 45.0mm (Φ5.08" × 1.77")

Color

White

Net Weight

0.4 kg (0.88 lb)

Gross Weight

0.58 kg (1.27 lb)

Load Bearing

3.0 kg (6.61 lb)

Installation

Junction box mount

Screw Thread Type

G 3/4

Applicable Camera

Please see "Accessory Selection"

Product Dimensions

185.0 mm × 163.0 mm × 71.0 mm (7.28" × 6.42" × 2.8") (L × W × H)

Packaging Dimensions

578.0 mm × 383.0 mm × 349.0 mm (22.76" × 15.08" × 13.74") (L × W × H)

Packaging Method

30 pcs in each carton

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<90% (RH)

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

10%–90% (RH)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
