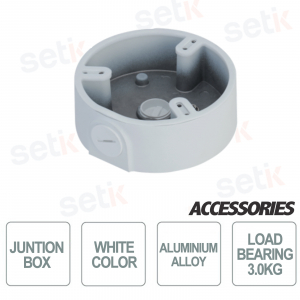

Dahua PFA197R Aluminum Junction Box, Resistant for Outdoor Use

Dahua PFA197R Aluminum Junction Box, Resistant for Outdoor Use

-57%

PFA197R - is a practical and durable junction box for camera mounting, made of aluminum alloy to ensure solidity and long life. Thanks to its compact and discreet design, it supports a load of up to 3 kg and is suitable for multiple camera models. Ideal for both indoor and outdoor environments, it operates perfectly in extreme conditions from -40°C to +60°C with humidity up to 90%, ensuring maximum protection of connections even in the presence of rain and dust. - Dahua

Technical Data Sheet

Reference: PFA197R

Brand: Dahua

EAN: 6923172540591

Disponibilità: 10

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

PFA197R | JUNCTION BOX - WHITE ALUMINUM


Dahua

The Dahua PFA197R junction box is a compact and durable bracket designed for professional camera installations. Its aluminum alloy construction ensures maximum protection for electrical connections in both indoor and outdoor environments, with reliable operation over a wide temperature range from -40°C to +60°C. Ideal for environments with humidity up to 90%, it is compatible with various cameras, offering convenience and durability.

Main specifications:

- Sturdy and durable aluminum alloy material

- Maximum load supported up to 3 kg

- Operating temperature from -40°C to +60°C

- Humidity resistance up to 90%

- Compact design with G3/4 thread for quick installation

Further details

Material:
The Dahua PFA197R junction box is made of aluminum alloy, a durable material that ensures solidity and long life. Aluminum is ideal for protecting camera connections from the elements, offering excellent corrosion resistance for both indoor and outdoor installations.
Operating temperature :
This mount is designed to operate over a wide temperature range from -40°C to +60°C, ensuring absolute reliability in both very cold environments and extreme weather conditions, such as direct exposure to sunlight or bad weather.
PFA197R dimensions

Technical data sheet

PFA197R

Structure

Material

Aluminum Alloy

Dimensions

Φ129.1mm × 45.0mm (Φ5.08" × 1.77")

Color

White

Net Weight

0.4 kg (0.88 lb)

Gross Weight

0.58 kg (1.27 lb)

Load Bearing

3.0 kg (6.61 lb)

Installation

Junction box mount

Screw Thread Type

G 3/4

Applicable Camera

Please see "Accessory Selection"

Product Dimensions

185.0 mm × 163.0 mm × 71.0 mm (7.28" × 6.42" × 2.8") (L × W × H)

Packaging Dimensions

578.0 mm × 383.0 mm × 349.0 mm (22.76" × 15.08" × 13.74") (L × W × H)

Packaging Method

30 pcs in each carton

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<90% (RH)

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

10%–90% (RH)
