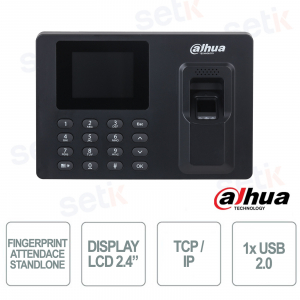

ASA1222EL-S Time Attendance Terminal: Fingerprint and USB - Dahua

ASA1222EL-S Time Attendance Terminal: Fingerprint and USB - Dahua

 
-57% nuevo

ASA1222EL-S - The terminal is a compact time attendance system with a 2.4" LCD display, mechanical keyboard, and optical biometric fingerprint reader. It supports fast recognition in 2 seconds, user management of up to 1,000 people, 2,000 fingerprints, and 100,000 records. It includes password or fingerprint access options, weekly and monthly shift management, data export via USB or network, online firmware updates, with low power consumption ≤ 5W and TCP/IP connection. Dahua

Technical Data Sheet

referencia : ASA1222EL-S

brand : Dahua

EAN: 6923172578914

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

ASA1222EL-S | TIME ATTENDENCE TCP/IP TERMINAL WITH TOUCH DISPLAY

Dahua

The Dahua ASA1222EL-S is a full-featured time and attendance terminal with fingerprint recognition, password protection, and TCP/IP networking. It offers advanced management of up to 1,000 users, 2,000 fingerprints, and 100,000 records, making it perfect for small and medium-sized businesses. Thanks to its 2.4" LCD display, USB data export, online firmware updates, and weekly shift scheduling, it ensures simple and intuitive time and attendance management.

Main specifications:

- 2.4” display with intuitive interface

- Fast recognition in 2 seconds via fingerprint

- Management of up to 1,000 users and 100,000 registrations

- Data export via USB or TCP/IP network

- Online firmware updates and monthly shift management

Further details

✅ Clear and intuitive display:
Equipped with a 2.4-inch color LCD screen with 320x240 resolution, it offers a user-friendly interface to clearly display all information related to attendance, shift management and recordings.
✅ Quick recognition :
The optical biometric reader enables accurate fingerprint reading in just 2 seconds, with password and badge identification options for flexible security.
✅ Advanced attendance and shift management :
It supports up to 1,000 users, 2,000 fingerprints, and 100,000 records. Weekly and monthly shifts can be scheduled, with support for dual time zones and overtime.
✅ Quick and easy data export:
Recordings can be conveniently exported via USB or sent directly to the SmartPSS Lite software over the network, making it easy to manage data without complex software.
✅ Reliable TCP/IP connection:
Thanks to the RJ45 port, the terminal can be easily connected to the company network, allowing online firmware updates, real-time monitoring and centralized management via LAN network.
ASA1222EL-S dimensions

Technical data sheet

Model ASA1222EL-S
System
Main Processor Embedded Processor
Button Type Mechanical
Network Protocol UDP; TCP; IPv4
Basic
Display Screen 2.4" TFT
Product Type Standalone Attendance
Screen Type Non-touchscreen
Screen Resolution 320 × 240
Voice Prompt Yes
Casing Material PC + ABS
Function
Network Update Yes
Real-time Monitoring Yes
Auto Registration

Yes
Performance
Fingerprint Sensor Type Optical fingerprint
Fingerprint Verification Mode 1:N
Fingerprint Recognition Time 2 s
Attendance
Export Attendance Record USB flash drive export
Attendance Check Mode Free attendance; Fixed attendance
Attendance Statistics Yes
Department Setting Yes
Schedule Setting Yes
User
User (Card) Type General user
Capacity
User Capacity 1,000
Fingerprint Capacity 2,000
Password Capacity 1,000
Record Capacity 100,000
Port
USB 1 × USB 2.0 port
Network Port 1 × RJ-45
General
Power Adapter Included
Power Supply

5 VDC, 1 A
Power Consumption

≤ 5 W (Working)
Product Dimensions

175.5 mm × 120.0 mm × 30.0 mm (6.91" × 4.72" × 1.18")
Packaging Dimensions

248 mm × 143 mm × 66 mm (9.76" × 5.63" × 2.60") (L × W × H, in an inner carton)
351 mm × 261 mm × 304 mm (13.82" × 10.28" × 11.97") (L × W × H, protection box)
Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity

5%–95% (RH)
Operating Environment

Indoor
Gross Weight

0.37 kg (0.82 lb)
Installation

Surface Mount
Certifications

CE; FCC
Storage Temperature

–20 °C to +60 °C (–22 °F to +140 °F)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
