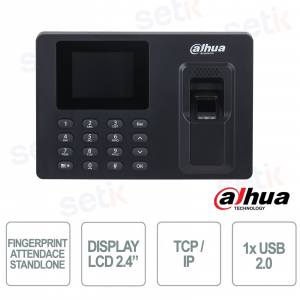

ASA1222EL-S | TIME ATTENDENCE TCP/IP TERMINAL WITH TOUCH DISPLAY

The Dahua ASA1222EL-S is a full-featured time and attendance terminal with fingerprint recognition, password protection, and TCP/IP networking. It offers advanced management of up to 1,000 users, 2,000 fingerprints, and 100,000 records, making it perfect for small and medium-sized businesses. Thanks to its 2.4" LCD display, USB data export, online firmware updates, and weekly shift scheduling, it ensures simple and intuitive time and attendance management.
Main specifications:
- 2.4” display with intuitive interface
- Fast recognition in 2 seconds via fingerprint
- Management of up to 1,000 users and 100,000 registrations
- Data export via USB or TCP/IP network
- Online firmware updates and monthly shift management
Further details

Technical data sheet
Model | ASA1222EL-S |
System | |
Main Processor | Embedded Processor |
Button Type | Mechanical |
Network Protocol | UDP; TCP; IPv4 |
Basic | |
Display Screen | 2.4" TFT |
Product Type | Standalone Attendance |
Screen Type | Non-touchscreen |
Screen Resolution | 320 × 240 |
Voice Prompt | Yes |
Casing Material | PC + ABS |
Function | |
Network Update | Yes |
Real-time Monitoring | Yes |
Auto Registration |
Yes |
Performance | |
Fingerprint Sensor Type | Optical fingerprint |
Fingerprint Verification Mode | 1:N |
Fingerprint Recognition Time | 2 s |
Attendance | |
Export Attendance Record | USB flash drive export |
Attendance Check Mode | Free attendance; Fixed attendance |
Attendance Statistics | Yes |
Department Setting | Yes |
Schedule Setting | Yes |
User | |
User (Card) Type | General user |
Capacity | |
User Capacity | 1,000 |
Fingerprint Capacity | 2,000 |
Password Capacity | 1,000 |
Record Capacity | 100,000 |
Port | |
USB | 1 × USB 2.0 port |
Network Port | 1 × RJ-45 |
General | |
Power Adapter | Included |
Power Supply |
5 VDC, 1 A |
Power Consumption |
≤ 5 W (Working) |
Product Dimensions |
175.5 mm × 120.0 mm × 30.0 mm (6.91" × 4.72" × 1.18") |
Packaging Dimensions |
248 mm × 143 mm × 66 mm (9.76" × 5.63" × 2.60") (L × W × H, in an inner carton) |
Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
Operating Humidity |
5%–95% (RH) |
Operating Environment |
Indoor |
Gross Weight |
0.37 kg (0.82 lb) |
Installation |
Surface Mount |
Certifications |
CE; FCC |
Storage Temperature |
–20 °C to +60 °C (–22 °F to +140 °F) |
