5-PORT UNMANAGED NETWORK SWITCH + THUNDERPROOF 2KV - DAHUA - SMG1005

Dahua Technology

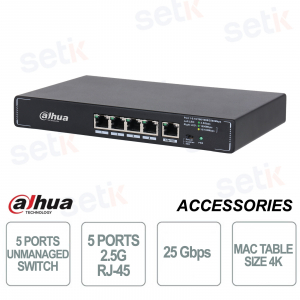

5-Port Network Switch - Dahua - SMG1005
5 × RJ-45 10/100/1000/2500 Mbps - not manageable. MAC Table Size 4K - Packet Buffer 8 Mbit - Switching Capacity 25Gbps - Power Consumption at idle: ≤ 1.3 W; full load: 5.38 W - Lightning Protection 2kV - Dimensions 220 mm × 141 mm × 30 mm
Product details
SMG1005
  • Network Switch - Dahua - SMG1005
  • 5 Ports: 5 × RJ-45 10/100/1000/2500 Mbps
  • Not Managed
  • Packet buffer size 8 Mbit
  • MAC Table Size 4K
  • 40Gbps switching capacity
  • Lightning protection: 4kV Common / 2kV Differential
  • Dimensions: 220mm × 141mm × 30mm
  • Weight: 0.68 kg
  • Supported operating temperature:–10°C to +55°C

Technical data sheet

Model SMG1005
Basic
Layer Unmanaged
Switching Capacity 25 Gbps
Packet Forwarding Rate 18.6Mpps
Description of Function Slots Port 1-5: 5 × RJ-45 10/100/1000/2500 Mbps
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External power supply: 12 VDC, max 1 A
Power Consumption Idling: ≤1.3W ; Full load: 5.38W
Statics Protection Air discharge: 8 kV; Contact discharge: 6 kV
Lightning Protection Common mode: 4 kV; Differential mode: 2 kV
Net Weight 0.68 kg (1.49 lb)
Gross Weight 0.942 kg (2.07 lb)
Product Dimensions 220 mm × 141 mm × 30 mm (8.66" × 5.55" × 1.18") (L × W × H)
Packaging Dimensions 297 mm × 163 mm × 71 mm (11.69" × 6.41" × 2.79") (L × W × H)
Casing Material Metal
Installation Desktop mount; rack mount
Certifications THERE IS
PoE
PoE No
Hardware
DIP Switch Default: Default setting
Post isolation: Prevents traffic from being sent between ports 1-4, but allows ports 1-4 to send its traffic to the uplink ports 5. These uplink ports can also send their traffic to 1-4.
EEE: Energy Efficient Ethernet (EEE) function.
Performance
Packet Buffer Memory 8 Mbit
Jumbo Frame 12K Bytes
MAC Table Size 4K
Communication Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad; IEEE 802.3ae
General
Packing List 1 × User Manual; 1 × Legal and Regulatory Information; 1 × Power Adapter; 1 × Mounting Kit;

Further details

SMG1005 dimensions
