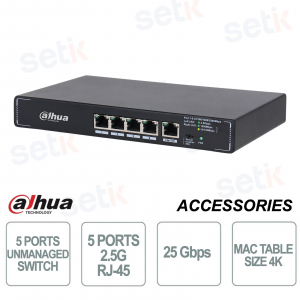

5-PORT UNMANAGED NETWORK SWITCH + THUNDERPROOF 2KV - DAHUA - SMG1005

5 × RJ-45 10/100/1000/2500 Mbps - not manageable. MAC Table Size 4K - Packet Buffer 8 Mbit - Switching Capacity 25Gbps - Power Consumption at idle: ≤ 1.3 W; full load: 5.38 W - Lightning Protection 2kV - Dimensions 220 mm × 141 mm × 30 mm

- Network Switch - Dahua - SMG1005
- 5 Ports: 5 × RJ-45 10/100/1000/2500 Mbps
- Not Managed
- Packet buffer size 8 Mbit
- MAC Table Size 4K
- 40Gbps switching capacity
- Lightning protection: 4kV Common / 2kV Differential
- Dimensions: 220mm × 141mm × 30mm
- Weight: 0.68 kg
- Supported operating temperature:–10°C to +55°C
Technical data sheet
Model | SMG1005 |
Basic | |
Layer | Unmanaged |
Switching Capacity | 25 Gbps |
Packet Forwarding Rate | 18.6Mpps |
Description of Function Slots | Port 1-5: 5 × RJ-45 10/100/1000/2500 Mbps |
Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
Operating Humidity | 10%–90% (RH), non-condensing |
Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
Storage Humidity | 5%–95% (RH), non-condensing |
Power Supply | External power supply: 12 VDC, max 1 A |
Power Consumption | Idling: ≤1.3W ; Full load: 5.38W |
Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
Lightning Protection | Common mode: 4 kV; Differential mode: 2 kV |
Net Weight | 0.68 kg (1.49 lb) |
Gross Weight | 0.942 kg (2.07 lb) |
Product Dimensions | 220 mm × 141 mm × 30 mm (8.66" × 5.55" × 1.18") (L × W × H) |
Packaging Dimensions | 297 mm × 163 mm × 71 mm (11.69" × 6.41" × 2.79") (L × W × H) |
Casing Material | Metal |
Installation | Desktop mount; rack mount |
Certifications | THERE IS |
PoE | |
PoE | No |
Hardware | |
DIP Switch | Default: Default setting Post isolation: Prevents traffic from being sent between ports 1-4, but allows ports 1-4 to send its traffic to the uplink ports 5. These uplink ports can also send their traffic to 1-4. EEE: Energy Efficient Ethernet (EEE) function. |
Performance | |
Packet Buffer Memory | 8 Mbit |
Jumbo Frame | 12K Bytes |
MAC Table Size | 4K |
Communication Standard | IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad; IEEE 802.3ae |
General | |
Packing List | 1 × User Manual; 1 × Legal and Regulatory Information; 1 × Power Adapter; 1 × Mounting Kit; |
