Dahua S5428-24GT4XF Switch | 28 Gigabit L2+ Ports with 10G Uplink for Reliable Business Networks

Dahua S5428-24GT4XF Switch | 28 Gigabit L2+ Ports with 10G Uplink for Reliable Business Networks

-57% nuevo

The S5428-24GT4XF is a 28-port L2+ managed switch with 4 10G SFP+ uplinks, designed to ensure high performance and maximum reliability in corporate networks. Thanks to VLAN, STP/RSTP/ERPS support and link aggregation, it ensures stability, redundancy and protection against network loops. Rugged and secure, it operates in extreme conditions (-20°C ~ +55°C) with redundant power supplies and lightning protection circuits, ensuring business continuity. Management is simplified via the DoLynk Care cloud, web interface and SNMP, making it ideal for SMEs, schools, hotels and public infrastructures. A compact, reliable device ready for digital transformation. Dahua

Technical Data Sheet

referencia : S5428-24GT4XF

brand : Dahua

EAN: 6923172563361

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

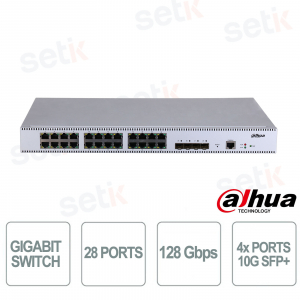

S5428-24GT4XF | GIGABIT MANAGED SWITCH 28 PORTS - 4 PORTS 10G SFP


Dahua

The Dahua S5428-24GT4XF is a 28-port Gigabit L2+ managed switch with 4 10G SFP+ uplinks, ideal for modern enterprise networks requiring high performance, reliability, and advanced management. Designed for professional environments, it ensures stability with support for VLAN, STP/RSTP/ERPS, and link aggregation, offering protection against network loops and business continuity with redundant power supply. Resistant to extreme conditions, it integrates advanced security features, cloud management, and an intuitive web interface.

Main specifications:

- 28 Gigabit ports + 4 10G SFP+ uplinks

- VLAN, STP/RSTP/ERPS support

- Redundant power supply and lightning protection

- Management via DoLynk Care cloud, web and SNMP

- Operation from –20 °C to +55 °C

Further details

Number of doors:
The switch offers 28 total ports , including 24 Gigabit RJ-45 ports (10/100/1000 Mbps) and 4 10G SFP+ ports dedicated to high-speed uplinks. This configuration ensures maximum flexibility and support for complex network infrastructures.
Spanning Tree Protocol (STP):
It integrates STP, RSTP, and ERPS , protocols that calculate the best path across a Layer 2 network, avoiding loops and broadcast storms. This ensures traffic stability and redundancy, essential for reliable enterprise networks.
10G Uplink :
The four 10 Gigabit SFP+ uplinks enable high-speed connections, ideal for network backbones or server and storage connections. The available bandwidth allows for heavy traffic to be handled without bottlenecks.
Cloud Management :
Thanks to the DoLynk Care platform, the switch can be managed remotely via a web interface and SNMP protocol. This simplifies maintenance, reduces operating costs, and ensures centralized and secure control.
Network Topology Management :
It supports the LLDP protocol , which allows for automatic generation and display of network topology. This feature facilitates problem diagnosis and remote management, optimizing technical response times.
Performance :
With a switching capacity of 128 Gbps and a forwarding rate of 95.232 Mpps , the switch guarantees high performance. It integrates 16 Mbit buffers, support for 12,288-byte jumbo frames, and a 32K address MAC table, features that make it ideal for high-traffic networks and advanced applications.

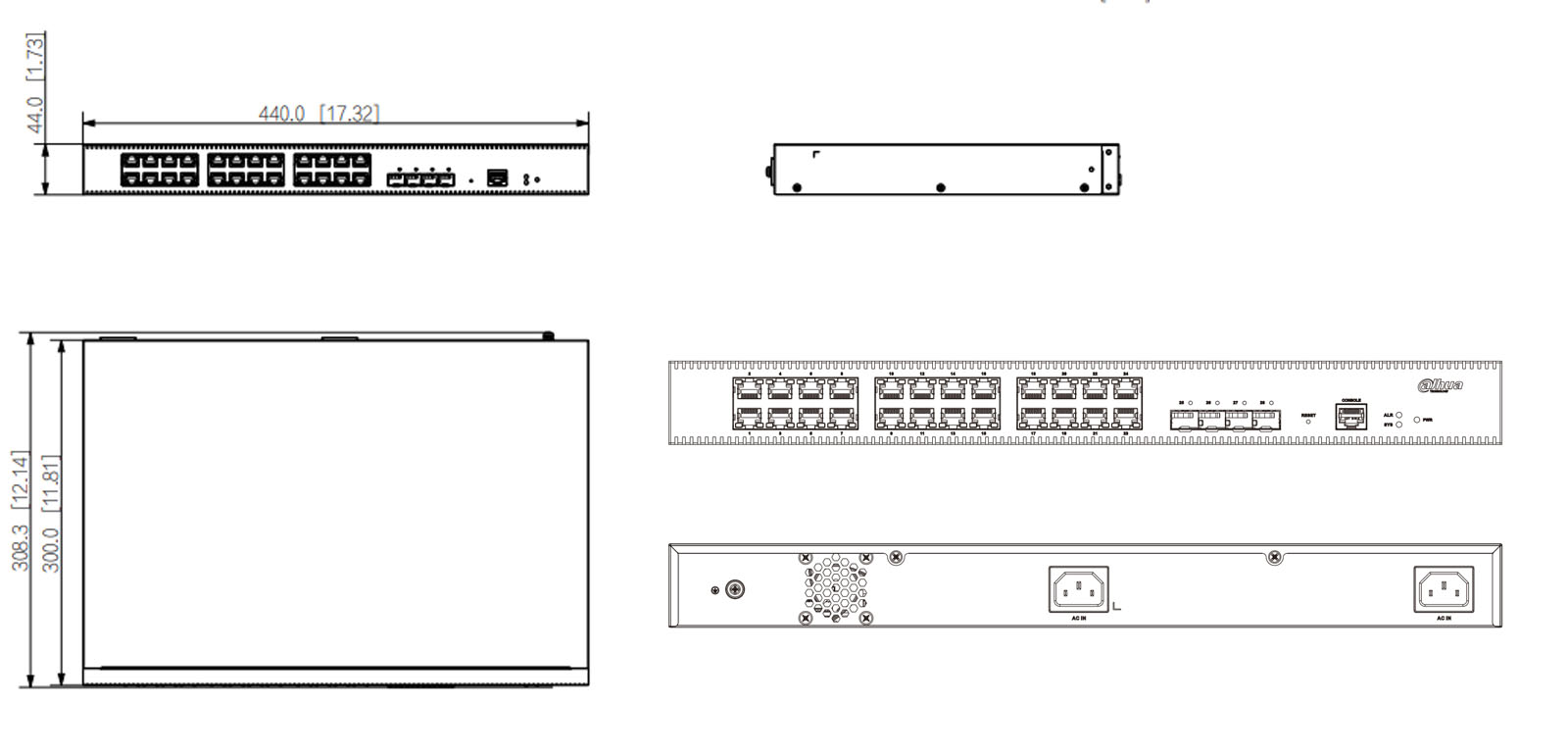

S5428-24GT4XF dimensions

Technical data sheet

Model S5428-24GT4XF
Basic
Layer

Layer 2

Switching Capacity

128 Gbps

Packet Forwarding Rate

95.232 Mpps

Description of Function Slots

Port 1-24: 24 × RJ-45 10/100/1000 Mbps
Port 25-28: 4 × SFP+ 1/10 Gbps

Operating Humidity

–20 °C to +55 °C (–4 °F to +131 °F)

Operating Humidity

5%–95% (RH), non-condensing

Storage Humidity

5%–95% (RH), non-condensing

Power Supply

2 built-in power supplies: 100–240 VAC, 50/60 Hz, 0.8 A

Power Consumption

Idling load: 13 W
Full load: 48 W

Statics Protection

Air discharge: 8kV
Contact discharge: 6kV

Lighting Protection

Common mode: 4kV
Differential mode: 2 kV

Net Weight

3.3 kg (7.28 lb)

Gross Weight

4.8 kg (10.58 lb)

Dimensions

440 mm × 308.3 mm × 44.0 mm (17.32" × 12.14" × 1.73") (L × W × H)

Packaging Dimensions

528 mm × 412 mm × 112 mm (20.79" × 16.22" × 4.41") (L × W × H)

Installation

Rack mount; desktop mount

Hardware

Debugging

1 × Console port

Reset Button

1

Performance

Packet Buffer Size

16 Mbit

Jumbo Frame

12288 Bytes

MAC Table Size

32K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad

VLAN Number

4094

VLAN Interface

10

Feature

Ethernet Loop Protection

STP/RSTP/ERPS

VLAN Function Port-based VLAN
Link Aggregation LACP
Static link aggregation
Dynamic link aggregation
Port Feature IEEE 802.3x flow control
Unknown unicast suppression
Multicast storm control
Broadcast storm control
IEEE 802.3x Flow Control Yes
Multicast IGMP Snooping
Reliability LLDP
Routing Static routing
DHCP Function DHCP Client
Security 802.1X
Port isolation
Radius
HTTPS
QoS/ACL SP/WRR queue scheduling
802.1p and DSCP priority mapping
Port speed limit
Equipment Management Cloud management
Web
SNMP V1/V2C/V3
NTP
Logs
Ping
General
Packing List

1 × User Manual;
1 × Legal and Regulatory Information;
1 × Warranty Card
1 × List of Hazardous Substances
1 × Power Cord;
1 × Rack-mounting Kit;

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
