S5428-24GT4XF | SWITCH GIGABIT MANAGED 28 PORTE - 4 PORTE 10G SFP

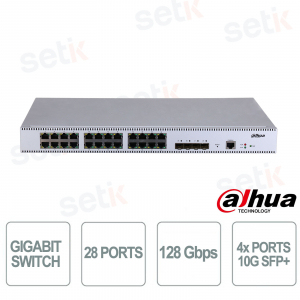

Il Dahua S5428-24GT4XF è uno switch gestito L2+ a 28 porte Gigabit con 4 uplink 10G SFP+, ideale per reti aziendali moderne che richiedono alte prestazioni, affidabilità e gestione avanzata. Progettato per ambienti professionali, garantisce stabilità grazie al supporto di VLAN, STP/RSTP/ERPS e link aggregation, offrendo protezione contro loop di rete e continuità operativa con alimentazione ridondata. Resistente alle condizioni estreme, integra funzioni di sicurezza avanzate, gestione cloud e interfaccia web intuitiva.
Specifiche principali:
- 28 porte Gigabit + 4 uplink 10G SFP+
- Supporto VLAN, STP/RSTP/ERPS
- Alimentazione ridondata e protezione contro i fulmini
- Gestione tramite cloud DoLynk Care, web e SNMP
- Funzionamento da –20 °C a +55 °C
Ulteriori dettagli

Scheda tecnica
Model | S5428-24GT4XF |
Basic | |
Layer |
Layer 2 |
Switching Capacity |
128 Gbps |
Packet Forwarding Rate |
95.232 Mpps |
Description of Function Slots |
Port 1-24: 24 × RJ-45 10/100/1000 Mbps |
Operating Humidity |
–20 °C to +55 °C (–4 °F to +131 °F) |
Operating Humidity |
5%–95% (RH), non-condensing |
Storage Humidity |
5%–95% (RH), non-condensing |
Power Supply |
2 built-in power supplies: 100–240 VAC, 50/60 Hz, 0.8 A |
Power Consumption |
Idling load: 13 W |
Statics Protection |
Air discharge: 8kV |
Lighting Protection |
Common mode: 4kV |
Net Weight |
3.3 kg (7.28 lb) |
Gross Weight |
4.8 kg (10.58 lb) |
Dimensions |
440 mm × 308.3 mm × 44.0 mm (17.32" × 12.14" × 1.73") (L × W × H) |
Packaging Dimensions |
528 mm × 412 mm × 112 mm (20.79" × 16.22" × 4.41") (L × W × H) |
Installation |
Rack mount; desktop mount |
Hardware |
|
Debugging |
1 × Console port |
Reset Button |
1 |
Performance |
|
Packet Buffer Size |
16 Mbit |
Jumbo Frame |
12288 Byte |
MAC Table Size |
32K |
Communication Standard |
IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad |
VLAN Number |
4094 |
VLAN Interface |
10 |
Feature |
|
Ethernet Loop Protection |
STP/RSTP/ERPS |
VLAN Function | Port-based VLAN |
Link Aggregation | LACP Static link aggregation Dynamic link aggregation |
Port Feature | IEEE 802.3x flow control Unknown unicast suppression Multicast storm control Broadcast storm control |
IEEE 802.3x Flow Control | Yes |
Multicast | IGMP Snooping |
Reliability | LLDP |
Routing | Static routing |
DHCP Function | DHCP Client |
Security | 802.1X Port isolation Radius HTTPS |
QoS/ACL | SP/WRR queue scheduling 802.1p and DSCP priority mapping Port speed limit |
Equipment Management | Cloud management Web SNMP V1/V2C/V3 NTP Logs Ping |
General | |
Packing List |
1 × User Manual; |
