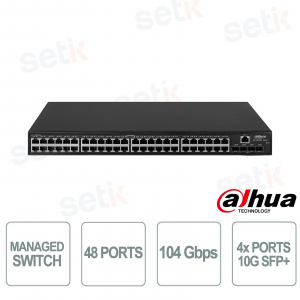

AS4300-48GT4GF | SWITCH MANAGED 48 PORTS - 4 PORTS 10G SFP


Dahua

The Dahua AS4300-48GT4GF is an L2+ managed switch with 48 Gigabit RJ-45 ports and 4 SFP uplinks, designed for small and medium-sized businesses requiring reliability, security, and advanced network management. The IRF2 framework enables long-distance stacking, while the fanless design reduces power consumption and noise. It supports advanced features such as VLAN, STP/RSTP/MSTP, Link Aggregation, and static routing, offering maximum efficiency and control. With a switching capacity of 104 Gbps and a forwarding rate of 77.4 Mpps, it guarantees high performance in digital transformation scenarios.

Main specifications:

- 48 Gigabit RJ-45 ports + 4 SFP uplinks

- VLAN, STP/RSTP/MSTP and Link Aggregation support

- 104 Gbps switching capacity and 77.4 Mpps forwarding rate

- Quiet and efficient fanless design

- Advanced L2+P security and management features

Further details

Number of doors:
The switch offers 48 Gigabit RJ-45 ports and 4 100 Mbps/1 Gbps SFP uplinks , providing ample connectivity options for enterprise networks and high-density device scenarios.
Intelligent Resilient Framework 2 (IRF2):
IRF2 stacking technology allows multiple switches to be connected together over long distances, even kilometers, improving scalability, redundancy, and service continuity.
Green and Fan-less Design :
The fanless design reduces energy consumption and points of failure, ensuring quiet and efficient operation, ideal for offices, schools and environments requiring acoustic comfort.
Performance :
With a switching capacity of 104 Gbps , a packet forwarding rate of 77.4 Mpps , a 24 Mbit buffer and support for Jumbo Frames up to 10K bytes , the switch ensures high performance and stability even in complex networks.

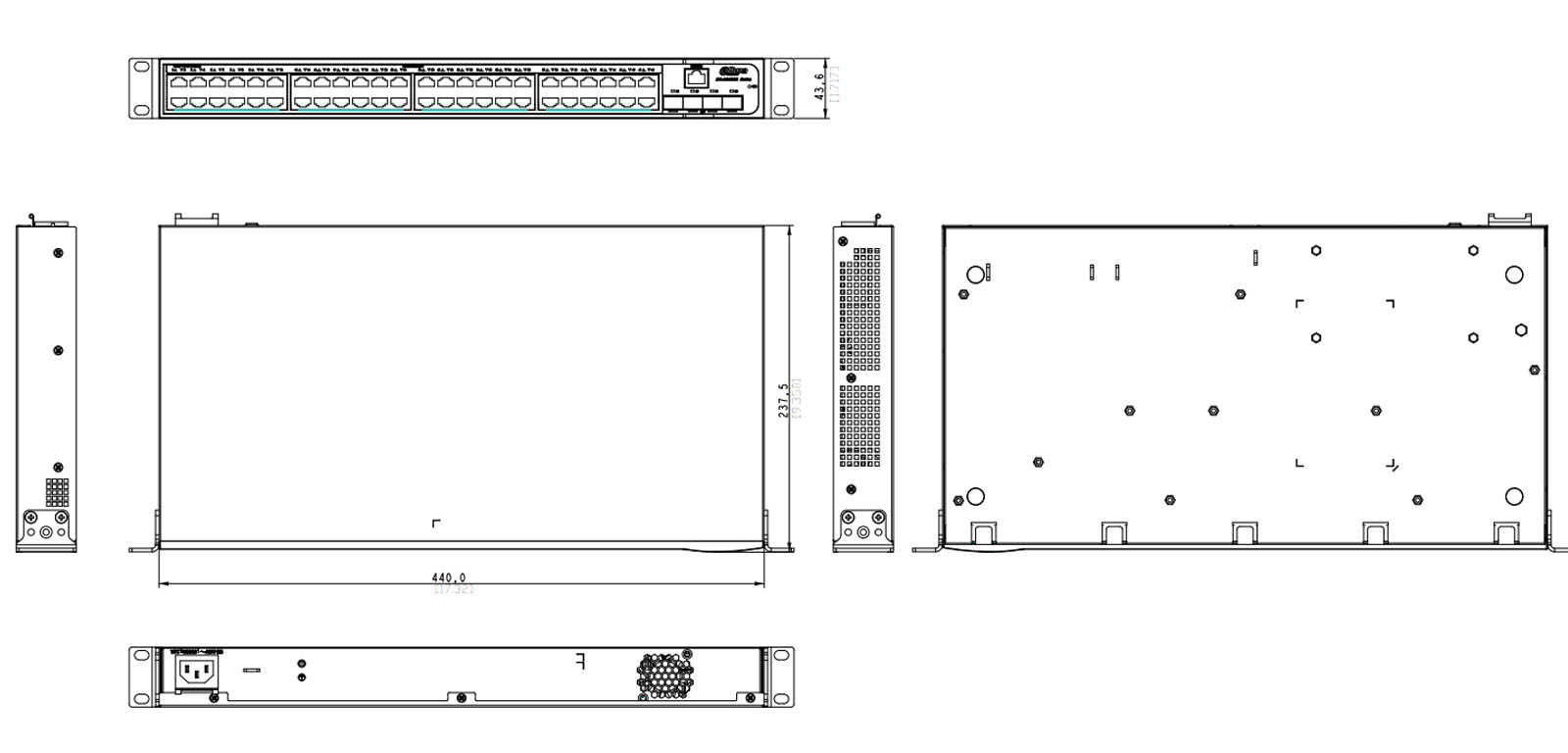

AS4300-48GT4GF dimensions

Technical data sheet

Model AS4300-48GT4GF
Hardware
Power Adapter Included

Yes

PoE

No

Ethernet Port

48 × RJ-45 10/100/1000 Mbps

Optical Port

4 × SFP 100 Mbps/1 Gbps

Ethernet Port Speed

10/100/1000 Mbps

Optical Port Uplink Speed

100 Mbps/1 Gbps

Description of Function Slots

Port 1-48:48 × RJ-45 10/100/1000 Mbps;
Port 49-52:4 × SFP 100Mbps/1Gbps

Management port

1 × Console port

Power Supply

100–240 VAC, 50/60 Hz, 2.0 A

Operating Temperature

–5 °C to +45 °C (+23 °F to +113 °F)

Operating Humidity

5%–95% (RH)

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH)

Fanless Design

5.3 kg (11.68 lb)

Dimensions

Yes

Power Consumption

Idling: 18 W
Full load: 41 W

Performance

Layer

L2+

Management Type

Yes

MTBF

115.68 years

Switching Capacity

104 Gbps

Packet Forwarding Rate

77.4 Mpps

Packet Buffer Size

24 Mbit

Jumbo Frame

10K Bytes

MAC Table Size

8K

VLAN Number

4K

Dynamic ARP

128

Communication Standard

802.3x; 802.3ad; 802.1p; 802.1q; 802.1x; 802.1d; 802.1w; 802.1s

Feature

Ethernet Loop Protection

STP/RSTP/MSTP
PVST

Routing

Static routing
IPV6 unitcast routing

VLAN Function Port-based VLAN
MAC-based VLAN
Link Aggregation Static link aggregation
Dynamic link aggregation
IEEE 802.3x Flow Control Yes
Multicast IGMP Snooping
PIM Snooping
Reliability LLDP
ARP ARP, Gratuitous ARP
Dynamic ARP Inspection
ARP anti-attack
ARP source suppression
ARP Detection
DHCP Function DHCP Client
DHCP Relay
Security 802.1X, centralized MAC address authentication
Port isolation
Dynamic ARP detection, preventing man-in-the-middle attack and ARP denial-of-service
IP/Port/MAC binding
QoS/ACL Packet filtering (Layer 2 to Layer 4)
Source MAC-, destination MAC-, Source IP (IPv4/IPv6)-, destination IP (IPv4/IPv6)-, TCP/UDP port number-, VLAN-based traffic classification
Time-based ACL
Two-way ACL policy (ingress and egress)
IPv6 ND
IPv6-Ping
IPv6-Tracert
IPv6-Telnet
Equipment Management Load update files and update using FTP
Configure through CLI, Telnet, and Console port
SNMP V1/V2C/V3
NTP
Ping and Tracert
LLDP
Port loopback detection
General
Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 1 kV
Differential mode: 0.5 kV

Net Weight 3.5 kg (7.72 lb)
Gross Weight

4.5 kg (9.92 lb)

Product Dimensions

440 mm × 230 mm × 44 mm (17.32" × 9.06" × 1.73") (L × W × H)

Packaging Dimensions

542mm × 366mm × 106mm (21.34" × 14.40" × 4.17") (L × W × H)

Casing Material

Sheet metal

Installation

Desktop mount; rack mount

Certifications

CE; FCC
