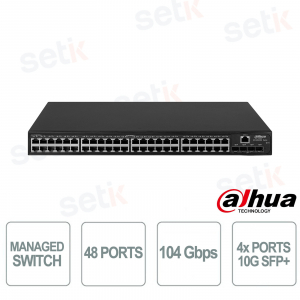

AS4300-48GT4GF | SWITCH MANAGED 48 PORTE - 4 PORTE 10G SFP

Il Dahua AS4300-48GT4GF è uno switch gestito L2+ con 48 porte Gigabit RJ-45 e 4 uplink SFP, progettato per piccole e medie imprese che necessitano di affidabilità, sicurezza e gestione avanzata della rete. Grazie al framework IRF2 consente stacking su lunghe distanze, mentre il design fanless riduce consumi ed emissioni sonore. Supporta funzioni avanzate come VLAN, STP/RSTP/MSTP, Link Aggregation e routing statico, offrendo massima efficienza e controllo. Con una capacità di switching da 104 Gbps e un forwarding rate di 77,4 Mpps, garantisce prestazioni elevate in scenari di trasformazione digitale.
Specifiche principali:
- 48 porte Gigabit RJ-45 + 4 uplink SFP
- Supporto VLAN, STP/RSTP/MSTP e Link Aggregation
- Capacità di switching 104 Gbps e forwarding rate 77,4 Mpps
- Design fanless silenzioso ed efficiente
- Funzioni avanzate di sicurezza e gestione L2+P
Ulteriori dettagli

Scheda tecnica
| Model | AS4300-48GT4GF |
| Hardware | |
| Included Power Adapter |
Yes |
| PoE |
No |
| Ethernet Port |
48 × RJ-45 10/100/1000 Mbps |
| Optical Port |
4 × SFP 100 Mbps/1 Gbps |
| Ethernet Port Speed |
10/100/1000 Mbps |
| Optical Port Uplink Speed |
100 Mbps/1 Gbps |
| Description of Function Slots |
Port 1-48:48 × RJ-45 10/100/1000 Mbps; |
| Management port |
1 × Console port |
| Power Supply |
100–240 VAC, 50/60 Hz, 2.0 A |
| Operating Temperature |
–5 °C to +45 °C (+23 °F to +113 °F) |
| Operating Humidity |
5%–95% (RH) |
| Storage Temperature |
–40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity |
5%–95% (RH) |
| Fanless Design |
5.3 kg (11.68 lb) |
| Dimensions |
Yes |
| Power Consumption |
Idling: 18 W |
|
Performance |
|
| Layer |
L2+ |
| Management Type |
Yes |
| MTBF |
115.68 years |
| Switching Capacity |
104 Gbps |
| Packet Forwarding Rate |
77.4 Mpps |
| Packet Buffer Size |
24 Mbit |
| Jumbo Frame |
10K Byte |
| MAC Table Size |
8K |
| VLAN Number |
4K |
| Dynamic ARP |
128 |
| Communication Standard |
802.3x; 802.3ad; 802.1p; 802.1q; 802.1x; 802.1d; 802.1w; 802.1s |
|
Feature |
|
| Ethernet Loop Protection |
STP/RSTP/MSTP |
| Routing |
Static routing |
| VLAN Function | Port-based VLAN MAC-based VLAN |
| Link Aggregation | Static link aggregation Dynamic link aggregation |
| IEEE 802.3x Flow Control | Yes |
| Multicast | IGMP Snooping PIM Snooping |
| Reliability | LLDP |
| ARP | ARP, Gratuitous ARP Dynamic ARP Inspection ARP anti-attack ARP source suppression ARP Detection |
| DHCP Function | DHCP Client DHCP Relay |
| Security | 802.1X, centralized MAC address authentication Port isolation Dynamic ARP detection, preventing man-in-the-middle attack and ARP denial-of-service IP/Port/MAC binding |
| QoS/ACL | Packet filtering (Layer 2 to Layer 4) Source MAC-, destination MAC-, Source IP (IPv4/IPv6)-, destination IP (IPv4/IPv6)-, TCP/UDP port number-, VLAN-based traffic classification Time-based ACL Two-way ACL policy (ingress and egress) |
| IPv6 | ND IPv6-Ping IPv6-Tracert IPv6-Telnet |
| Equipment Management | Load update files and update using FTP Configure through CLI, Telnet, and Console port SNMP V1/V2C/V3 NTP Ping and Tracert LLDP Port loopback detection |
| General | |
| Statics Protection |
Air discharge: 8 kV |
| Lighting Protection |
Common mode: 1 kV |
| Net Weight | 3.5 kg (7.72 lb) |
| Gross Weight |
4.5 kg (9.92 lb) |
| Product Dimensions |
440 mm × 230 mm × 44 mm (17.32" × 9.06" × 1.73") (L × W × H) |
| Packaging Dimensions |
542mm × 366mm × 106mm (21.34" × 14.40" × 4.17") (L × W × H) |
| Casing Material |
Sheet metal |
| Installation |
Desktop mount; rack mount |
| Certifications |
CE; FCC |
