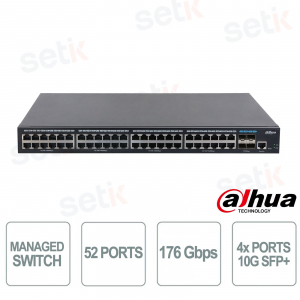

S5452-48GT4XF | GIGABIT MANAGED SWITCH 52 PORTS - 4 PORTS 10G SFP


Dahua

The Dahua S5452-48GT4XF is a 52-port L2+ managed switch with 48 RJ-45 ports and 4 10G SFP+ uplinks, ideal for businesses requiring stability, high performance, and simplified network management. It supports advanced protocols such as STP/RSTP/ERPS to prevent loops and improve reliability, while link aggregation ensures load balancing and redundancy. With a switching capacity of 176 Gbps, a forwarding rate of 130.9 Mpps, and integrated security features, it ensures a fast and reliable infrastructure. Management is via a minimalist web interface and SNMP, with lightning protection and safe operation between –10°C and +55°C.

Main specifications:

- 52 total ports (48 RJ-45 Gigabit + 4 10G SFP+ uplinks)

- STP/RSTP/ERPS support for stable networks

- Static and dynamic link aggregation

- Switching capacity 176 Gbps and forwarding rate 130.9 Mpps

- Simplified management via WEB and SNMP

- Lightning protection and extended operation from –10°C to +55°C

Further details

Number of doors:
The switch has 52 total ports , divided into 48 RJ-45 Gigabit (10/100/1000 Mbps) and 4 SFP+ uplinks of 1/10 Gbps , ideal for business networks that require high connectivity and scalability.
Minimal WEB:
It integrates a simplified and intuitive web interface , designed to reduce configuration times and simplify management, making administration accessible even to those without advanced technical knowledge.
Link Aggregation :
It supports LACP and static/dynamic aggregation, combining multiple physical links into a single virtual channel. This ensures load balancing and redundancy , increasing network stability and continuity.
Spanning Tree Protocol (STP) :
Compatible with STP, RSTP, and ERPS , it calculates optimal, loop-free paths and prevents broadcast storms. This improves reliability and ensures business continuity even in complex infrastructures.
Performance :
It offers a switching capacity of 176 Gbps and a packet forwarding rate of 130.9 Mpps , with 16 Mbit buffer and Jumbo Frame support of up to 12,288 bytes , ensuring high performance in high-traffic networks.

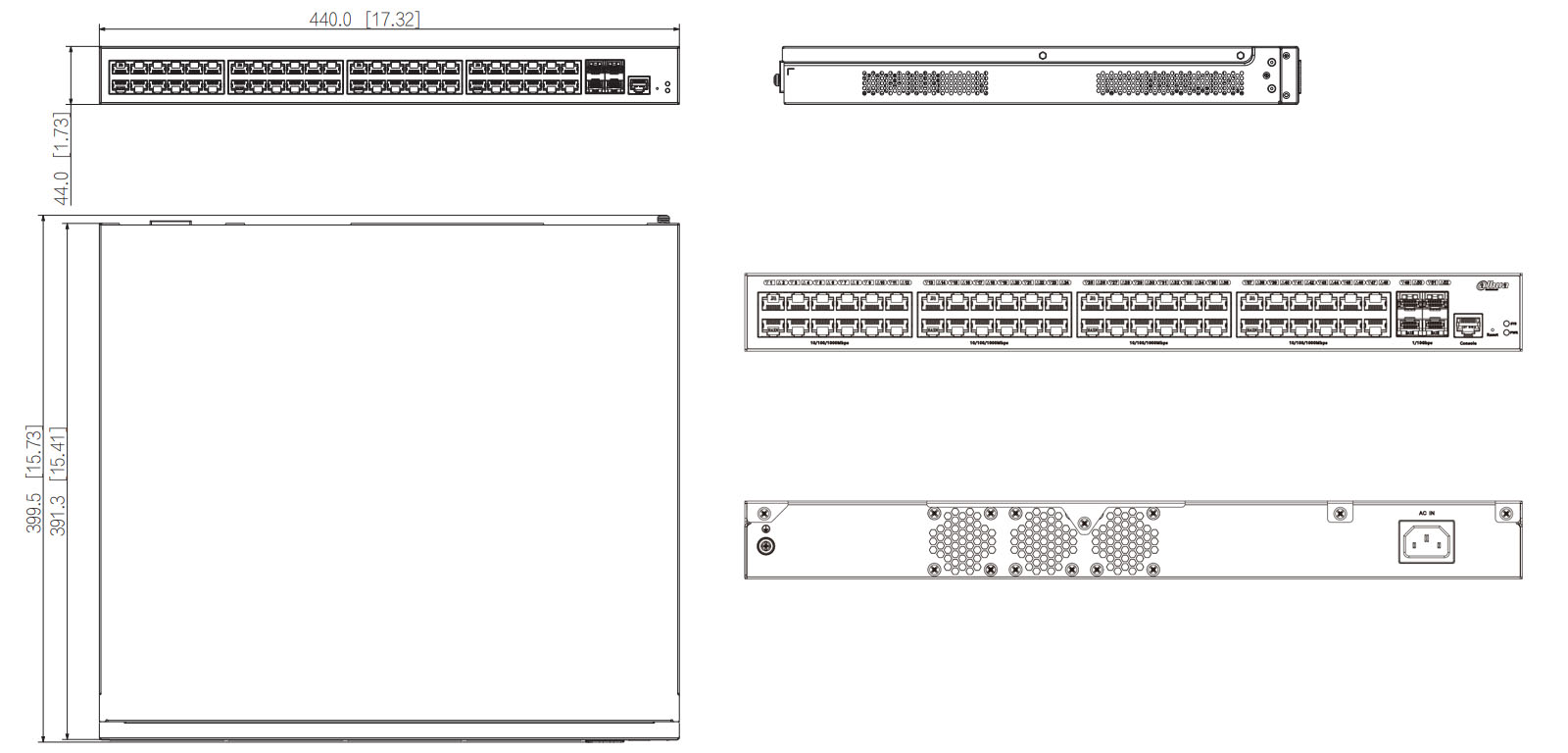

S5452-48GT4XF dimensions

Technical data sheet

Model S5452-48GT4XF
Basic
Layer

Layer 2

Switching Capacity

176 Gbps

Packet Forwarding Rate

130.944 Mpps

Description of Function Slots

Port 1-48: 48 × RJ-45 10/100/1000 Mbps
Port 49-52: 4 × SFP+ 1/10 Gbps

Operating Humidity

–10 °C to +55 °C (14 °F to +131 °F)

Operating Humidity

5%–95% (RH), non-condensing

Storage Humidity

5%–95% (RH), non-condensing

Power Supply

built-in power supplies: 100–240 VAC, 50/60 Hz, 2 A

Power Consumption

Idling load: 17.5 W
Full load: ≤ 60 W

Statics Protection

Air discharge: 8kV
Contact discharge: 6kV

Lighting Protection

Common mode: 4kV
Differential mode: 2 kV

Net Weight

4.8 kg (10.58 lb)

Gross Weight

6.1 kg (13.45 lb)

Dimensions

440 mm × 391 mm × 44.0 mm (17.32" × 15.39" × 1.73") (L × W × H)

Packaging Dimensions

561 mm × 513 mm × 146 mm (22.09" × 20.20" × 5.75") (L × W × H)

Installation

Rack mount; desktop mount

Hardware

Debugging

1 × Console port

Reset Button

1

Performance

Packet Buffer Size

16 Mbit

Jumbo Frame

12288 Bytes

MAC Table Size

32K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad

VLAN Number

4094

VLAN Interface

10

Feature

Ethernet Loop Protection

STP/RSTP/ERPS

VLAN Function Port-based VLAN
Link Aggregation LACP
Static link aggregation
Dynamic link aggregation
Port Feature IEEE 802.3x flow control
Unknown unicast suppression
Multicast storm control
Broadcast storm control
IEEE 802.3x Flow Control Yes
Multicast IGMP Snooping
Reliability LLDP
Routing Static routing
DHCP Function DHCP Client
Security 802.1X
Port isolation
Radius
HTTPS
QoS/ACL SP/WRR queue scheduling
802.1p and DSCP priority mapping
Port speed limit
Equipment Management Cloud management
Web
SNMP V1/V2C/V3
NTP
Logs
Ping
General
Packing List

1 × User Manual;
1 × Legal and Regulatory Information;
1 × Warranty Card
1 × List of Hazardous Substances
1 × Power Cord;
1 × Rack-mounting Kit;
