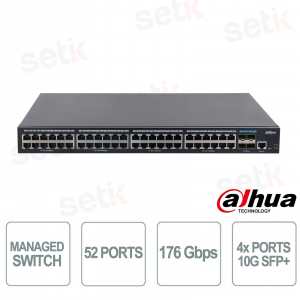

S5452-48GT4XF | SWITCH GIGABIT MANAGED 52 PORTE - 4 PORTE 10G SFP

Il Dahua S5452-48GT4XF è uno switch gestito L2+ con 52 porte Gigabit, composto da 48 RJ-45 e 4 uplink SFP+ 10G, ideale per aziende che necessitano di stabilità, alte prestazioni e gestione semplificata della rete. Supporta protocolli avanzati come STP/RSTP/ERPS per evitare loop e migliorare l’affidabilità, mentre il link aggregation assicura bilanciamento del carico e ridondanza. Con una capacità di switching di 176 Gbps, un forwarding rate di 130,9 Mpps e funzioni di sicurezza integrate, garantisce un’infrastruttura veloce e affidabile. La gestione avviene tramite interfaccia WEB minimalista e SNMP, con protezione da fulmini e funzionamento sicuro tra –10 °C e +55 °C.
Specifiche principali:
- 52 porte totali (48 RJ-45 Gigabit + 4 uplink 10G SFP+)
- Supporto STP/RSTP/ERPS per reti stabili
- Link aggregation statico e dinamico
- Switching capacity 176 Gbps e forwarding rate 130,9 Mpps
- Gestione semplificata via WEB e SNMP
- Protezione da fulmini e funzionamento esteso da –10 °C a +55 °C
Ulteriori dettagli

Scheda tecnica
| Model | S5452-48GT4XF |
| Basic | |
| Layer |
Layer 2 |
| Switching Capacity |
176 Gbps |
| Packet Forwarding Rate |
130.944 Mpps |
| Description of Function Slots |
Port 1-48: 48 × RJ-45 10/100/1000 Mbps |
| Operating Humidity |
–10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity |
5%–95% (RH), non-condensing |
| Storage Humidity |
5%–95% (RH), non-condensing |
| Power Supply |
built-in power supplies: 100–240 VAC, 50/60 Hz, 2 A |
| Power Consumption |
Idling load: 17.5 W |
| Statics Protection |
Air discharge: 8kV |
| Lighting Protection |
Common mode: 4kV |
| Net Weight |
4.8 kg (10.58 lb) |
| Gross Weight |
6.1 kg (13.45 lb) |

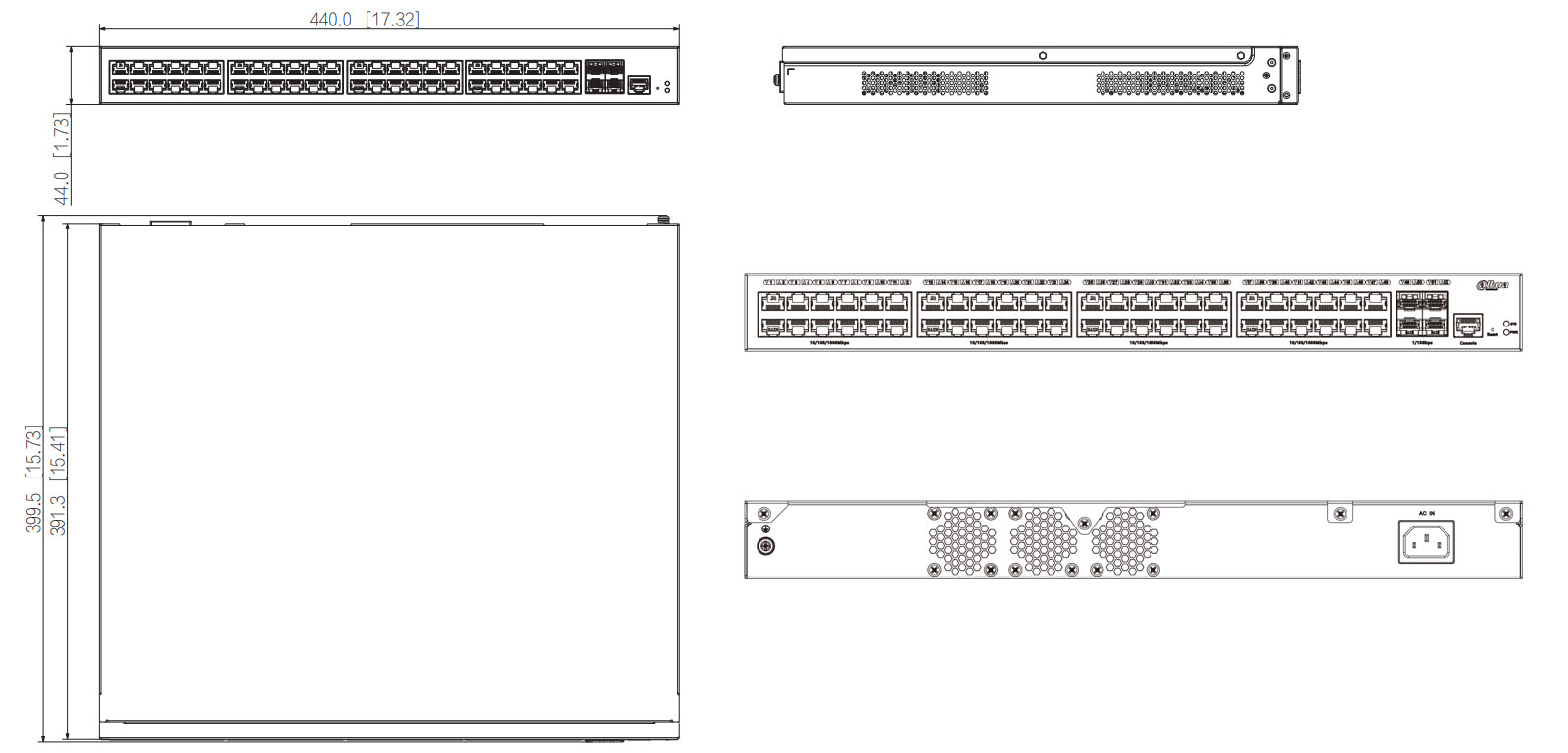

| Dimensions |
440 mm × 391 mm × 44.0 mm (17.32" × 15.39" × 1.73") (L × W × H) |
| Packaging Dimensions |
561 mm × 513 mm × 146 mm (22.09" × 20.20" × 5.75") (L × W × H) |
| Installation |
Rack mount; desktop mount |
|
Hardware |
|
| Debugging |
1 × Console port |
| Reset Button |
1 |
|
Performance |
|
| Packet Buffer Size |
16 Mbit |
| Jumbo Frame |
12288 Byte |
| MAC Table Size |
32K |
| Communication Standard |
IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad |
| VLAN Number |
4094 |
| VLAN Interface |
10 |
|
Feature |
|
| Ethernet Loop Protection |
STP/RSTP/ERPS |
| VLAN Function | Port-based VLAN |
| Link Aggregation | LACP Static link aggregation Dynamic link aggregation |
| Port Feature | IEEE 802.3x flow control Unknown unicast suppression Multicast storm control Broadcast storm control |
| IEEE 802.3x Flow Control | Yes |
| Multicast | IGMP Snooping |
| Reliability | LLDP |
| Routing | Static routing |
| DHCP Function | DHCP Client |
| Security | 802.1X Port isolation Radius HTTPS |
| QoS/ACL | SP/WRR queue scheduling 802.1p and DSCP priority mapping Port speed limit |
| Equipment Management | Cloud management Web SNMP V1/V2C/V3 NTP Logs Ping |
| General | |
| Packing List |
1 × User Manual; |
