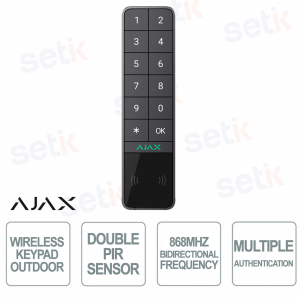

99969.286.GP1 #99969 - The Ajax KeyPad Outdoor Jeweller in Graphite is an advanced wireless security control solution designed to withstand extreme weather conditions. With an elegant design and large mechanical buttons, it is ideal for outdoor and indoor use, even with gloves. It supports authentication via codes, smartphones (BLE), Pass cards and Tag keyfobs with DESFire® technology, providing flexibility and security. Equipped with IP66 protection and impact resistance ( IK08 ), it guarantees durability and reliability. Jeweller radio communication ensures a range of up to 1,700 m in open field, with advanced encryption and anti-sabotage protection. Works up to 2 years with CR123A batteries or via external 12 V power supply - Graphite.
DISCOVER ALSO THE AJAX SUPERIOR KEYPAD OUTDOOR FIBER VERSION 117761.285.GP
99969.286.GP1 | AJAX KEYPAD OUTDOOR JEWELLER - WIRELESS KEYPAD FOR OUTDOOR AND INDOOR USE - AUTHENTICATION VIA PASS, TAG, SMARTPHONE, AND CODES

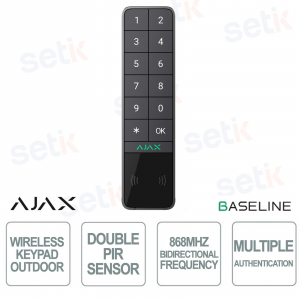

Ajax KeyPad Outdoor Jeweler Graphite The 99969.286.GP1 wireless keypad is designed to control the Ajax alarm system even outdoors, thanks to its durable design and advanced security technologies. Easy to install and use, it ensures rapid integration with the entire Ajax ecosystem via encrypted radio communication. The backlit touch panel allows for optimal use both day and night, while intelligent protection against tampering and weather conditions ensures long-term reliability.
DISCOVER ALSO THE AJAX SUPERIOR KEYPAD OUTDOOR FIBER VERSION 117761.285.GP
| Code | 99969.286.GP1 | 117761.285.GP |
| Model | Ajax KeyPad Outdoor Jeweler | Ajax Superior KeyPad Outdoor Fiber |
| Product type | Wireless outdoor keyboard | Wired outdoor keyboard |
| Technology | Wireless Jeweler | Fiber Wired |
| Main difference | Radio version, can be installed without cables | Professional wired version, powered by fiber bus |
| Authentication methods | Codes, Passes, Tags, smartphones via BLE | Codes, Passes, Tags, smartphones via BLE |
| Connection / range | Jeweller up to 1,700 m in open field | 4-wire fiber line up to 2,000 m |
| Batteries / autonomy | 2× CR123A pre-installed; optional external power supply 10.5–14 V | From 7–30 V⎓ Fiber line, up to 100 mA |
| Autonomy | Up to 3 years | Not applicable: Powered by central |
| Protection | IP66, IK08, tamper, incorrect attempt lock, panic button | IP66, IK08, tamper, sabotage protection, short circuit protection, panic function |
Main specifications:
- Waterproof and durable design (IP65): Designed to withstand rain, snow, dust and temperature changes, it is perfect for outdoor use.
- Long-range Jeweller technology: communicates securely and encrypted with the Ajax hub up to 1,700 meters away in open terrain.
- Backlit touch panel: The capacitive keypad provides audible and visual feedback for every interaction, making code entry simple and accurate even in the dark.
- Integrated tamper protection: detects unauthorized opening or removal attempts from the holder, triggering an alarm in real time. - Radio range of up to 1700 meters in open fields thanks to the Jeweller protocol.
- Customizable and secure access: allows the use of individual user codes, duress codes in case of threats, and the possibility of quick entry without codes for trusted users.
Further details
The Ajax KeyPad Outdoor Jeweler keypad is designed to provide reliable and secure control of alarm systems even in harsh environmental conditions. Equipped with advanced technologies and a robust, modern design, it is the ideal choice for professional outdoor installations, ensuring protection, practicality, and durability.
✅ Jeweler Technology:
It uses an encrypted two-way radio protocol that ensures stable, secure and energy-efficient communication with the Ajax system hub.
✅ Radio communication range:
It can communicate with the hub up to 1,700 meters in open fields, ensuring wide coverage without the need for repeaters, ideal for residential or commercial settings.
Dual PIR sensor with ELSA algorithm , adjustable distance up to 15 meters, pet immunity and temperature compensation .
It supports secure authentication via custom user codes, duress codes (for emergency situations), user-less codes , as well as visual and audible feedback for each operation.
It has an integrated tamper , which detects attempts at unauthorised opening or removal, and anti-incorrect keystroke functions which temporarily block use in the event of suspicious entries.
It works with 2 CR123A batteries , guaranteeing an autonomy of up to 3 years , with automatic warning in case of low battery.
It can also be powered from an external 12 VDC source , offering greater flexibility in settings with access to wired power.
Technical data sheet
| 99969.286.GP1 |
| Standards compliance |
| EN 50131 (Grade 2) |
| PD 6662:2017 |
| Compatibility |
| Hub 2 (2G) Jeweler |
| Hub 2 (4G) Jeweler |
| Hub 2 Plus Jeweler |
| Hub BP Jeweler |
| Hybrid Hub (2G) |
| Hybrid Hub (4G) |
| ReX Jeweler |
| ReX 2 Jeweler |
| Communication with the hub |
| Jeweler Communication Technology |
Operating frequencies
|
| Communication range up to 1,700 m (in open field) |
| Ping interval |
| 12-300 s |
| Functions |
|
Contactless access
|
|
Access codes
|
| Duress Code Up to 200 personal duress codes and 1 keypad duress code |
| Panic button |
| Installation |
| Operating temperatures From -25 °C to +60 °C |
| Maximum permissible humidity Up to 80% |
| Protection class IP66 |
| IK08 impact protection |
| Diet |
|
Batteries
|
| Custody |
| Color: Graphite |
|
Dimensions: 170 x 45 x 31.5 |
|
Weight: 258g |
| Anti-sabotage alarm |
