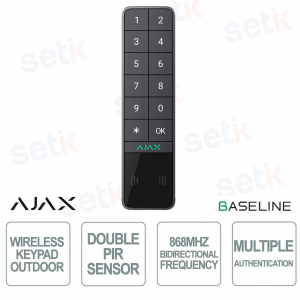

Ajax KeyPad Outdoor Graphite Wireless Keyboard: Safe and Smart Control

Ajax KeyPad Outdoor Graphite Wireless Keyboard: Safe and Smart Control

Neu

99969.286.GP1 #99969 - The Ajax KeyPad Outdoor Jeweller in Graphite is an advanced wireless security control solution designed to withstand extreme weather conditions. With an elegant design and large mechanical buttons, it is ideal for outdoor and indoor use, even with gloves. It supports authentication via codes, smartphones (BLE), Pass cards and Tag keyfobs with DESFire® technology, providing flexibility and security. Equipped with IP66 protection and impact resistance ( IK08 ), it guarantees durability and reliability. Jeweller radio communication ensures a range of up to 1,700 m in open field, with advanced encryption and anti-sabotage protection. Works up to 2 years with CR123A batteries or via external 12 V power supply - Graphite.

Technical Data Sheet

Artikel-Nr.: 99969.286.GP1

Marke: Ajax Systems

EAN: 4823114074561

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

99969.286.GP1 | AJAX KEYPAD OUTDOOR JEWELLER - WIRELESS KEYPAD FOR OUTDOOR AND INDOOR USE - AUTHENTICATION VIA PASS, TAG, SMARTPHONE AND CODES

Ajax Systems

Ajax KeyPad Outdoor Jeweler Graphite 99969.286.GP1 is a wireless keypad designed to control the Ajax alarm system even outdoors, thanks to a durable design and advanced security technologies. Easy to install and use, it ensures quick integration with the entire Ajax ecosystem via encrypted radio communication. The backlit touch panel allows optimal use both day and night, while intelligent protections against tampering and weather conditions ensure its reliability over time.

Main specifications:

- Waterproof and durable design (IP65): Designed to withstand rain, snow, dust and temperature changes, it is perfect for outdoor use.

- Long-range Jeweller technology: communicates securely and encrypted with the Ajax hub up to 1,700 meters away in open field.

- Backlit touch panel: The capacitive keyboard provides audible and visual feedback for every interaction, making code entry simple and accurate even in the dark.

- Integrated tamper protection: detects unauthorized opening or removal attempts from the support, activating the alarm in real time. - Radio range up to 1700 meters in open field thanks to the Jeweller protocol

- Customizable and secure access: allows the use of individual user codes, duress code in case of threats, and the possibility of quick entry without code for trusted users.

Further details

The Ajax KeyPad Outdoor Jeweler outdoor keypad is designed to provide reliable and safe control of alarm systems even in difficult environmental conditions. Equipped with advanced technologies and a robust and modern design, it is the ideal choice for professional installations in open spaces, ensuring protection, convenience and durability over time.


Jeweller Technology:
It uses an encrypted two-way radio protocol that ensures stable, secure and energy-efficient communication with the Ajax system hub.

Radio communication range:
It can communicate with the hub up to 1,700 meters in open field, ensuring wide coverage without the need for repeaters, ideal for residential or commercial contexts.
Detection:
Dual PIR sensor with ELSA algorithm , adjustable distance up to 15 meters, pet immunity and temperature compensation .
Authentication methods:
It supports secure authentication via customized user codes, duress codes (for emergency situations), user-less codes , as well as visual and audible feedback for each operation.
Anti-sabotage protection:
It has an integrated tamper , which detects attempts at unauthorised opening or removal, and anti-incorrect keystroke functions which temporarily block use in the event of suspicious entries.
Main power supply:
It works with 2 CR123A batteries , guaranteeing an autonomy of up to 3 years , with automatic warning in case of low battery.
Optional power supply:
It can also be powered by an external 12 VDC source , offering greater flexibility in settings with access to wired power.

Technical data sheet

99969.286.GP1
Standards compliance
EN 50131 (Grade 2)
PD 6662:2017
Compatibility
Hub 2 (2G) Jeweler
Hub 2 (4G) Jeweller
Hub 2 Plus Jeweler
BP Jeweller Hub
Hybrid Hub (2G)
Hybrid Hub (4G)
ReX Jeweler
ReX 2 Jeweler
Communication with the hub
Jeweller Communication Technology
Operating frequencies
  • 866.0-866.5MHz
  • 868.0-868.6MHz
  • 868.7-869.2MHz
  • 905.0-926.5MHz
  • 915.85-926.5MHz
  • 921.0-922.0MHz
  • Based on sales region
Communication range up to 1,700 m (in open field)
Ping interval
12-300 s
Functions

Contactless access

  • Pass cards and Tag keychains (up to 200 devices)
  • Support for BLE (up to 200 smartphones)

Access codes

  • Up to 200 personal codes for registered users
  • Up to 99 codes for unregistered users
  • 1 keyboard code
Duress Code Up to 200 personal duress codes and 1 keypad duress code
Panic button
Installation
Operating temperatures From -25 °C to +60 °C
Maximum permissible humidity Up to 80%
Protection class IP66
IK08 impact protection
Diet

Batteries

  • 2 x CR123A (pre-installed)
  • Estimated battery life up to 3 years
  • Optional external power supply 10.5-14V, up to 1A
Custody
Color: Graphite

Dimensions: 170 x 45 x 31.5

Weight: 258g

Anti-sabotage alarm
