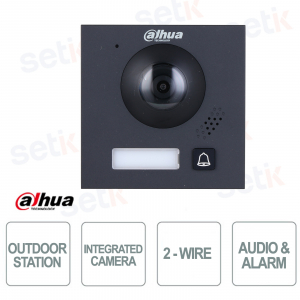

Hybrid Outdoor Station with 2Mp 160° Two-Wire Camera - Mechanical Button - Dahua

Hybrid Outdoor Station with 2Mp 160° Two-Wire Camera - Mechanical Button - Dahua
-58% nuevo

VTO4103FB-1 - Hybrid two-wire modular outdoor station with integrated camera with 2MP CMOS sensor, 1/2.5" color fisheye camera and 160° viewing angle. Mechanical button - Compatible with two-wire and RS-485 interface. 1 exit button, 2-way voice communication. Power supply 12 V 1 A; Po. IP65 and IK07. Dahua.



referencia : VTO4103FB-1

brand : Dahua

EAN: 6923172514028

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HYBRID STEEL OUTDOOR STATION WITH CAMERA - SPEAKER - MECHANICAL BUTTON - DAHUA

DESCRIPTION:
The external station Dahua's VTO4103FB-1 is one of the best stations on the market
Ideal for installations in villas thanks to its refined design.
Equipped with an adjustable camera with 2Mp CMOS sensor, it allows a viewing angle of approximately 160° with a mechanical button

Product Details:

VTO4103FB-1
  • External station - Dahua
  • Category: Video Intercom
  • Built-in adjustable camera with 1/2.5" 2Mp CMOS image sensor, low illumination HD color fisheye camera
  • Viewing angle 168.6°; V: 87.1°; D: 176.7°
  • Mechanical Button
  • IP65 and IK07
  • Supports night vision
  • Supports mobile software
  • Contact the internal monitor or management center
  • Support remote unlock
  • Support group call function
  • Connection via LAN port
  • 1 Exit button
  • Power supply 12V 1A
  • Surface or recessed mounting with optional special containers
  • Quality product
  • 24 month warranty

Technical data sheet

Model VTO4103FB-1
System
Main Processor Embedded processor
Operating System Embedded Linux Operation System
Button Type Mechanical
Basic
Room 1/2.5" 2 MP CMOS low illumination HD color fisheye camera
Field of View H: 168.6°; V: 87.1°; D: 176.7°
WDR 120dB
Noise Reduction 3D NR
Video Resolution P: 960 (H) × 576 (V)
N: 960 (H) × 480 (V)
Video Frame Rate P: 25 fps
N: 30fps
Light Compensation Auto IR
Day/Night Auto(ICR)/Color/B/W
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode Two-way audio (half–duplex)
Audio Enhancement Echo suppression/digital noise reduction
Function
Communication Mode Analog
Unlock Mode IC card, ID card, password, fingerprint, and remote unlock (A sub-module must be connected to the main module for the first 4 methods)
Leave Videos Yes (SD card inserted in VTH is needed)
Performance
Casing Material Aluminum alloy
Port
RS-485 1
AlarmOutput 1 channel
Power Output 1 channel, 12V, 1A
Exit Button 1 channel
Door Status Detection 1 channel
Lock Control 1 channel
Alarm
Tamper Alarm Yes
General
Appearance color Silver, black
Power Supply 2-wire controller
Installation Flush Mount; Surface Mount
Certifications THERE IS
Accessories Surface mount box (optional), flush mount box (optional), panel (optional)
Product Dimensions 100 mm × 100 mm × 47.35 mm (3.94" × 3.94" × 1.86")
Protection IK07; IP65
Operating Temperature –40 °C to +60 °C (–40 °F to +140°F)
Operating Humidity 10%–90%
Operating Environment Outdoor
Operating Altitude 0 m–3000 m (0 ft–9,842.52 ft)
Power Consumption ≤4W (standby), ≤12W (working)
Gross Weight 435g (0.96lb)

Further details

VTO4103FB-1
Videocitofono con telecamera integrata

Camera built into the device.
1/2.5"2Mp CMOS image sensor.
Viewing angle approximately 160°

2Mp CMOS image sensor

1 Uscita Relè per comando apri porta mono famigliare 1 Alarm Output

Possibility of integration into a VOIP system , as if it were a common VoIP line.

It is possible to answer from any internal VoIP station.


Protezione Waterproof Station suitable for outdoor environments thanks to the Waterproof feature
Protezione Antivandalo Vandal-resistant all-steel panel

12VDC_Power

Power supply 12Vdc

Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
