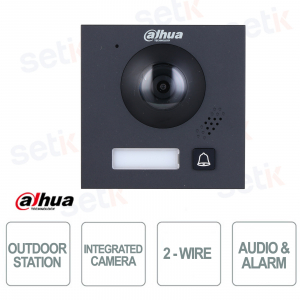

HYBRID STEEL OUTDOOR STATION WITH CAMERA - SPEAKER - MECHANICAL BUTTON - DAHUA
DESCRIPTION:
The external station Dahua's VTO4103FB-1 is one of the best stations on the market
Ideal for installations in villas thanks to its refined design.
Equipped with an adjustable camera with 2Mp CMOS sensor, it allows a viewing angle of approximately 160° with a mechanical button
Product Details:
|
Technical data sheet
| Model | VTO4103FB-1 |
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux Operation System |
| Button Type | Mechanical |
| Basic | |
| Room | 1/2.5" 2 MP CMOS low illumination HD color fisheye camera |
| Field of View | H: 168.6°; V: 87.1°; D: 176.7° |
| WDR | 120dB |
| Noise Reduction | 3D NR |
| Video Resolution | P: 960 (H) × 576 (V) N: 960 (H) × 480 (V) |
| Video Frame Rate | P: 25 fps N: 30fps |
| Light Compensation | Auto IR |
| Day/Night | Auto(ICR)/Color/B/W |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio (half–duplex) |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Function | |
| Communication Mode | Analog |
| Unlock Mode | IC card, ID card, password, fingerprint, and remote unlock (A sub-module must be connected to the main module for the first 4 methods) |
| Leave Videos | Yes (SD card inserted in VTH is needed) |
| Performance | |
| Casing Material | Aluminum alloy |
| Port | |
| RS-485 | 1 |
| AlarmOutput | 1 channel |
| Power Output | 1 channel, 12V, 1A |
| Exit Button | 1 channel |
| Door Status Detection | 1 channel |
| Lock Control | 1 channel |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Appearance color | Silver, black |
| Power Supply | 2-wire controller |
| Installation | Flush Mount; Surface Mount |
| Certifications | THERE IS |
| Accessories | Surface mount box (optional), flush mount box (optional), panel (optional) |
| Product Dimensions | 100 mm × 100 mm × 47.35 mm (3.94" × 3.94" × 1.86") |
| Protection | IK07; IP65 |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140°F) |
| Operating Humidity | 10%–90% |
| Operating Environment | Outdoor |
| Operating Altitude | 0 m–3000 m (0 ft–9,842.52 ft) |
| Power Consumption | ≤4W (standby), ≤12W (working) |
| Gross Weight | 435g (0.96lb) |
Further details
![]() |
Camera built into the device. 2Mp CMOS image sensor |
![]() |
1 Alarm Output |
![]() |
Possibility of integration into a VOIP system , as if it were a common VoIP line. It is possible to answer from any internal VoIP station.
|
![]() |
Station suitable for outdoor environments thanks to the Waterproof feature |
![]() |
Vandal-resistant all-steel panel |
|
|
Power supply 12Vdc |
| This product is covered by a 24 month warranty. |
