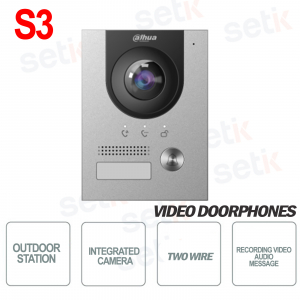

ONVIF® and Poe Outdoor Station with 2Mp 160° Camera - Vandal-Proof - S3 - Dahua

ONVIF® and Poe Outdoor Station with 2Mp 160° Camera - Vandal-Proof - S3 - Dahua
BEST PRICE -61% nuevo

VTO2202F-P-S3 - Onvif and PoE 2-wire outdoor station with integrated camera with 1/2.9" 2MP CMOS sensor and 160° angle. 1 lock control port, 1 door status detection port, 1 electric lock port, 1 exit button. Integrated Audio Input and Speaker, 1 alarm output, Vandal-proof . 48V DC or PoE power supply. IP65 and IK07 rating. Dahua. S3 version



referencia : VTO2202F-P-S3

brand : Dahua

EAN: 6923172563194

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

ANODIZED ALUMINUM OUTDOOR STATION WITH CAMERA AND LIGHTING - LOUDSPEAKER - S3 VERSION - DAHUA

DESCRIPTION:
The external station VTO2202F-P-S3 S3 version of Dahua, is one of the best stations on the market
Ideal for installations in villas thanks to its refined design.
Equipped with a 1/2.9" 2Mp CMOS sensor camera, it allows a viewing angle of approximately 160°.

Product Details:

Postazione esterna in acciaio Dahua serie VTO2202F-P-S2
  • External station - Dahua
  • Category: Video Intercom
  • Non-modular. Cannot be integrated with other modules
  • Built-in camera with 1/2.9" CMOS 2MP image sensor, 160° viewing angle
  • Heavy duty steel panel, vandal resistant (IK07)
  • Supports night vision
  • Supports mobile software
  • Contact the internal monitor or management center
  • Support remote unlock
  • 1 electric lock door
  • 1 exit button door
  • 1 door status detection port
  • 1 lock control door
  • 1 RJ45 network port (10/100M)
  • Power: 48 VDC, 1 A; PoE (802.3af/at)
  • Maximum consumption 5W
  • Surface or recessed mounting with optional special containers
  • IP65 grade
  • IK07
  • Quality product
  • 24 month warranty

Technical data sheet

Model VTO2202F-P-S3
System
Main Processor Embedded processor
Operating System Embedded Linux Operation System
Button Type Mechanical
Number of Buttons 1
Interoperability ONVIF®; CGI
Network Protocol IPv4; RTSP; UDP; DNS; P2P; UPnP; RTP; TCP; SIP
Basic
Room 1/2.9" 2MP CMOS
Field of View Horizontal: 168.6°; vertical: 87.1; diagonal:176.7°
WDR 120dB
Noise Reduction 3D NR
Video Compression H.265; H.264
Video Resolution Main stream: 720p; WVGA; D1; CIF
Sub streams: 1080p; WVGA; D1; QVGA; CIF
Video Frame Rate 25fps
Video Bitrate 256Kbps to 8Mbps
Light Compensation Auto IR
Day/Night Auto (ICR)/Color/B/W; Color/B/W
Audio Compression G.711a; G.711u; PCM
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression/digital noise reduction
Audio Bitrate 16KHz, 16Bit
Function
Communication Mode Digital 2-wire
Unlock Mode Remote
Leave Videos Yes (SD card is inserted in the indoor monitor or door station)
Storage Supports Micro SD card (up to 256 GB)
WebConfiguration Yes
Performance
Casing Material Aluminum
Port
Electric Lock 1
AlarmOutput 1
Power Output 1-channel 12VDC 600mA
Exit Button 1
Door Status Detection 1
Lock Control 1
Network Port 1 x RJ45 10M/100M network port
General
Appearance color Silver
Power Supply Dahua 2-wire switch (max. power supply distance 50 m) DC 48V 1A Standard PoE (802.3af/at)
Power Adapter Optional
Installation Flush/surface mount
Certifications CE; FCC; UL
Accessories Flush/surface mount
Certifications THERE IS

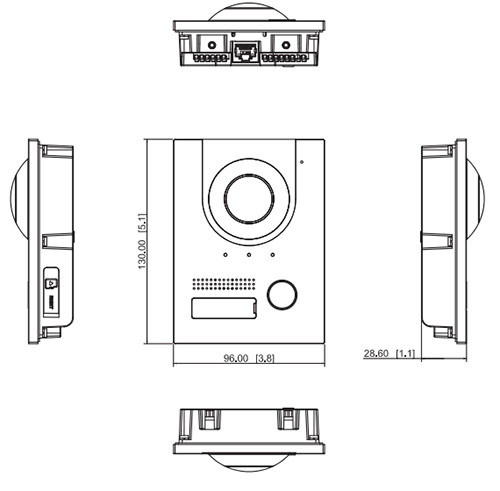

Product Dimensions 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
Protection IK07; IP65
Operating Temperature –30°C to +60°C (–22°F to 140°F)
Operating Humidity 10%–90% (RH, non-condensing)
Operating Altitude 0 m–3000 m (0 ft–9842.52 ft)
Power Consumption ≤4W (standby), ≤5W (working)
Net Weight 0.48 kg (1.06 lb)
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity 30%–75% (RH), non-condensing

Further details

Funzioni della postazione esterna VTO2202F-P-S2
Videocitofono con telecamera integrata

Camera built into the device.
Image sensor 1/2.9" CMOS 2Mp.
Viewing angle approximately 160°

2Mp CMOS image sensor

Questa postazione esterna presenta porta RJ-45 10/100Mbps Connection via RJ-45 Ethernet LAN port (10M/100Mbps)
1 Uscita Relè per comando apri porta mono famigliare 1 Alarm Output
Notifiche Push

In case of a call, the video intercom sends a notification to the internal monitor, to a mobile phone (the presence of the internal monitor is required) or to a VoIP phone.

PUSH CALL

The intercom will directly call your mobile phone where the DAHUA APP is installed.
You will be able to converse directly with whoever rings the intercom

DEDICATED DAHUA APPLICATION:

Possibility of integration into a VOIP system , as if it were a common VoIP line.

It is possible to answer from any internal VoIP station.

Protezione Antivandalo Vandal-resistant all-steel panel

12VDC_Power
PoE Power Supply

Power supply 10-15Vdc or PoE 48Vdc

Materiale con cui è stato creato il dispositivo Panel made entirely of anodized aluminum.
Italian Guarantee Icon This product is covered by a 24 month warranty.
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
