ANODIZED ALUMINUM OUTDOOR STATION WITH CAMERA AND LIGHTING - LOUDSPEAKER - S3 VERSION - DAHUA
DESCRIPTION:
The external station VTO2202F-P-S3 S3 version of Dahua, is one of the best stations on the market
Ideal for installations in villas thanks to its refined design.
Equipped with a 1/2.9" 2Mp CMOS sensor camera, it allows a viewing angle of approximately 160°.
Product Details:
![]()
|
Technical data sheet
Model | VTO2202F-P-S3 |
System | |
Main Processor | Embedded processor |
Operating System | Embedded Linux Operation System |
Button Type | Mechanical |
Number of Buttons | 1 |
Interoperability | ONVIF®; CGI |
Network Protocol | IPv4; RTSP; UDP; DNS; P2P; UPnP; RTP; TCP; SIP |
Basic | |
Room | 1/2.9" 2MP CMOS |
Field of View | Horizontal: 168.6°; vertical: 87.1; diagonal:176.7° |
WDR | 120dB |
Noise Reduction | 3D NR |
Video Compression | H.265; H.264 |
Video Resolution | Main stream: 720p; WVGA; D1; CIF Sub streams: 1080p; WVGA; D1; QVGA; CIF |
Video Frame Rate | 25fps |
Video Bitrate | 256Kbps to 8Mbps |
Light Compensation | Auto IR |
Day/Night | Auto (ICR)/Color/B/W; Color/B/W |
Audio Compression | G.711a; G.711u; PCM |
Audio Input | 1 channel |
Audio Output | Built-in speaker |
Audio Mode | Two-way audio |
Audio Enhancement | Echo suppression/digital noise reduction |
Audio Bitrate | 16KHz, 16Bit |
Function | |
Communication Mode | Digital 2-wire |
Unlock Mode | Remote |
Leave Videos | Yes (SD card is inserted in the indoor monitor or door station) |
Storage | Supports Micro SD card (up to 256 GB) |
WebConfiguration | Yes |
Performance | |
Casing Material | Aluminum |
Port | |
Electric Lock | 1 |
AlarmOutput | 1 |
Power Output | 1-channel 12VDC 600mA |
Exit Button | 1 |
Door Status Detection | 1 |
Lock Control | 1 |
Network Port | 1 x RJ45 10M/100M network port |
General | |
Appearance color | Silver |
Power Supply | Dahua 2-wire switch (max. power supply distance 50 m) DC 48V 1A Standard PoE (802.3af/at) |
Power Adapter | Optional |
Installation | Flush/surface mount |
Certifications | CE; FCC; UL |
Accessories | Flush/surface mount |
Certifications | THERE IS |
Product Dimensions | 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12") |
Protection | IK07; IP65 |
Operating Temperature | –30°C to +60°C (–22°F to 140°F) |
Operating Humidity | 10%–90% (RH, non-condensing) |
Operating Altitude | 0 m–3000 m (0 ft–9842.52 ft) |
Power Consumption | ≤4W (standby), ≤5W (working) |
Net Weight | 0.48 kg (1.06 lb) |
Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
Storage Humidity | 30%–75% (RH), non-condensing |
Further details

![]() |
Camera built into the device. 2Mp CMOS image sensor |
![]() |
Connection via RJ-45 Ethernet LAN port (10M/100Mbps) |
![]() |
1 Alarm Output |
![]() |

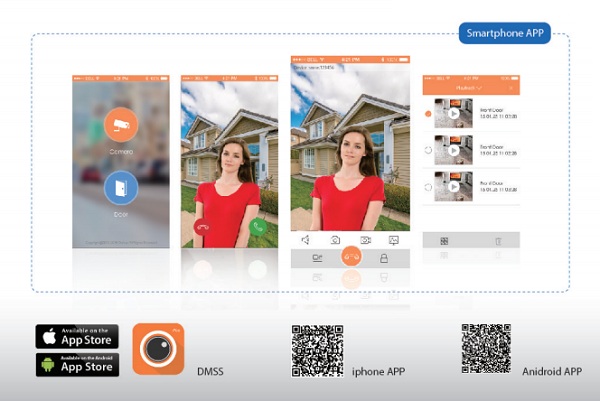

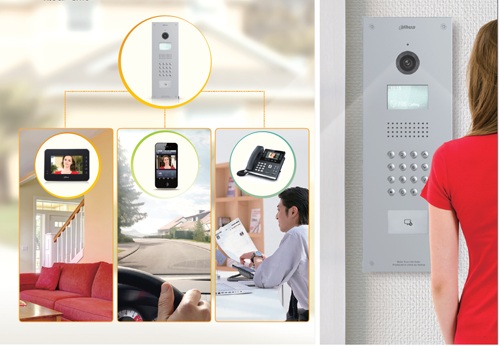

In case of a call, the video intercom sends a notification to the internal monitor, to a mobile phone (the presence of the internal monitor is required) or to a VoIP phone. PUSH CALLThe intercom will directly call your mobile phone where the DAHUA APP is installed. DEDICATED DAHUA APPLICATION: |
![]() |

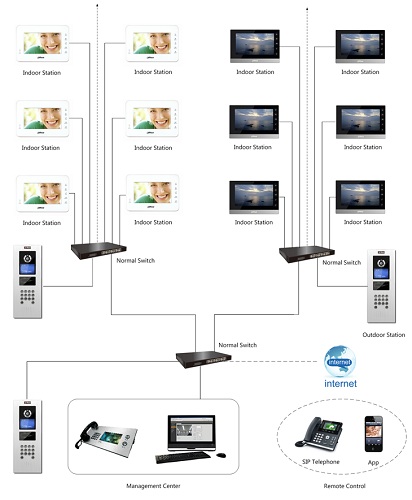

Possibility of integration into a VOIP system , as if it were a common VoIP line. It is possible to answer from any internal VoIP station. |
![]() |
Vandal-resistant all-steel panel |
|
Power supply 10-15Vdc or PoE 48Vdc |
![]() |
Panel made entirely of anodized aluminum. |
![]() |
This product is covered by a 24 month warranty. |
