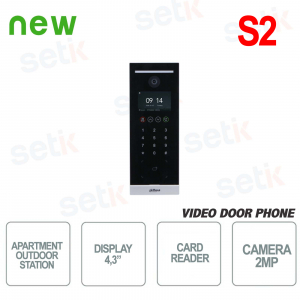

BACKLIT OUTDOOR STATION WITH 2MP CAMERA - IPS DISPLAY - TOUCH KEYPAD - RFID CARD READER - DAHUA
DESCRIPTION:
 The Dahua VTO6521H-D-S2 Backlit Outdoor Station is one of the best stations on the market.
 Ideal for installations in condominiums or buildings with multiple homes.
 Equipped with a 1/2.8" 2Mp CMOS sensor camera , 4.3" LCD display , touch numeric keypad and square card reader .
Quality product. Dahua Security
Product Details:
|
 |
Technical data sheet
| Model | VTO6521H-D-S2 |
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux OS |
| Button Type | Touch button |
| Interoperability | CGI;ONVIF |
| Network Protocol | RTMP;HTTP/HTTPS;DNS;RTSP;SSH;ONVIF;SIP;RTP |
| Basic | |
| Screen Type | Non-touchscreen |
| Display Screen | 4.3-inch display screen |
| Resolution | 800×480 |
| Room | 1/2.8" 2MP CMOS high-definition, low illumination, cameras |
| Angle of View | H: 95°; V: 50°; D: 110° |
| WDR | 120dB |
| Noise Reduction | 3D NR |
| Video Compression | H.264; H.265 |
| Video Resolution | Main stream: 720P/D1/WVGA; Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA |
| Video Frame Rate | 25fps |
| Video Bitrate | 1,024kbps–8,192kbps |
| Light Compensation | Car white light |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression and cancellation/digital noise reduction |
| Audio Bitrate | 16KHz, 16Bit |
| Function | |
| Communication Mode | Full digital |
| Unlock Mode | Card/remote/password |
| Auto Snapshot | Yes |
| Information Release | Receive and view text information released by the management center. |
| Leave Videos | Yes (SD card inserted in VTH is needed) |
| WebConfiguration | Yes |
| RFID | |
| Card Type | ID card |
| Performance | |
| Issue Card Locally | Yes |
| Casing Material | PC+ABS |
| Capacity | |
| Card | 10, 000 |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 (they can be set as an input or output port) |
| Alarm Input | 2 channels |
| AlarmOutput | 2 channels |
| Power Output | 1 port (12V, 500mA) |
| Exit Button | 1 channel |
| Door Status Detection | 1 channel |
| Lock Control | 1, normally open by default |
| Network | 1 × 10Mbps/100Mbps Ethernet port |
| Alarm | |
| Tamper | Yes |
| General | |
| Password Unlock Mode | User, public and hard passwords |
| Color | Silver |
| Power Supply Mode | DC12V 2A PoE Standards |
| Power Adapter | Optional |
| Installation | Surface mount and Flush mount |
| Certification | THERE IS |
| Accessories | Power supply (optional); Flush mount box (optional) |
| Product Dimensions | 388.5mm×145.5mm×43.5mm (15.30"×5.73"×1.71") |
| Protection Grade | IP65 rated (Silicone sealant is required. See the quick start guide for more information). |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F ) |
| Operating Humidity | 0%–90% (RH), non-condensing |
| Operating Altitude | 0 m–3,000 m (0 ft–9842.52 ft) |
| Power Consumption | ≤5W (standby), ≤18W (working) |
| Gross Weight | 1.47 kg (3.24 lb) |
Further details
|  | Camera built into the device. |
|  | 4.3" LCD display |
|  | 1x Integrated Card Reader for door unlocking (Card not included) |
|  | Mechanical numeric keypad for internal home entry or password for door unlocking |
|  | Connection via RS485 communication port |
|  | 2 alarm outputs & 2 alarm inputs |
|  | Station suitable for outdoor environments thanks to the Waterproof feature |
|
 | Power supply 12 VDC, 2 A; Standard PoE |
|  | Panel made entirely of PC+ABS . |
|  | This product is covered by a 24 month warranty. |
