SCP3044A-BZ | 4-WIRE IP SMART CONTROL PANEL

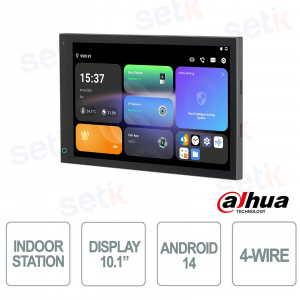

The Dahua SCP3044A-BZ is an advanced 4-wire hybrid smart control panel designed to integrate video intercom, video surveillance, and alarm functions in a single, intuitive solution. Thanks to the Android 14 system and 10.1" IPS touchscreen display, it offers a modern, responsive user experience that can be customized via third-party apps. Ideal for villas, apartments, hotels, and offices, it guarantees maximum flexibility thanks to compatibility with IP, Wi-Fi, and 4-wire networks, automatic wake-up, and integrated brightness, temperature, and humidity sensors, which make room management even more efficient. Complete with two-way audio, multicolor indicators, and microSD support for up to 512 GB, it represents a secure, versatile, and smart home-ready solution.
Main specifications:
- 10.1" multi-touch IPS display with 1280×800 resolution
- Android 14 operating system with APK support
- IP, Wi-Fi and 4-wire communications
- Integrated light, temperature and humidity sensors
- Two-way audio with noise and echo reduction
- Automatic wake-up and multi-color LED indicators
- MicroSD support up to 512 GB
- 8 alarm inputs, 1 alarm output and 10/100 Mbps Ethernet port
Further details
The panel uses a high-performance embedded processor and the modern Android 14 , ensuring smooth operation, compatibility with third-party apps (APK), advanced updates and an optimized interface for smart home and security management.
✅ Network Protocol :
It supports a wide range of network protocols including IPv4, RTSP, UDP, DNS, FTP, RTP, TCP and SIP , ensuring maximum integration with video surveillance systems, IP communications and professional network infrastructures.
The 10.1" capacitive IPS display (1280x800) offers wide visibility with an 80° horizontal and vertical angle . Multi-touch technology and the full-screen design with ultra-thin border offer a modern, clear and intuitive experience.
✅ Enhanced Signal :
The device integrates a brightness sensor that automatically adjusts the screen brightness, as well as temperature and humidity sensors , ensuring continuous environmental monitoring directly from the home screen. It also includes multicolored LED indicators with a “breathing light” effect for instant notifications of the device status.
It supports two-way audio with G.711a/u and PCM compression , built-in speaker, dedicated microphone and advanced echo cancellation and digital noise reduction features, ensuring clear and professional communications.
Equipped with full digital communication, it supports video intercom, video monitoring, information release and reception, elevator control, video recording on SD, DND – Do Not Disturb mode, automatic wake-up on passage and compatibility with ZigBee modules, Bluetooth and 868 MHz sensors .
Built-in wireless connectivity with IEEE 802.11a/b/g/n/ac/ax standards, compatible with both 2.4 GHz and 5 GHz networks, ensuring stable, fast and interference-free transmission for all smart functions.
Equipped with RS-485 , USB , doorbell input, 8 alarm inputs, 1 alarm output, 10/100 Mbps Ethernet port, 12V power supply and 4-wire communication support, for maximum compatibility with new and existing systems.

Technical data sheet
| Model | SCP3044A-BZ |
| System | |
| Main Processor | Embedded processor |
| Operating System | Android 14 |
| Network Protocol | IPv4;RTSP;UDP;DNS;FTP;RTP;TCP;SIP |
| Basic | |
| Screen Type | Capacitive Touchscreen |
| Display Screen | 10.1-inch display screen |
| Screen Resolution | 1280 (H) × 800 (V) |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 KHz, 16 Bit |
| Function | |
| Communication Mode | Full digital |
| Information Release | Receive and view the published information from the management center |
| Elevator Control | Residents can call the elevator through this device to their floor. |
| Leave Videos | Yes (SD card is inserted in the indoor monitor or door station) |
| DND Mode | Do not disturb period can be set |
| Number of Extensions | Villa: 1 main VTH and 9 extensions Apartment: 1 main VTH and 4 extensions |
| Expansion Module | ZigBee module Wireless 868 MHz Sensor Bluetooth module |
| Storage | Supports micro SD card storage (up to 512 GB) |
| Network | |
| Wi-Fi | Yes |
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax |
| Wireless Frequency Range | 2.4 GHz; 5 GHz |
| Port | |
| RS-485 | 1 |
| USB | 1 |
| Alarm Input | 8 channels |
| Alarm Output | 1 channel |
| Power Output | 1 port (12 V, 200 mA) |
| Door Bell | Yes (use the alarm input port) |
| Network Port | 1 x RJ45 10M/100M network port |
| 4-wire | 1 |
| Performance | |
| Casing Material | PC + ABS |
| General | |
| Appearance color | Gray |
| Power Supply | 12 VDC, 2 A PoE Standard |
| Power Adapter | Optional |
| Installation | Flush mount |
| Certifications | THERE IS |
| Accessory | Included: RS-485 and power output cable, bracket and alarm cable. Optional: Power cord |

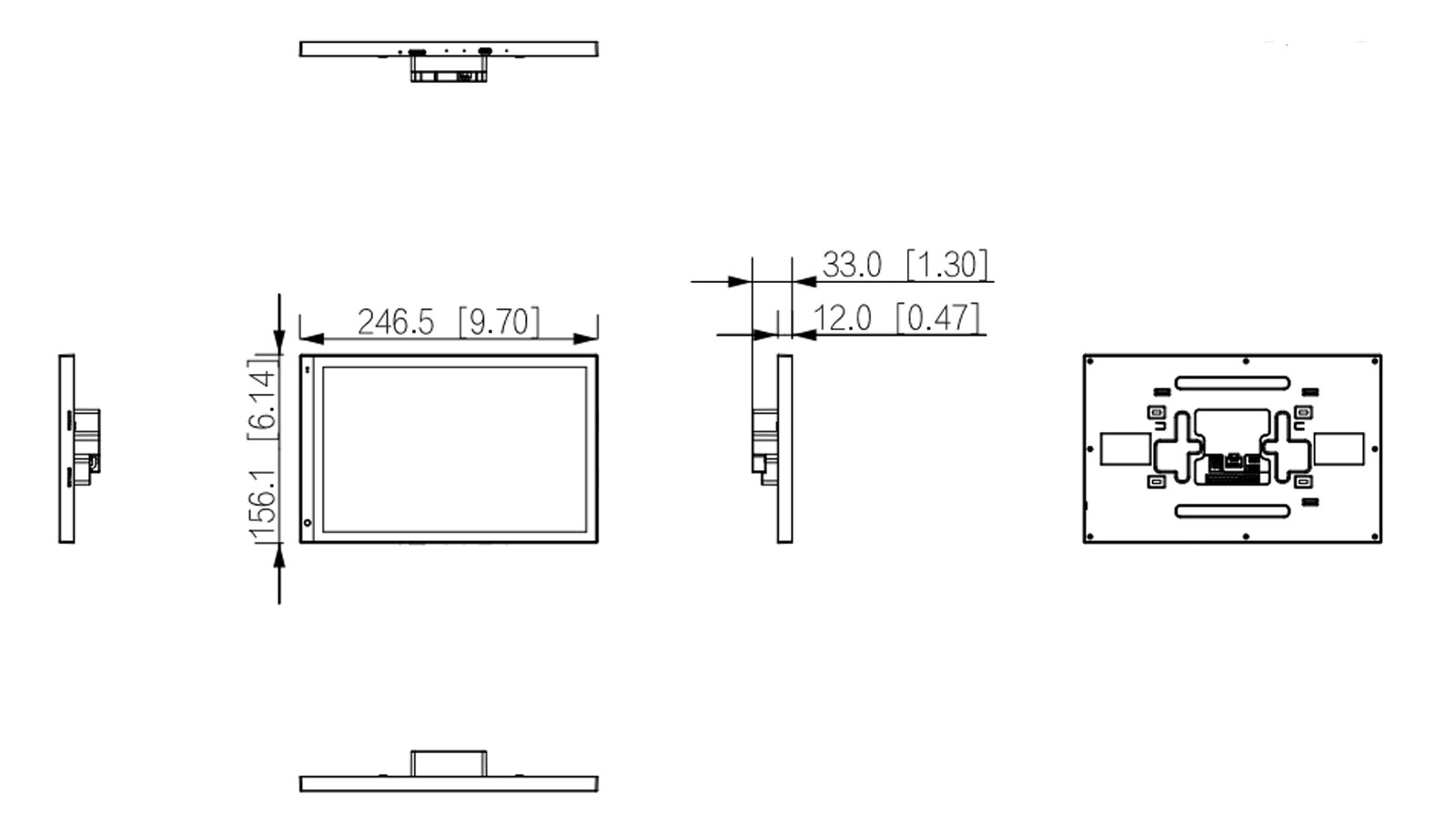

| Product Dimensions | 246.5 mm × 156.1 mm × 33.0 mm (9.70" × 6.15" × 1.30") (H × W × D) |
| Operating Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–95% (RH), non-condensing |
| Operating Altitude | Below 3,000 m (9,842.52 ft) |
| Power Consumption | ≤ 12 W (standby), ≤ 15 W (working) |
| Net Weight | 1,291 g (2.85 lb) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | 30%–75% |
| Operating Environment | Indoor |
