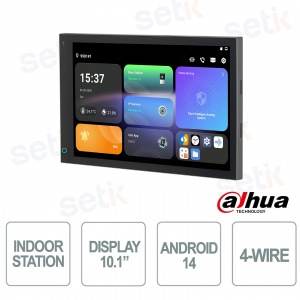

SCP3044A-BZ - is a 4-wire hybrid smart control panel with Android 14 system, designed for advanced management of video intercom, video monitoring and home alarms. Equipped with a 10.1" IPS touch screen , it offers an elegant full-screen design and a smooth user experience thanks to automatic wake-up and integrated light, temperature and humidity sensors. It supports IP, Wi-Fi and 4-wire communications, multicolor indicators and storage up to 512 GB , making it ideal for villas, apartments, hotels and offices. With functions such as elevator control, DND mode and two-way audio, it guarantees maximum efficiency and smart integration. Dahua

Technical Data Sheet

Artikel-Nr.: SCP3044A-BZ

Marke: Dahua

EAN: 6937552406162

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

SCP3044A-BZ | 4-WIRE IP SMART CONTROL PANEL


Dahua

The Dahua SCP3044A-BZ is an advanced 4-wire hybrid smart control panel designed to integrate video intercom, video surveillance, and alarm functions in a single, intuitive solution. Thanks to the Android 14 system and 10.1" IPS touchscreen display, it offers a modern, responsive user experience that can be customized via third-party apps. Ideal for villas, apartments, hotels, and offices, it guarantees maximum flexibility thanks to compatibility with IP, Wi-Fi, and 4-wire networks, automatic wake-up, and integrated brightness, temperature, and humidity sensors, which make room management even more efficient. Complete with two-way audio, multicolor indicators, and microSD support for up to 512 GB, it represents a secure, versatile, and smart home-ready solution.

Main specifications:

- 10.1" multi-touch IPS display with 1280×800 resolution

- Android 14 operating system with APK support

- IP, Wi-Fi and 4-wire communications

- Integrated light, temperature and humidity sensors

- Two-way audio with noise and echo reduction

- Automatic wake-up and multi-color LED indicators

- MicroSD support up to 512 GB

- 8 alarm inputs, 1 alarm output and 10/100 Mbps Ethernet port

Further details

System:
The panel uses a high-performance embedded processor and the modern Android 14 , ensuring smooth operation, compatibility with third-party apps (APK), advanced updates and an optimized interface for smart home and security management.

Network Protocol :
It supports a wide range of network protocols including IPv4, RTSP, UDP, DNS, FTP, RTP, TCP and SIP , ensuring maximum integration with video surveillance systems, IP communications and professional network infrastructures.
Display:
The 10.1" capacitive IPS display (1280x800) offers wide visibility with an 80° horizontal and vertical angle . Multi-touch technology and the full-screen design with ultra-thin border offer a modern, clear and intuitive experience.

Enhanced Signal :
The device integrates a brightness sensor that automatically adjusts the screen brightness, as well as temperature and humidity sensors , ensuring continuous environmental monitoring directly from the home screen. It also includes multicolored LED indicators with a “breathing light” effect for instant notifications of the device status.
Audio :
It supports two-way audio with G.711a/u and PCM compression , built-in speaker, dedicated microphone and advanced echo cancellation and digital noise reduction features, ensuring clear and professional communications.
Functions :
Equipped with full digital communication, it supports video intercom, video monitoring, information release and reception, elevator control, video recording on SD, DND – Do Not Disturb mode, automatic wake-up on passage and compatibility with ZigBee modules, Bluetooth and 868 MHz sensors .
Wi-Fi :
Built-in wireless connectivity with IEEE 802.11a/b/g/n/ac/ax standards, compatible with both 2.4 GHz and 5 GHz networks, ensuring stable, fast and interference-free transmission for all smart functions.
Doors :
Equipped with RS-485 , USB , doorbell input, 8 alarm inputs, 1 alarm output, 10/100 Mbps Ethernet port, 12V power supply and 4-wire communication support, for maximum compatibility with new and existing systems.
SCP3044A-BZ dimensions

Technical data sheet

Model SCP3044A-BZ
System
Main Processor Embedded processor
Operating System Android 14
Network Protocol IPv4;RTSP;UDP;DNS;FTP;RTP;TCP;SIP
Basic
Screen Type Capacitive Touchscreen
Display Screen 10.1-inch display screen
Screen Resolution 1280 (H) × 800 (V)
Audio Compression G.711a; G.711u; PCM
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression/digital noise reduction
Audio Bit Rate 16 KHz, 16 Bit
Function
Communication Mode Full digital
Information Release Receive and view the published information from the management center
Elevator Control Residents can call the elevator through this device to their floor.
Leave Videos Yes (SD card is inserted in the indoor monitor or door station)
DND Mode Do not disturb period can be set
Number of Extensions Villa: 1 main VTH and 9 extensions
Apartment: 1 main VTH and 4 extensions
Expansion Module ZigBee module
Wireless 868 MHz Sensor
Bluetooth module
Storage Supports micro SD card storage (up to 512 GB)
Network
Wi-Fi Yes
Wireless Standard IEEE 802.11a/b/g/n/ac/ax
Wireless Frequency Range 2.4 GHz; 5 GHz
Port
RS-485 1
USB 1
Alarm Input 8 channels
Alarm Output 1 channel
Power Output 1 port (12 V, 200 mA)
Door Bell Yes (use the alarm input port)
Network Port 1 x RJ45 10M/100M network port
4-wire 1
Performance
Casing Material PC + ABS
General
Appearance color Gray
Power Supply 12 VDC, 2 A
PoE Standard
Power Adapter Optional
Installation Flush mount
Certifications THERE IS
Accessory Included: RS-485 and power output cable, bracket and alarm cable.
Optional: Power cord
Product Dimensions 246.5 mm × 156.1 mm × 33.0 mm (9.70" × 6.15" × 1.30") (H × W × D)
Operating Temperature -10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–95% (RH), non-condensing
Operating Altitude Below 3,000 m (9,842.52 ft)
Power Consumption ≤ 12 W (standby), ≤ 15 W (working)
Net Weight 1,291 g (2.85 lb)
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity 30%–75%
Operating Environment Indoor
