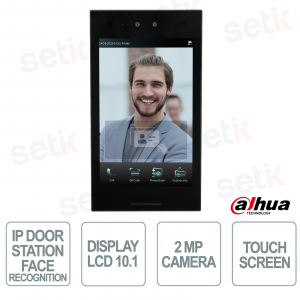

2MP Face Recognition IP Video Intercom, 10.1" Display, IP65 for Condominiums and Offices - Dahua

2MP Face Recognition IP Video Intercom, 10.1" Display, IP65 for Condominiums and Offices - Dahua

 
-57%

VTO9631Q is an IP video intercom station with advanced facial recognition ideal for condominiums and offices, equipped with a 10.1" HD touch display and 2MP dual-lens camera for clear images even in low light conditions. It offers 99.9% recognition accuracy with anti-spoofing detection and quick access in 0.2 seconds, supporting up to 200,000 users and 100,000 faces . It integrates two-way audio , multiple door opening (face, card, password and app) and smart remote management. The robust structure with IP65 protection guarantees resistance to atmospheric agents for outdoor installations. Dahua

Technical data sheet

referencia : VTO9631Q

brand : Dahua

EAN: 6937552406063

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

VTO9631Q | IP OUTDOOR STATION FOR APARTMENTS WITH FACIAL RECOGNITION

Dahua

The Dahua VTO9631Q is a professional IP video intercom with intelligent facial recognition designed for condominiums and corporate environments, equipped with a 10.1" HD touch display and a 2MP dual-lens camera for clear and detailed images. Thanks to 99.9% recognition accuracy and anti-spoofing technology, it guarantees secure and rapid access in up to 0.2 seconds. It supports up to 200,000 users and 100,000 faces , with complete management via app, control center and VTH. It integrates two-way audio and multiple opening modes (face, card, password). The IP65 protected structure ensures resistance and reliability even in outdoor environments.

Main specifications:

- 10.1" touchscreen display with 800×1280 resolution

- 2MP dual lens HD camera with WDR and IR

- 99.9% facial recognition with anti-spoofing

- Capacity up to 200,000 users and 100,000 faces

- Two-way audio with digital noise reduction

- Multiple access: face, IC card, password and app

- IP65 protection for outdoor use

Further details

✅ Display :
The system integrates a 10.1" capacitive touchscreen display with 800×1280 resolution , designed to ensure an intuitive interface and clear image viewing thanks also to the 2MP dual lens camera with video enhancement technologies such as WDR and 3D noise reduction.
✅ System :
Based on an embedded processor with a Linux operating system , it supports advanced protocols such as ONVIF, SIP, RTSP and HTTP/HTTPS , ensuring complete integration with security systems and professional IP networks.
✅ Functions:
It offers intelligent facial recognition , remote access and centralized management, with two-way audio , audio/video messaging, elevator control and multiple opening modes (face, password, card and app) for maximum flexibility.
✅ RFID :
It supports 13.56MHz IC card with ASK modulation technology, ensuring a fast and reliable identification system for access control.
✅ Performance :
It guarantees facial recognition with 99.9% accuracy and speed up to 0.2 seconds , with an operating distance of 0.3–1.5 m and anti-spoofing technology (liveness detection) for high security.
✅ Capacity :
Designed for large installations, it supports up to 200,000 users , 100,000 faces and 100,000 cards , making it ideal for condominiums and complex structures.
✅ Doors:
It has comprehensive interfaces such as RS-485, Wiegand, alarm inputs/outputs , Ethernet port and 12V DC power output , allowing integration with access control and automation systems.
✅ Alarm :
Includes advanced security systems with tamper, emergency, duress alarms and door sensors , improving protection and real-time access monitoring.

Technical data sheet

Tamper Alarm
VTO9631Q

System

Main Processor

Embedded Processor

Operating System

Embedded Linux OS

Interoperability

ONVIF; CGI

Network Protocol

RTP; SIP; DNS; SSH; RTSP; RTMP; FTP; HTTP/HTTPS; ONVIF

Basic

Screen Type

Capacitive Touchscreen

Display Screen

10.1-inch display screen

Screen Resolution

800 (H) × 1280 (V)

Room

1/2.8" 2 MP CMOS high-definition, low illumination, dual cameras

Field of View

H: 65°; V: 40°; D: 73°

WDR

DWDR

Noise Reduction

3D NR

Yes

General

Appearance Color

Black

Power Supply

12V DC, 3A

Power Adapter

Optional

Installation

Surface Mount; Flush Mount

Certifications

THERE IS

Accessory

Power supply (optional); Flush mount box (optional); Surface Mounted (optional)

Product Dimensions

294.9 mm × 162.5 mm × 25.0 mm (11.61" × 6.40" × 0.98") (H × W × D)

Protection

IP65 rated (Silicone sealant is required.)

Operating Temperature

–30 °C to +65 °C (–22 °F to +149 °F)

Operating Humidity

10%–90% (RH), no condensing

Operating Environment

Outdoor

Operating Altitude

0 m–1,300 m (0 ft–4,265.09 ft)

Power Consumption

≤ 8W (standby), ≤ 10W (working). These two values of power consumption do not contain the output power

Gross Weight

1.61 kg (3.55 lb)

Storage Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Storage Humidity

30%–75%
