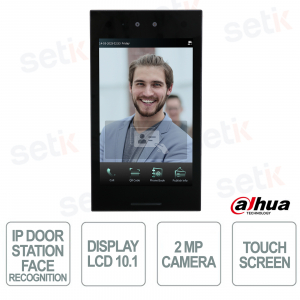

Videocitofono IP con riconoscimento facciale 2MP, display 10.1", IP65 per condomini e uffici - Dahua
VTO9631Q è una stazione videocitofonica IP con riconoscimento facciale avanzato ideale per condomini e uffici, dotata di display touch da 10.1" HD e telecamera dual lens da 2MP per immagini nitide anche in condizioni di bassa luminosità. Offre precisione di riconoscimento del 99,9% con rilevamento anti-spoofing e accesso rapido in 0,2 secondi, supportando fino a 200.000 utenti e 100.000 volti. Integra audio bidirezionale, apertura porta multipla (volto, card, password e app) e gestione remota smart. La struttura robusta con protezione IP65 garantisce resistenza agli agenti atmosferici per installazioni outdoor. Dahua
VTO9631Q | POSTAZIONE ESTERNA IP PER APPARTAMENTI CON RICONOSCIMENTO FACCIALE

Il Dahua VTO9631Q è un videocitofono IP professionale con riconoscimento facciale intelligente progettato per condomini e ambienti aziendali, dotato di display touch da 10.1" HD e telecamera dual lens da 2MP per immagini chiare e dettagliate. Grazie alla precisione di riconoscimento del 99,9% e tecnologia anti-spoofing, garantisce accessi sicuri e rapidi fino a 0,2 secondi. Supporta fino a 200.000 utenti e 100.000 volti, con gestione completa tramite app, centro di controllo e VTH. Integra audio bidirezionale e molteplici modalità di apertura (volto, card, password). La struttura con protezione IP65 assicura resistenza e affidabilità anche in ambienti esterni.
Specifiche principali:
- Display touchscreen 10.1" con risoluzione 800×1280
- Telecamera HD 2MP dual lens con WDR e IR
- Riconoscimento facciale 99,9% con anti-spoofing
- Capacità fino a 200.000 utenti e 100.000 volti
- Audio bidirezionale con riduzione rumore digitale
- Accesso multiplo: volto, IC card, password e app
- Protezione IP65 per uso esterno
Ulteriori dettagli
Scheda tecnica
| VTO9631Q | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating System |
Embedded Linux OS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF; CGI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
RTP; SIP; DNS; SSH; RTSP; RTMP; FTP; HTTP/HTTPS; ONVIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screen Type |
Capacitive Touchscreen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Display Screen |
10.1-inch display screen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screen Resolution |
800 (H) × 1280 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Camera |
1/2.8" 2 MP CMOS high-definition, low illumination, dual cameras |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
H: 65°; V: 40°; D: 73° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
DWDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Compression |
H.264; H.265 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Resolution | Main stream: 720P/D1/WVGA; Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | PAL: 25 fps; NTSC: 30 fps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | 256 kbps–4,096 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Light Compensation | Auto IR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | G.711a; G.711u; PCM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1 channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | Includes the built-in speaker and can be connected to active external speakers. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Mode | Two-way audio | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Enhancement | Echo suppression/digital noise reduction | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Bit Rate | 16 kHz, 16 bit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Mode |
Full digital |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Verification Method |
Remote; Face Recognition; Password; Card |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Auto Snapshot |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Information Release |
Receive and view text information released by the management center. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Elevator Control |
Residents and visitors can call elevators. Permissions can also be granted to access floors through access control |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Leave Videos |
Yes (SD card inserted in VTO is needed) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
Supports Micro SD card (up to 128 GB) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Web Configuration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Auto Registration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RFID |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Type |
IC card |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Modulation Type |
ASK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frequency Range |
13.56 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Transmission Power |
42 dBuA/m @10 m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Reading Distance |
0 cm–4 cm (IC card) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition Height Range |
1.2 m–2.0 m (3.94 ft–6.56 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition Distance |
0.3 m–1.5 m (0.98 ft–4.92 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition Accuracy |
99.9% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition Time |
0.2 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Tempered glass; Aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Capacity |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Capacity |
100,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Image Capacity |
100,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User Capacity |
200,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS-485 |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wiegand |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Input |
2 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Output |
2 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Output |
1 port (12 V, 700 mA) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Exit Button |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Door Status Detection |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lock Control |
1 channel, open by default |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port |
1 × 10 Mbps/100 Mbps Ethernet port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tamper Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Black |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 V DC, 3 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Adapter |
Optional |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Surface Mount; Flush Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Accessory |
Power supply (optional); Flush mount box (optional); Surface Mounted (optional) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
294.9 mm × 162.5 mm × 25.0 mm (11.61" × 6.40" × 0.98") (H × W × D) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP65 rated (Silicone sealant is required.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +65 °C (–22 °F to +149 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH), no condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Environment |
Outdoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
0 m–1,300 m (0 ft–4,265.09 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤ 8 W (standby), ≤ 10 W (working). These two values of power consumption do not contain the output power |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
1.61 kg (3.55 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–20 °C to +70 °C (–4 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
30%–75% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
