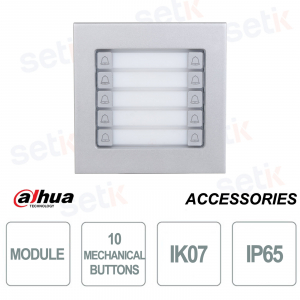

VTO4202F-MDB10 | TEN-KEY MECHANICAL MODULE

Dahua

The Dahua VTO4202F-MDB10 is an intercom module with 10 mechanical buttons ideal for multi-user video intercom systems. Designed for outdoor use, it features IP65 protection against dust and water, and IK07 protection against impact and vandalism. It is constructed of durable aluminum alloy, powered by 5VDC with low power consumption, and CE EMC and CE LVD certification for maximum security. Compact, versatile, and secure, it is perfect for residential and professional installations.

Main specifications:

- 10 sturdy mechanical buttons

- IP65 waterproof and dustproof protection

- IK07 impact resistance

- Low-power 5VDC power supply

- CE EMC and CE LVD certifications

- Operating temperature from -30°C to +60°C

Further details

Buttons:
It is equipped with 10 mechanical buttons, ideal for managing access in multi-user contexts in a practical and intuitive way, ensuring a precise and long-lasting response even after prolonged use.
IP65 protection :
The IP65 certification guarantees high protection against dust and water jets from any direction, making the device perfect for outdoor installations without the risk of malfunctions due to atmospheric agents.
IK07 protection :
The aluminum alloy body offers IK07 protection, ensuring excellent resistance to impact and vandalism, ideal for high-traffic environments.
CE EMC and CE LVD certifications:
The module complies with European regulations with CE EMC (Electromagnetic Compatibility) and CE LVD (Low Voltage Directive) certifications, ensuring safe, stable performance compatible with the main safety standards.
VTO4202F-MDB10 dimensions

Technical data sheet

Model VTO4202F-MDB10
System
Button Type Mechanical
Number of Buttons 10
Performance
Casing Material Aluminum alloy
Port
Power Output

5 VDC (provides power for other modules)

General
Appearance Color Silver
Power Supply 5 VDC (provided by other modules)
Certifications CE EMC; CE LVD
Product Dimensions 100.0 mm × 100.0 mm × 26 mm (3.94" × 3.94" × 1.02")
Protection IK07; IP65(silicone sealant is needed for installation)
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity 10%–90% (RH), non-condensing
Operating Environment Outdoor
Operating Altitude 0 m–3,000 m (0 ft–9,842.52 ft)
Power Consumption ≤0.2W (standby), ≤0.6W (working)
Gross Weight 0.33 kg (0.73 lb)
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity 30%–75% (RH)
