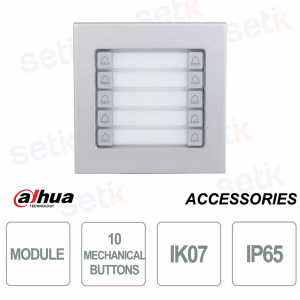

Dahua VTO4202F-MDB10 Module with 10 IP65 IK07 Buttons for Outdoors

Dahua VTO4202F-MDB10 Module with 10 IP65 IK07 Buttons for Outdoors

-57% New

VTO4202F-MDB10 - The video intercom module is equipped with 10 mechanical buttons for optimal management of multi-user access, made of shock-resistant aluminum alloy with IK07 protection and IP65 certification against dust and water; it guarantees flush-mounted or wall-mounted installation, very low energy consumption up to 0.6W, 5VDC power supply and a wide operating temperature range from -30°C to +60°C, with CE EMC and CE LVD certifications for maximum safety and reliability in residential and professional contexts Dahua

Technical Data Sheet

Reference: VTO4202F-MDB10

Brand: Dahua

EAN: 6939554936784

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

VTO4202F-MDB10 | TEN-KEY MECHANICAL MODULE

Dahua

The Dahua VTO4202F-MDB10 is an intercom module with 10 mechanical buttons ideal for multi-user video intercom systems. Designed for outdoor use, it features IP65 protection against dust and water, and IK07 protection against impact and vandalism. It is constructed of durable aluminum alloy, powered by 5VDC with low power consumption, and CE EMC and CE LVD certification for maximum security. Compact, versatile, and secure, it is perfect for residential and professional installations.

Main specifications:

- 10 sturdy mechanical buttons

- IP65 waterproof and dustproof protection

- IK07 impact resistance

- Low-power 5VDC power supply

- CE EMC and CE LVD certifications

- Operating temperature from -30°C to +60°C

Further details

Buttons:
It is equipped with 10 mechanical buttons, ideal for managing access in multi-user contexts in a practical and intuitive way, ensuring a precise and long-lasting response even after prolonged use.
IP65 protection :
The IP65 certification guarantees high protection against dust and water jets from any direction, making the device perfect for outdoor installations without the risk of malfunctions due to atmospheric agents.
IK07 protection :
The aluminum alloy body offers IK07 protection, ensuring excellent resistance to impact and vandalism, ideal for high-traffic environments.
CE EMC and CE LVD certifications:
The module complies with European regulations with CE EMC (Electromagnetic Compatibility) and CE LVD (Low Voltage Directive) certifications, ensuring safe, stable performance compatible with the main safety standards.

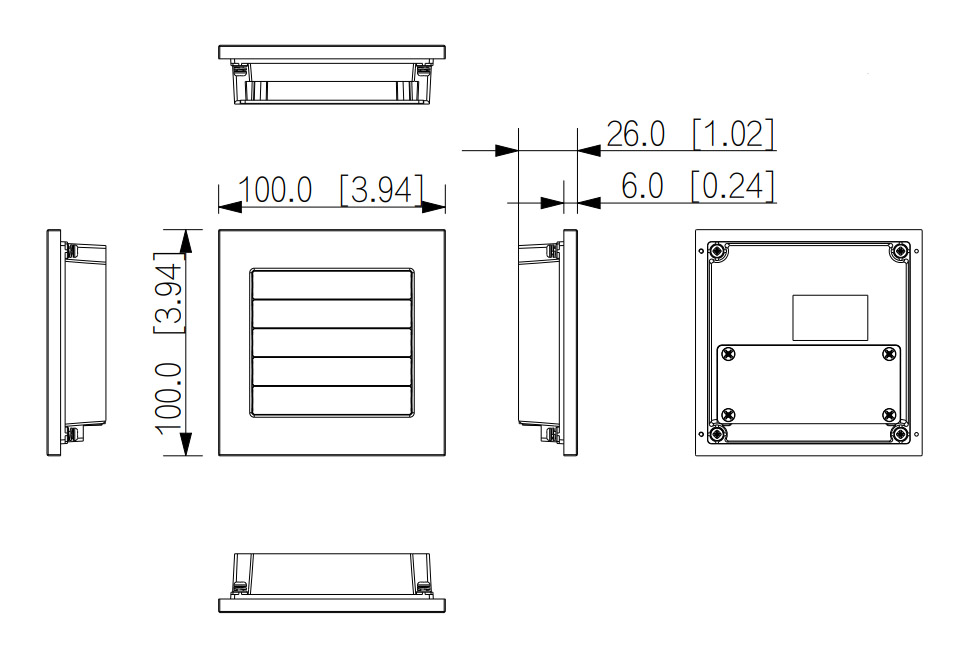

VTO4202F-MDB10 dimensions

Technical data sheet

Model VTO4202F-MDB10
System
Button Type Mechanical
Number of Buttons 10
Performance
Casing Material Aluminum alloy
Port
Power Output

5 VDC (provides power for other modules)

General
Appearance Color Silver
Power Supply 5 VDC (provided by other modules)
Certifications CE EMC; CE LVD
Product Dimensions 100.0 mm × 100.0 mm × 26 mm (3.94" × 3.94" × 1.02")
Protection IK07; IP65(silicone sealant is needed for installation)
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity 10%–90% (RH), non-condensing
Operating Environment Outdoor
Operating Altitude 0 m–3,000 m (0 ft–9,842.52 ft)
Power Consumption ≤0.2W (standby), ≤0.6W (working)
Gross Weight 0.33 kg (0.73 lb)
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity 30%–75% (RH)
