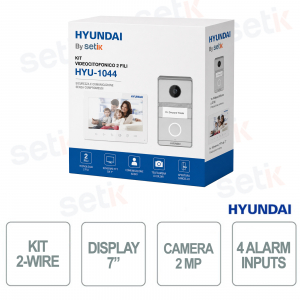

2-Wire Video Intercom Kit with 7" Monitor, 2MP HD Camera, IP65 IK07, and Night Vision - Hyundai

2-Wire Video Intercom Kit with 7" Monitor, 2MP HD Camera, IP65 IK07, and Night Vision - Hyundai

 
nuevo

The HYU-1044 2-wire video intercom kit is a simple and economical Plug & Play solution, ideal for residential and professional installations, equipped with a 7” TFT display with 1024x600 resolution for clear and intuitive viewing. It integrates a 2MP HD camera with fisheye lens and white light night vision , ensuring clear images even in the dark. The system includes two-way audio with a built-in microphone and speaker and advanced features such as WDR and one-touch calling . Designed for outdoor use, it offers IP65 protection and IK07 resistance against atmospheric agents and vandalism. It also features alarm inputs and lock control with dedicated relays , ensuring complete security and access management. Hyundai

Technical Data Sheet

referencia : HYU-1044

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HYU-1044 | TWO-WIRE KIT WITH INDOOR IP MONITOR AND 2-WIRE VIDEO INTERCOM


Dahua

The Hyundai HYU-1044 2-wire video intercom kit is a complete Plug&Play solution for access control, equipped with a 7” TFT monitor (1024x600) that guarantees clear images and intuitive use. The 2MP HD camera with fisheye lens offers a wide viewing angle and, thanks to night vision with white light and WDR technology , ensures visibility even in difficult conditions. The system integrates two-way audio with microphone and speaker for clear and immediate communications. Designed for outdoors, it features IP65 protection and IK07 resistance , ensuring reliability over time. It also includes alarm inputs and lock control with dedicated relays , making it ideal for residential and professional applications.

Main specifications:

- 7” TFT monitor with 1024x600 resolution

- 2MP fisheye HD camera with wide viewing angle

- Night vision with white light and WDR technology

- Two-way audio with built-in microphone and speaker

- IP65 protection and IK07 vandal resistance

- Alarm and relay inputs for electric lock control

Further details

✅ Two-branch system:

2-wire two-wire system designed for simple installations and retrofits, allowing you to use existing wiring, reducing installation time and costs .

✅ Plug & Play:
Plug&Play technology that allows immediate configuration without complex programming, ideal for quick and professional installations.
✅ Display:
7" color TFT with 1024x600 resolution provides clear and detailed images for optimal visual access control.
✅ Microphone & Speakers :
Built-in omnidirectional microphone and speaker for smooth, high-quality two-way audio communication in residential and professional environments.
✅ Camera:
2MP HD color camera with clear vision and night vision support, ideal for clear identification even in low light conditions.
✅ One-touch calling:
One-touch calling with identification plate that simplifies use by allowing immediate and intuitive communication with the internal station.
✅ 2 door lock relays:
2 door lock relays for direct control of electric locks, offering secure and system-integrated access management.
✅ Alarm :
4 configurable alarm inputs for integration with security systems, enabling advanced notifications and automation for access control.

Technical data sheet

HYU-1044
Specifications
1x 2-wire video intercom
HYUNDAI video intercom external unit suitable for outdoor use
1x call button
Night vision with white light supplement
WDR Backlight
Built-in omnidirectional microphone and speaker
Adjustable volume
Tamper-proof tamper
4 alarm inputs
2 exit request buttons
2 inputs for door contacts
2 door lock control ports
12V/1A power interface for door lock power supply
Power supply: 48V DC, 0.5A
Power consumption: ≤12W
Operating temperature from -30°C to +60°C
Operating relative humidity 10% ~ 90% (non-condensing)
IP65 protection rating
IK07 vandal-proof protection
Dimensions: 82 (W) x 150 (H) x 23.5 mm
Operating humidity: 10% ~ 90%
Indoor installation environment
Dimensions: 200 (W) x 140 (H) x 15.1 mm
Surface installation
7" TFT screen (1024x600)
6 touch buttons
Omnidirectional microphone and built-in speaker
Adjustable volume
Power supply: 48V DC
Power consumption: ≤5W
Operating temperature from -10°C to +55°C
Operating relative humidity 10% ~ 90% (non-condensing)
Indoor installation environment
Dimensions: 187 (W) x 137 (H) x 25.4 mm
Surface mount
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
