The HYU-1044 2-wire video intercom kit is a simple and economical Plug & Play solution, ideal for residential and professional installations, equipped with a 7” TFT display with 1024x600 resolution for clear and intuitive viewing. It integrates a 2MP HD camera with fisheye lens and white light night vision , ensuring clear images even in the dark. The system includes two-way audio with a built-in microphone and speaker and advanced features such as WDR and one-touch calling . Designed for outdoor use, it offers IP65 protection and IK07 resistance against atmospheric agents and vandalism. It also features alarm inputs and lock control with dedicated relays , ensuring complete security and access management. Hyundai

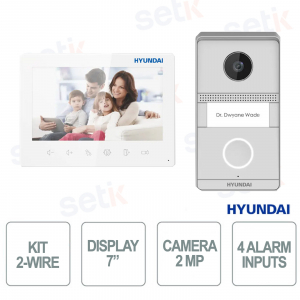

HYU-1044 | TWO-WIRE KIT WITH INDOOR IP MONITOR AND 2-WIRE VIDEO INTERCOM

The Hyundai HYU-1044 2-wire video intercom kit is a complete Plug&Play solution for access control, equipped with a 7” TFT monitor (1024x600) that guarantees clear images and intuitive use. The 2MP HD camera with fisheye lens offers a wide viewing angle and, thanks to night vision with white light and WDR technology , ensures visibility even in difficult conditions. The system integrates two-way audio with microphone and speaker for clear and immediate communications. Designed for outdoors, it features IP65 protection and IK07 resistance , ensuring reliability over time. It also includes alarm inputs and lock control with dedicated relays , making it ideal for residential and professional applications.
Main specifications:
- 7” TFT monitor with 1024x600 resolution
- 2MP fisheye HD camera with wide viewing angle
- Night vision with white light and WDR technology
- Two-way audio with built-in microphone and speaker
- IP65 protection and IK07 vandal resistance
- Alarm and relay inputs for electric lock control
Further details
2-wire two-wire system designed for simple installations and retrofits, allowing you to use existing wiring, reducing installation time and costs .
7" color TFT with 1024x600 resolution provides clear and detailed images for optimal visual access control.
Technical data sheet
| HYU-1044 |
| Specifications |
| 1x 2-wire video intercom |
| HYUNDAI video intercom external unit suitable for outdoor use |
| 1x call button |
| Night vision with white light supplement |
| WDR Backlight |
| Built-in omnidirectional microphone and speaker |
| Adjustable volume |
| Tamper-proof tamper |
| 4 alarm inputs |
| 2 exit request buttons |
| 2 inputs for door contacts |
| 2 door lock control ports |
| 12V/1A power interface for door lock power supply |
| Power supply: 48V DC, 0.5A |
| Power consumption: ≤12W |
| Operating temperature from -30°C to +60°C |
| Operating relative humidity 10% ~ 90% (non-condensing) |
| IP65 protection rating |
| IK07 vandal-proof protection |
| Dimensions: 82 (W) x 150 (H) x 23.5 mm |
| Operating humidity: 10% ~ 90% |
| Indoor installation environment |
| Dimensions: 200 (W) x 140 (H) x 15.1 mm |
| Surface installation |
| 7" TFT screen (1024x600) |
| 6 touch buttons |
| Omnidirectional microphone and built-in speaker |
| Adjustable volume |
| Power supply: 48V DC |
| Power consumption: ≤5W |
| Operating temperature from -10°C to +55°C |
| Operating relative humidity 10% ~ 90% (non-condensing) |
| Indoor installation environment |
| Dimensions: 187 (W) x 137 (H) x 25.4 mm |
| Surface mount |
