Dahua KTX01 2-Wire Wi-Fi Video Intercom: Complete Smart Kit with Touch Monitor, App, and IP65 Security
KTX01S - The video intercom is the ideal solution for smart home security: 7" HD touchscreen, two-way audio with app calls and video recording on SD card. Aluminum outdoor station with 2MP wide-angle camera, night vision and IP65 tamper-proofing. Supports remote door opening and integration with HDCVI cameras. Complete kit with Wi-Fi monitor, villa station and 2-wire controller for simple and secure installation. Designed for high performance from -40°C to +60°C. Dahua technology for total control, always connected. Dahua
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
KTX01S | VIDEO DOOR PHONE KIT

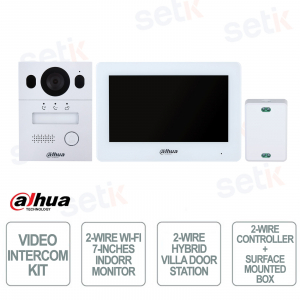

The Dahua KTX01S Wi-Fi video intercom with 2-wire technology guarantees advanced security and maximum convenience for every home, with a 7" touchscreen monitor, app management and remote door opening. The complete kit includes an internal monitor, an outdoor station with a 2MP camera and a compact controller, ideal for simple and reliable installations.
Main specifications:
- 7” high definition TFT touch screen
- Two-way audio communication via app
- 2MP outdoor camera with night vision
- IP65/IK07 tamper-proof for outdoor use
- Notifications and video recordings directly on the app
- Simple and safe 2-wire installation
Further details
- 7" HD Touch Display : 7” TFT capacitive screen with 1024x600 resolution for sharp images and immediate touch response.
- Advanced Two-Way Audio : Half-duplex communication with VTO and full-duplex via mobile app, with digital noise reduction and echo cancellation.
- Video and Photo Recording : Supports recording and snapshots on microSD up to 64GB, ideal for monitoring entrances even when away.
- Alarm Inputs and Outputs : 6 alarm inputs, 1 output, complete management of external sensors.
- Built-in Wi-Fi : Stable 2.4GHz wireless connection with support for b/g/n protocols.
- Do Not Disturb Mode : Customize DND schedules to avoid unwanted interruptions.
- Low Power Consumption : Only 2.5W in standby, maximum 10W in operation.
- 2MP Wide Angle Camera : 1/2.8” CMOS sensor with H110°/V60° viewing angle, high image quality.
- Automatic Night Vision : Built-in IR illumination for optimal visibility even at night.
- Tamper-proof and Double Security : Anti-tear alarm, main and secondary lock management.
- IP65/IK07 Protection : Water, dust and vandal resistant, perfect for outdoor use.
- Recordable Video Messages : Ability to leave video messages in case of unanswered calls.
- Power supply via 2-wire controller : Easy installation with reduced wiring.
- Easy Signal Management : Converts signal from IP to 2-wire while maintaining stable video/audio quality.
- Compact and Lightweight : Small size (65x46x23 mm) for discreet installation.
- Low Power Consumption : Maximum consumption 3.5W with 48VDC power supply.
- CE and FCC Certifications : Complies with international safety standards.
- Extended Operating Temperature : Operates from -10°C to +55°C ensuring stability even in adverse weather conditions.
Technical data sheet
KIT: KTX01S | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VTO2003F |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Button Type |
Mechanical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room |
1/2.8" 2 MP CMOS HDR Camera |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
H: 110°; V: 60° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
DWDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Resolution |
P: 960 (H) × 576 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
P: 25 fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Light Compensation |
Auto IR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Auto(ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wi-Fi |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless Standard |
IEEE802.11b/802.11g/802.11n |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless Frequency Range |
2.4 GHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
Micro SD card (up to 64 GB) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input |
6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Output |
1 (12 V, 200 mA) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Door Bell |
Yes (use the alarm input port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material |
PC + ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Appearance Color |
White |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
2-wire controller |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Surface Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE; FCC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
130 mm × 189 mm × 23.9 mm (5.12" × 7.44" × 0.94") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–10 °C to +55°C (14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude |
0 m–3000 m (0 ft – 4265.09 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
≤ 2.5W(standby), ≤10W(working) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.633 kg (1.40 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–40 °C to +70°C (–40 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VTNC1003C |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material |
PC + ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Appearance Color |
White |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
48 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE; FCC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Accessory |
Included: Line termination terminal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
65.2 mm × 46.2 mm × 23.2 mm (2.57" × 1.82" × 0.91") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–10 °C to +55°C (14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude |
0 m–3000 m (0 ft – 4265.09 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
3.5 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.13 kg (0.29 lb) |
