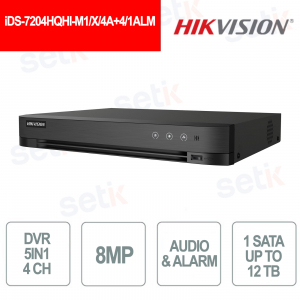

iDS-7204HQHI-M1/X/4A+4/1ALM – 4-CHANNEL DVR WITH AUDIO SUPPORT 8MP AND AI

Hikvision

iDS-7204HQHI-M1/X/4A+4/1ALM - DVR is a high-performance 4-channel hybrid digital video recorder designed for advanced video surveillance systems. It supports HDTVI, AHD, HDCVI, CVBS and IP cameras up to 8MP, offering compatibility and installation flexibility. With built-in artificial intelligence, it can accurately detect people and vehicles, reducing false alarms. H.265 Pro+ technology ensures efficient video compression with bandwidth and storage space savings. The intuitive interface, remote support via Hik-Connect and quick search functions make this DVR the ideal solution for professional security systems.


Further details

AcuSense Series with integrated AI for human and vehicle detection
5-in-1 support: HDTVI, AHD, HDCVI, CVBS analog and IP
Up to 4 BNC channels + 6 IP channels (expandable)
 H.265 Pro+ compression for bandwidth and space savings
Intelligent fast search based on AI events
Up to 1 SATA HDD up to 10TB
2 simultaneous video outputs: HDMI (up to 4K) + VGA
Audio on all channels BNC + RCA in/out
1 RJ45 10/100Mbps port for network access
Remote access via Hik-Connect App, browser and iVMS software
USB 2.0 + USB 3.0 for fast backup
AI-powered intrusion and line crossing detection
Perimeter protection, advanced alarm filtering
Event management: motion detection, video disconnection, masking
Compact design, desktop mounting
iDS-7204HQHI-M1-XT-4A+4-1ALM dimensions

Technical data sheet

Model iDS-7204HQHI-M1/X/4A+4/1ALM
Facial Recognition
Face Picture Comparison

Face picture comparison, face picture search;
2-ch face picture comparison alarm (HD analog camera)

Face Picture Library Up to 16 face picture libraries
Perimeter Protection
Human/Vehicle Analysis Up to 4-ch
Video and Audio
IP Video Input 2-ch (up to 6-ch),
Up to 8 MP resolution
IP enhanced mode on:
4-ch (up to 8-ch), each up to 4 Mbps
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input 4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output 1-ch, 2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz,
HDMI/VGA simultaneous output
VGA Output 1-ch, 1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz,
HDMI/VGA simultaneous output
CVBS Input PAL/NTSC
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback 4-ch
HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 × 1665)@25/20 fps,3K(3328x1504)@20fps,5MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30fps, 720P@25/30fps
AHD Input 5MP(2560×1944)@20fps, 4MP(2560×1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
HDCVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2880 × 1620)@25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
Audio Input 4-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable;1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ),4-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.
Substream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate 32Kbps to 10Mbps
Dual stream Support main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64Kbps
Network
Total Bandwidth 96Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection 32
Network Interface 1, RJ45 10/100Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity up to 12 TB capacity for each disk
Serial Interface RS-485 (half duplex)
USB Interface Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0
Alarm In/Out N/A (optional to support);4/1
General
Power Supply 12VDC, 1.5A
consumption ≤ 10W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimensions 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
Weight ≤ 1.16kg (2.6lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
