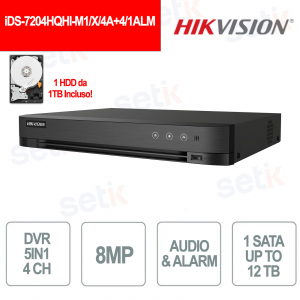

AcuSense 8MP 4-Channel DVR with AI, H.265 Pro+, Vehicle/Human Detection and Remote Access - Hikvision

AcuSense 8MP 4-Channel DVR with AI, H.265 Pro+, Vehicle/Human Detection and Remote Access - Hikvision

BEST PRICE -35% New

iDS-7204HQHI-M1/X/4A+4/1ALM - AcuSense Series 4-Channel DVR with 5-technology support (TVI/AHD/CVI/CVBS/IP), up to 8MP resolution and advanced AI functions for human and vehicle detection. H.265 Pro+ compression, intelligent analysis with quick search for security events. HDMI/VGA outputs, audio on all channels, 1 SATA port up to 10TB. Ideal for high-performance professional video surveillance systems. Compatible with Hik-Connect and remotely manageable.

Technical Data Sheet



Reference: iDS-7204HQHI-M1/X/4A+4/1ALM

Brand: Hikvision

EAN: 6942160473857

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

iDS-7204HQHI-M1/X/4A+4/1ALM – 4-CHANNEL DVR WITH AUDIO SUPPORT 8MP AND AI

Hikvision

iDS-7204HQHI-M1/X/4A+4/1ALM - DVR is a high-performance 4-channel hybrid digital video recorder designed for advanced video surveillance systems. It supports HDTVI, AHD, HDCVI, CVBS and IP cameras up to 8MP, offering compatibility and installation flexibility. With built-in artificial intelligence, it can accurately detect people and vehicles, reducing false alarms. H.265 Pro+ technology ensures efficient video compression with bandwidth and storage space savings. The intuitive interface, remote support via Hik-Connect and quick search functions make this DVR the ideal solution for professional security systems.


Further details

AcuSense Series with integrated AI for human and vehicle detection
5-in-1 support: HDTVI, AHD, HDCVI, CVBS analog and IP
Up to 4 BNC channels + 6 IP channels (expandable)
 H.265 Pro+ compression for bandwidth and space savings
Intelligent fast search based on AI events
Up to 1 SATA HDD up to 10TB
2 simultaneous video outputs: HDMI (up to 4K) + VGA
Audio on all channels BNC + RCA in/out
1 RJ45 10/100Mbps port for network access
Remote access via Hik-Connect App, browser and iVMS software
USB 2.0 + USB 3.0 for fast backup
AI-powered intrusion and line crossing detection
Perimeter protection, advanced alarm filtering
Event management: motion detection, video disconnection, masking
Compact design, desktop mounting

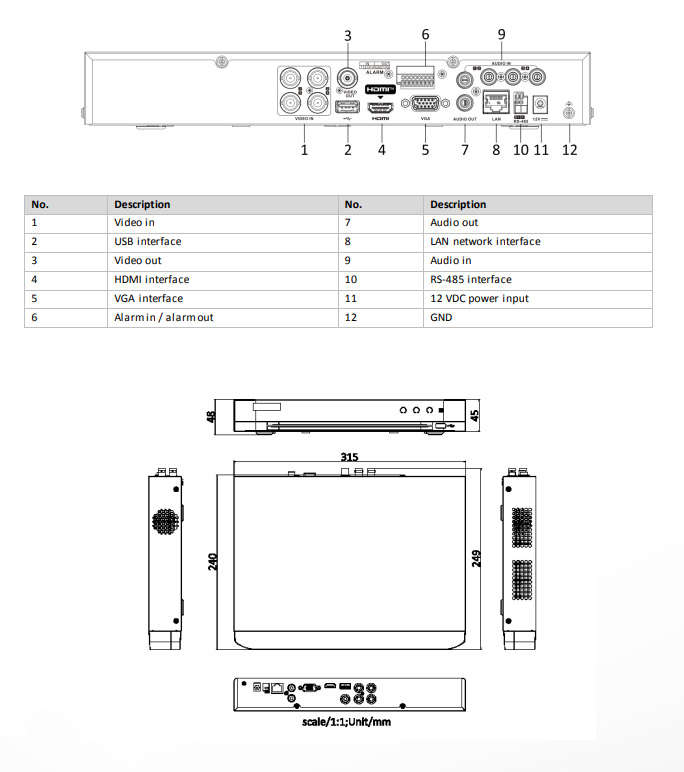

iDS-7204HQHI-M1-XT-4A+4-1ALM dimensions

Technical data sheet

Model iDS-7204HQHI-M1/X/4A+4/1ALM
Facial Recognition
Face Picture Comparison

Face picture comparison, face picture search;
2-ch face picture comparison alarm (HD analog camera)

Face Picture Library Up to 16 face picture libraries
Perimeter Protection
Human/Vehicle Analysis Up to 4-ch
Video and Audio
IP Video Input 2-ch (up to 6-ch),
Up to 8 MP resolution
IP enhanced mode on:
4-ch (up to 8-ch), each up to 4 Mbps
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input 4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output 1-ch, 2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz,
HDMI/VGA simultaneous output
VGA Output 1-ch, 1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz,
HDMI/VGA simultaneous output
CVBS Input PAL/NTSC
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback 4-ch
HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 × 1665)@25/20 fps,3K(3328x1504)@20fps,5MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30fps, 720P@25/30fps
AHD Input 5MP(2560×1944)@20fps, 4MP(2560×1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
HDCVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2880 × 1620)@25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
Audio Input 4-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable;1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ),4-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.
Substream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate 32Kbps to 10Mbps
Dual stream Support main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64Kbps
Network
Total Bandwidth 96Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection 32
Network Interface 1, RJ45 10/100Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity up to 12 TB capacity for each disk
Serial Interface RS-485 (half duplex)
USB Interface Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0
Alarm In/Out N/A (optional to support);4/1
General
Power Supply 12VDC, 1.5A
consumption ≤ 10W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimensions 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
Weight ≤ 1.16kg (2.6lb)
