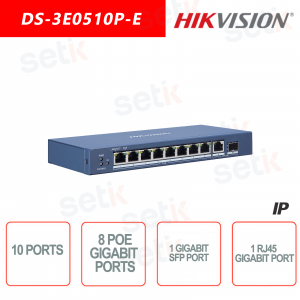

Commutateur Hikvision 10 ports ~ 8 ports PoE Gigabit - 1 port RJ45 Gigabit ~ 1 commutateur réseau de port fibre optique SFP
Le DS-3E0510P-E de Hikvision est un commutateur réseau 10 ports, 8 ports PoE Gigabit (IEEE 802.3af, IEEE 802.3at) , 1 port RJ45 Gigabit , 1 port fibre optique SFP Gigabit, métal, conception sans ventilateur.
SOLDES MONSTRES ×
SOLDES MONSTRES!
Profitez de nos offres de sortie incontournables.
Découvrez la promo >>

INTERRUPTEUR RÉSEAU 10 PORTS ETHERNET - 8 Ports PoE GIGABIT - 1 PORT GIGABIT RJ45 - 1 Port Fibre Optique GIGABIT SFP - HIKVISION
Commutateur Ethernet - Hikvision10 ports Ethernet - 8 ports PoE GIGABIT - 1 port RJ45 GIGABIT - 1 port fibre optique SFP Gigabit - Adresse Mac 4K - Capacité de commutation 20 Gbps
Détails du produit
- Commutateur réseau - Hikvision
- 10 ports Ethernet
- 8 ports PoE GIGABIT
- 1 port RJ45 GIGABIT
- 1 port fibre optique SFP
- Normes prises en charge: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
- Normes PoE prises en charge: IEEE 802.3af, IEEE 802.3at
- Gestion de l'alimentation PoE
- Accès au réseau Gigabit
- Protection 6KV pour les ports PoE
- Envoyer à une vitesse de transmission filaire et une conception non bloquante
- Métal - sans ventilateur
- Dimensions: 217,6 mm × 27,8 mm × 108,55 mm (8,6 "× 1,1" × 4,3 ")
Fiche technique
| Modèle | DS-3E0510P-E |
| Paramètres réseau | |
| Numéro de port | 8 ports PoE Gigabit, 1 port RJ45 Gigabit et 1 port fibre optique Gigabit SFP |
| Type de port | Port RJ45, duplex intégral, adaptatif MDI / MDI-X |
| la norme | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z |
| Mode de transfert | Commutation Store-and-Forward |
| Table d'adresses MAC | 4 K |
| Capacité de commutation | 20 Gbit / s |
| Taux de transfert de paquets | 14,88 Mpps |
| Cache interne | 1,5 Mbits |
| Alimentation PoE | |
| PoE standard | IEEE 802.3af, IEEE 802.3at |
| Broche d'alimentation PoE | Prise en charge d'une alimentation à 4 cœurs et un câble Ethernet 1/2/3/6 fournit une alimentation. |
| Port PoE | Ports 1 à 8 |
| Puissance de port max. | 30 W |
| Budget d'alimentation PoE | 110 W |
| Consommation maximale | 120 W |
| Général | |
| coquille | Matériau métallique, conception sans ventilateur |
| Poids brut | 1,4 kg (3,09 livres) |
| Poids net | 0,6 kg (1,32 livre) |
| Dimension (L × H × D) | 217,6 mm × 27,8 mm × 108,55 mm (8,6 "× 1,1" × 4,3 ") |
| Température de fonctionnement | -10 ° C à 55 ° C (14 ° F à 131 ° F) |
| Températures de stockage | -40 ° C à 85 ° C (-40 ° F à 185 ° F) |
| Humidité d'exploitation | 5% à 95% (sans condensation) |
| Humidité de stockage | 5% à 95% (sans condensation) |
| Source de courant | 48 V CC, 2,5 A |
| Consommation électrique en veille | 10 W |
